4G6 ENGINE (E-W) -
Cylinder Head and Valves
11A-9-4
A
C
"

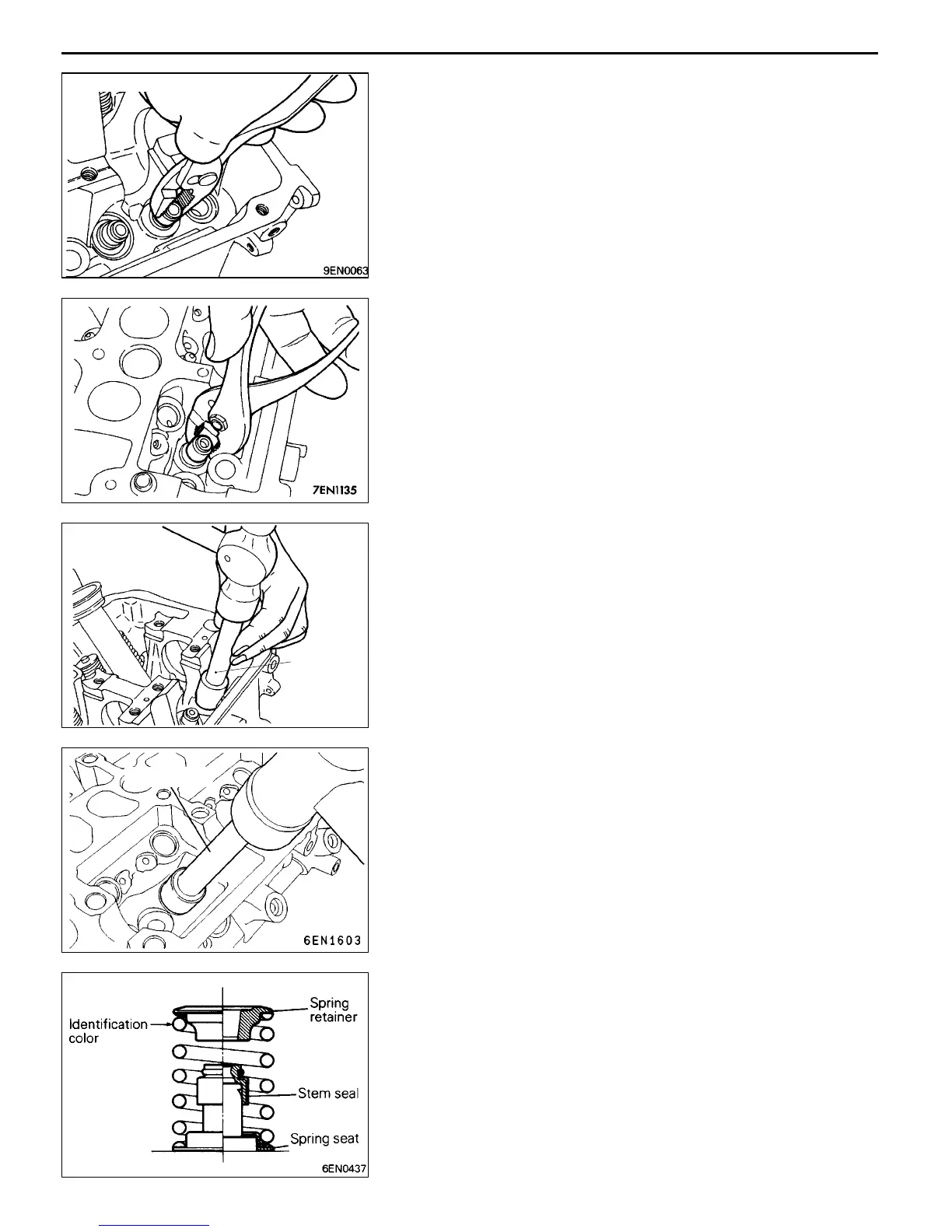

VALVE STEM SEAL REMOVAL
(1) Do not reuse removed stem seal.
INSTALLATION SERVICE POINTS
"
A
A
VALVE STEM SEAL INSTALLATION
(1) Install the valve spring seat.
(2) The special tool must be used to install the valve stem
seal. Improper installation could result in oil leaks past
the valve guide.
Caution
D
Do not reuse removed valve stem seals.
"
B
A
VALVE SPRING INSTALLATION
(1) Direct the valve spring end with identification color toward
the spring retainer.
RevisedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
9EN0065
MD998774
MD998737
To Next Page
