Mitsubishi 4G6 series

4G6 ENGINE (E-W) -
Front Case, Counterbalance Shafts and Oil Pan
11A-10-1

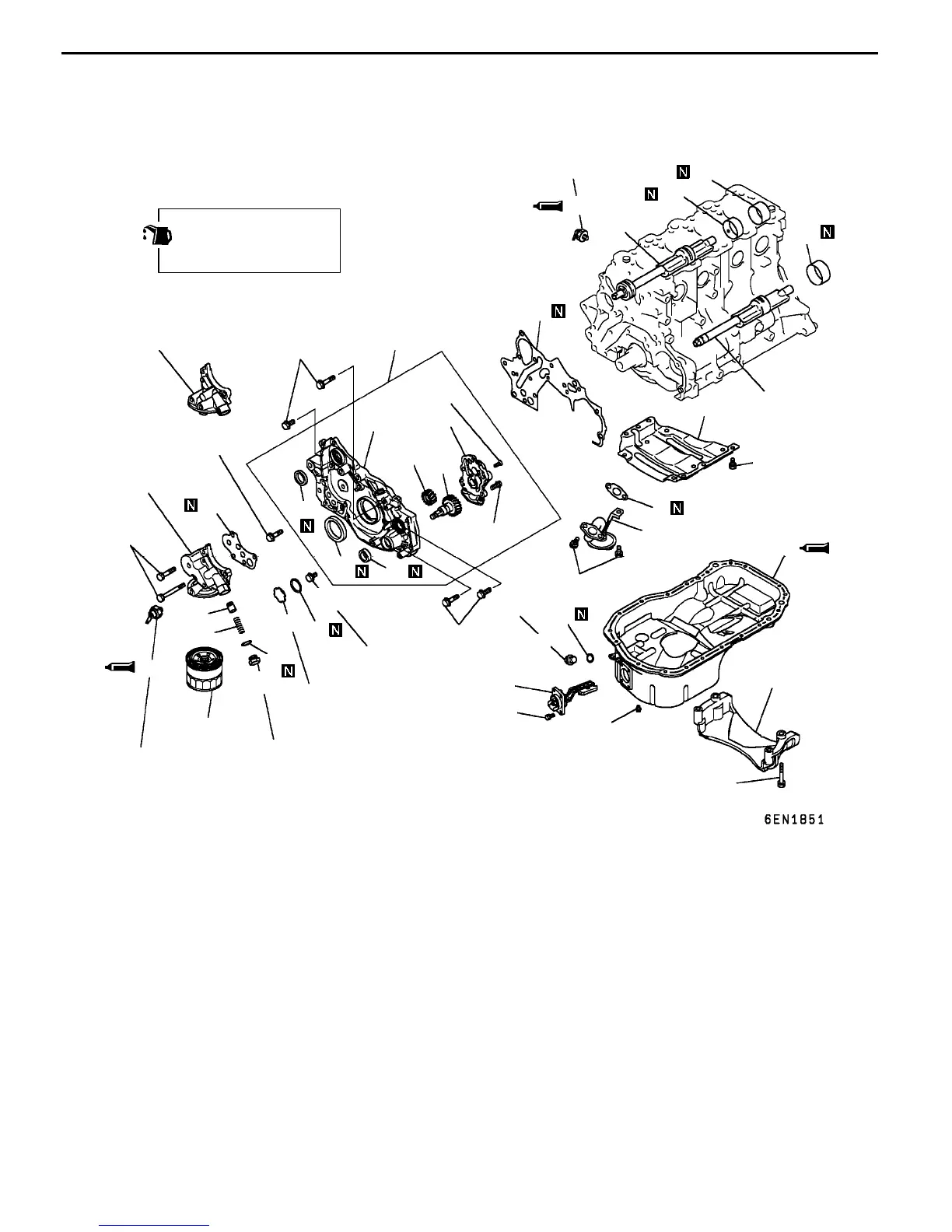

10. FRONT CASE, COUNTERBALANCE SHAFTS AND OIL PAN
REMOVAL AND INSTALLATION <GDI ENGINE - VEHICLE FOR EUROPE AND
SOHC ENGINE>
3
4
5
32
13
28
29
31
33
2
23 Nm
16 Nm
19 Nm
39 Nm
7
21 Nm
8
9.8 Nm
18 Nm
44 Nm
18
19
26
23 Nm
27
1
23
22
24
Apply engine oil to all
moving parts before
installation.
21
6.9 Nm
14
16
15
36 Nm
11
25
6
9
10
23 Nm
18 Nm
20
21 Nm
12
9.8 Nm
17
18
13
30
(SOHC)
(GDI)
(4G64)
(4G63)
23 Nm
8.8 Nm
Removal steps
"OA 1. Oil filter
2. Drain plug
"NA 3. Drain plug gasket
4. Oil level sensor
(Vehicle for Europe)
5. Transmission stay (GDI engine)
AA""LA 6. Oil pan
7. Oil screen
8. Oil screen gasket
9. Stiffener (SOHC engine - vehicle
for Europe)
AD""KA 10. Plug
11. O-ring
AE""JA 12. Flange bolt
"IA 13. Oil pressure switch
14. Relief plug
15. Relief plug gasket
16. Relief spring
17. Relief plunger
18. Oil filter bracket
19. Oil filter bracket gasket
"HA 20. Front case assembly
21. Front case gasket
22. Oil pump cover
"GA 23. Oil pump driven gear
"GA 24. Oil pump drive gear
"FA 25. Crankshaft front oil seal
"EA 26. Oil pump oil seal
"DA 27. Counterbalance shaft oil seal
28. Front case
29. Counterbalance shaft, left
30. Counterbalance shaft, right
AF""CA 31. Counterbalance shaft front bearing
AG""BA 32. Counterbalance shaft rear bearing,
left
AG""AA 33. Counterbalance shaft rear bearing,
right
RevisedPWEE9616-B
E
Aug. 1999Mitsubishi Motors Corporation
