4G6 ENGINE (E-W) -
Intake Manifold (GDI)
11A-3a-1
3a. INTAKE MANIFOLD (GDI)

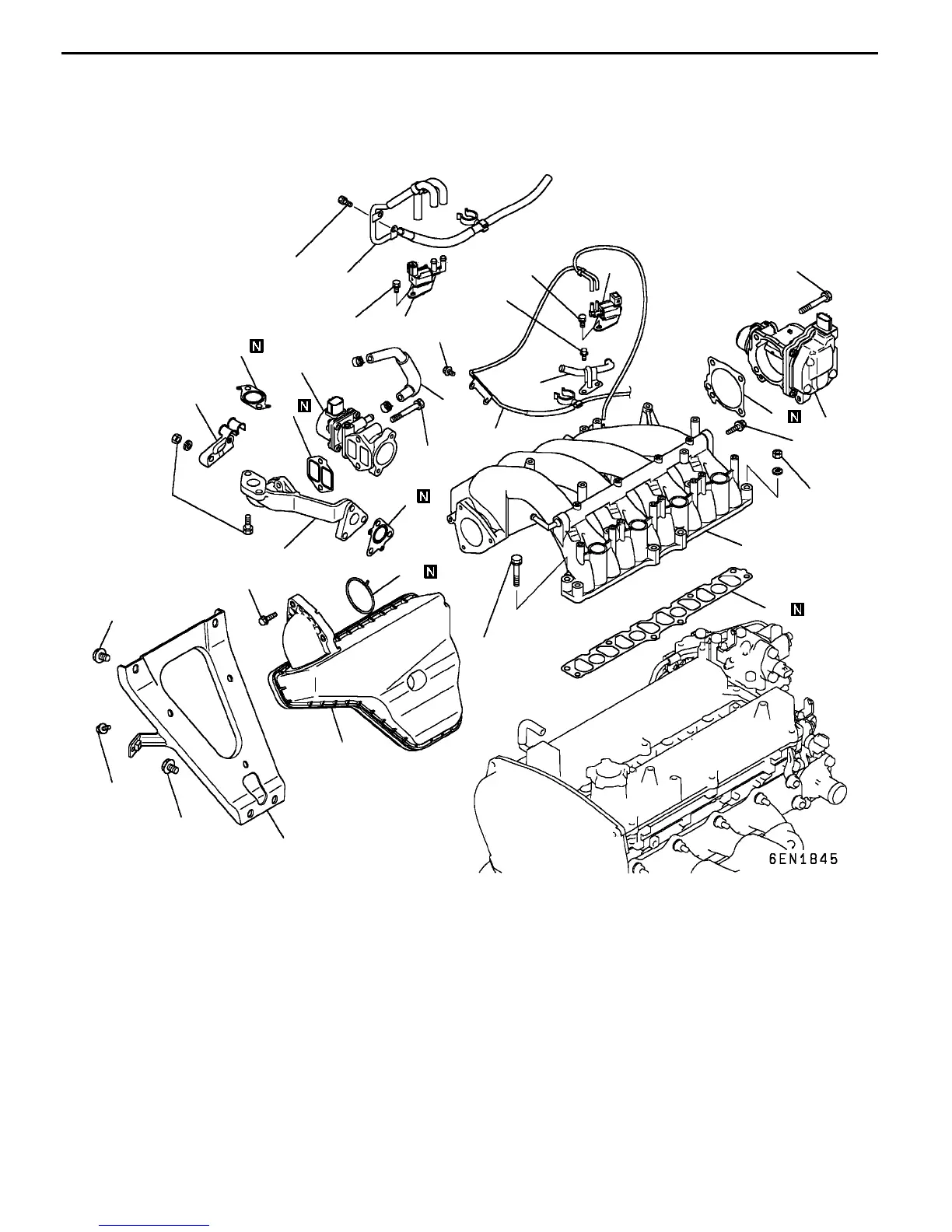

REMOVAL AND INSTALLATION (SPACE WAGON)
3
1
2
8.8 Nm
8.8 Nm
4
5
8.8 Nm
11 Nm
11 Nm
6
7
8
9
10
11
23 Nm
12
13
14
15
16
17
19
18
19 Nm
8.8 Nm
19 Nm
30 Nm
8.8 Nm
30 Nm
11 Nm
23 Nm
11 Nm
Removal steps
1. Vacuum pipe and hose
(1999 model vehicles for Hong
Kong)
2. Solenoid valve (1999 model ve-
hicles for Hong Kong)
3. Vacuum pipe and hose
(Vehicles for Europe and 2000
model vehicles for Hong Kong)
4. Solenoid valve
(Vehicles for Europe and 2000
model vehicles for Hong Kong)
5. Vacuum pipe
6. Throttle body
"DA 7. Throttle body gasket
"CA 8. Intake manifold stay
"BA 9. Air intake plenum resonator
10. Gasket
11. Water hose
12. EGR valve
13. Gasket
"AA 14. Hose clamp
"AA 15. EGR support
"AA 16. Gasket
17. Gasket
18. Intake manifold
19. Gasket
RevisedPWEE9616-B
E
Aug. 1999Mitsubishi Motors Corporation
