4G6 ENGINE (E-W) -
Timing Belt
11A-4-5
A
H
"

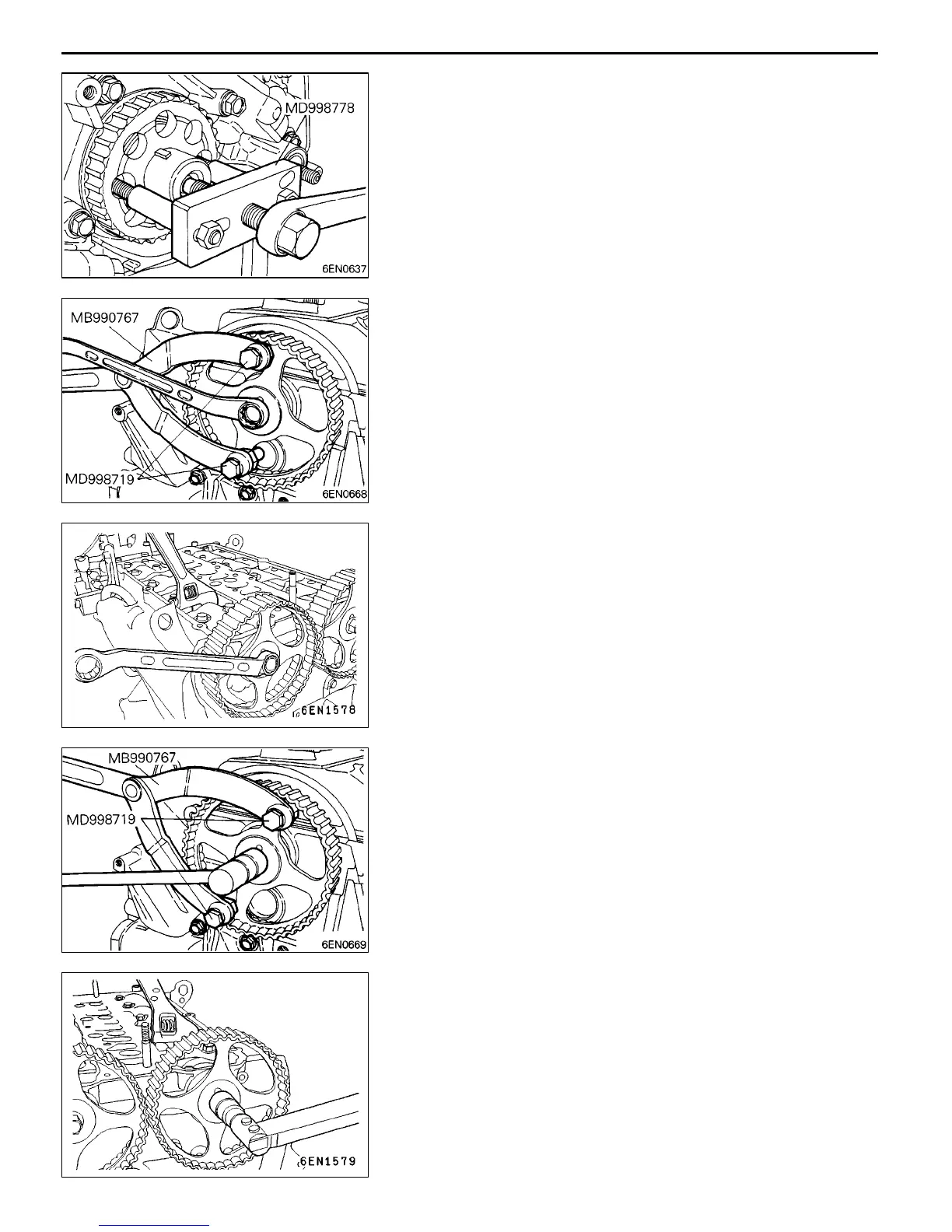

CRANKSHAFT SPROCKET “B” REMOVAL
(1) If it is difficult to remove the sprocket, use the special
tool.
A
I
"
CAMSHAFT SPROCKET BOLT LOOSENING
(1) Using the special tools shown in the illustration, lock the
camshaft sprocket in position.
(2) Loosen the camshaft bolt.
A
J
"
CAMSHAFT SPROCKET BOLT LOOSENING
(1) Use a wrench to hold the hexagonal part of the camshaft,
and then remove the camshaft sprocket mounting bolt.
INSTALLATION SERVICE POINTS
"
A
A
CAMSHAFT SPROCKET BOLT TIGHTENING
(1) Using the special tools shown in the illustration, lock the
camshaft sprocket in position.
(2) Tighten the camshaft sprocket bolt to the specified torque.
"
B
A
CAMSHAFT SPROCKET BOLT TIGHTENING
(1) Using a wrench, hold the camshaft at its hexagon and
tighten the bolt to the specification.
RevisedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
