4G6 ENGINE (E-W) -
Timing Belt
11A-4-1
4. TIMING BELT

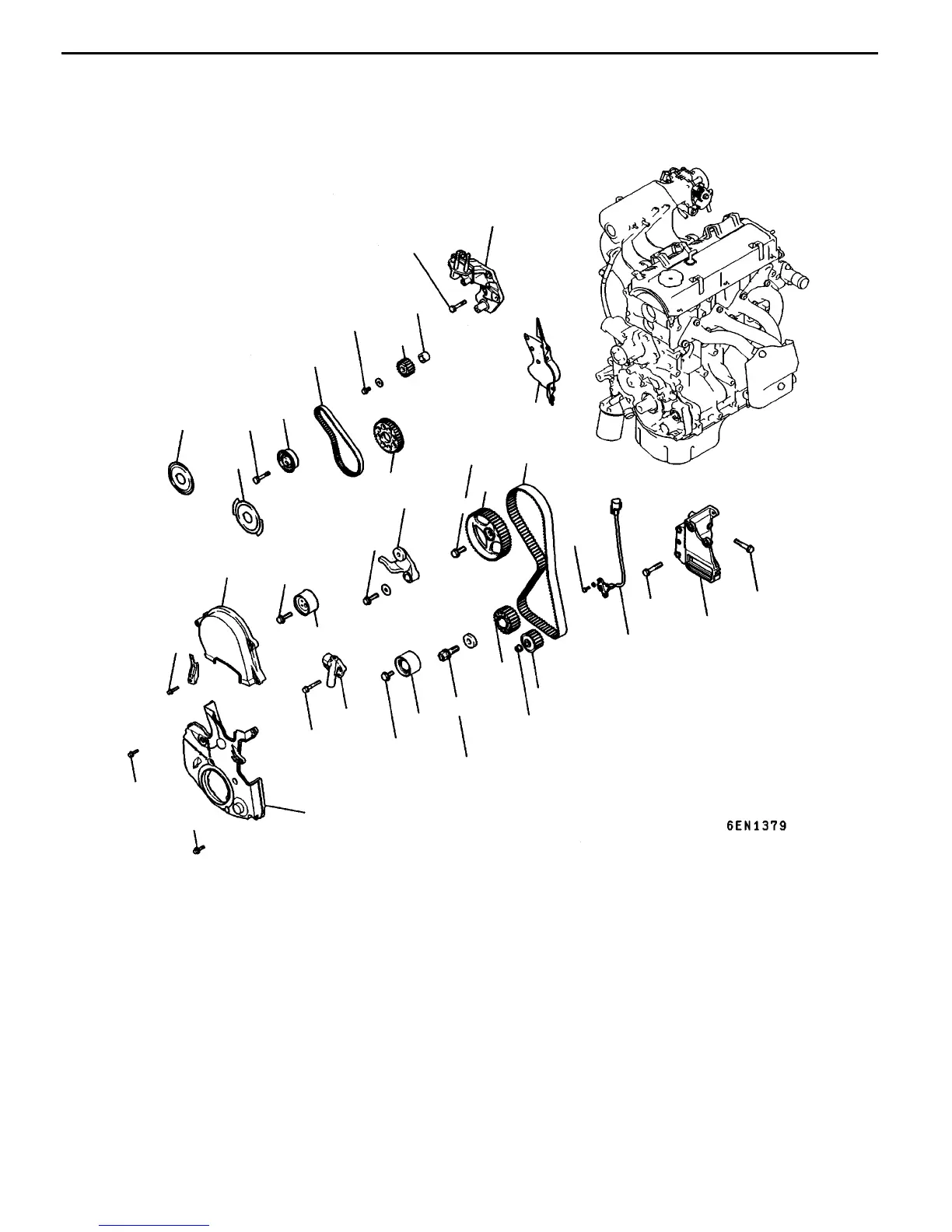

REMOVAL AND INSTALLATION (SOHC)
1
2
10
4
23
22
9
11
6
20
14
8
13
15
21
7
17
18
45 Nm
14 Nm
11 Nm
22 Nm
9Nm
48 Nm
88 Nm
54 Nm
118 Nm
49 Nm
16
45 Nm
18 Nm
19
35 Nm
23 Nm
5
12
3
49 Nm
9Nm
Removal steps
1. Timing belt front upper cover
2. Timing belt front lower cover
3. Power steering bracket
4. Crankshaft position sensor
(Multipoint fuel injection)
AA""KA 5. Timing belt
"JA 6. Tensioner pulley
7. Tensioner arm
"IA 8. Auto tensioner
9. Idler pulley
AC""HA 10. Oil pump sprocket
AD""GA 11. Crankshaft bolt
AE" 12. Crankshaft sprocket
13. Flange (Multipoint fuel injection)
14. Flange (Carburetor)
15. Tensioner “B”
AF""FA 16. Timing belt “B”
AG""EA 17. Counterbalance shaft sprocket
"DA 18. Spacer
AH" 19. Crankshaft sprocket “B”
"CA 20. Engine support bracket
AI""AA 21. Camshaft sprocket bolt
22. Camshaft sprocket
23. Timing belt rear cover
RevisedPWEE9616-B
E
Aug. 1999Mitsubishi Motors Corporation
