Mitsubishi 4G6 series

4G6 ENGINE (E-W) -
Water Pump and Water Hose (GDI)
11A-6a-2
INSTALLATION SERVICE POINTS
"
A
A
O-RING / WATER INLET PIPE INSTALLATION
(1) Replace the O-ring of the water inlet pipe, and then apply
water to the O-ring to make installation easy.
Caution
D
Never apply any oil or grease to the O-ring.
D
Secure the water pipe after the thermostat case
has been reinstalled.
"
B
A

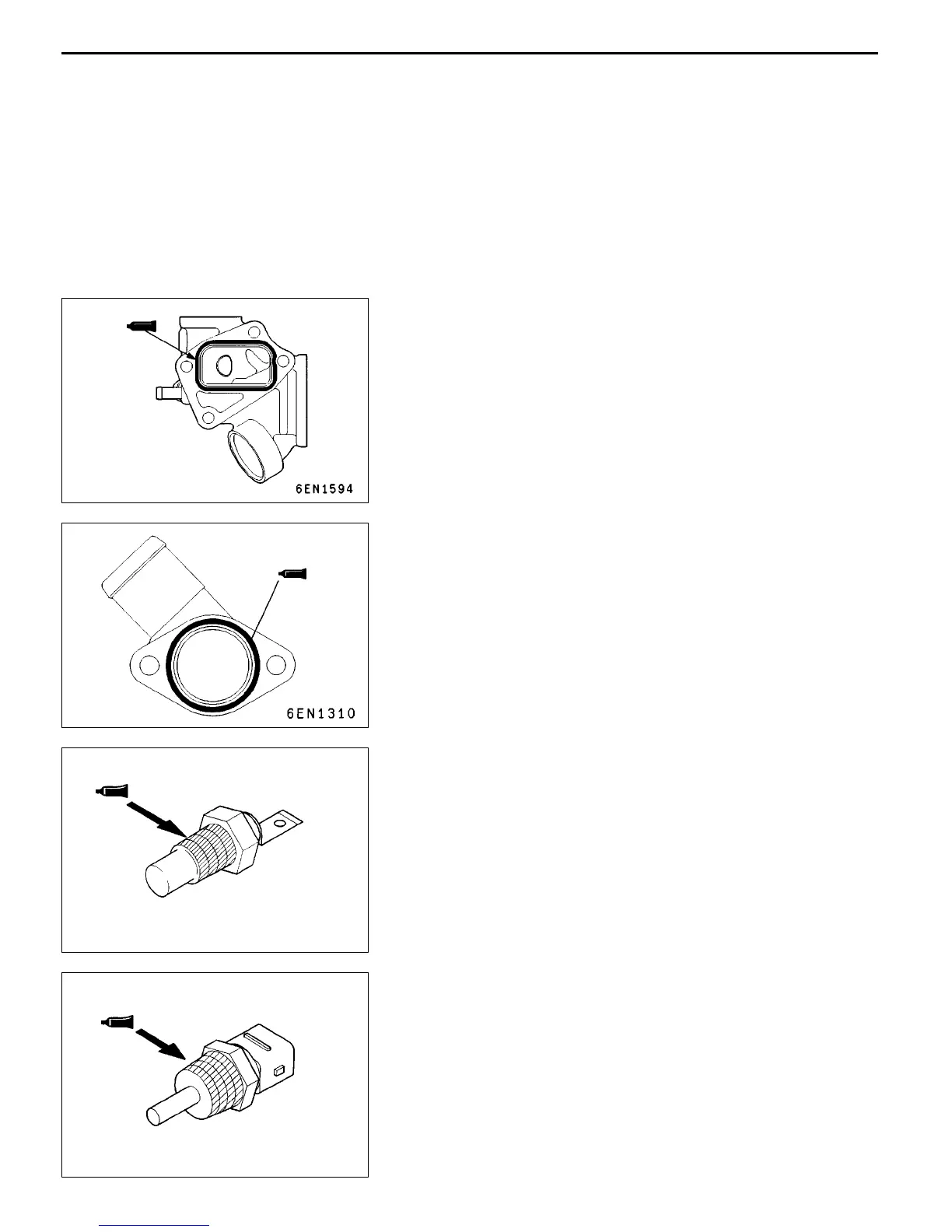

THERMOSTAT CASE INSTALLATION
(1) Apply 3 mm diameter of Form-In-Place Gasket (FIPG)
to the location shown in the illustration.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
"
C
A
WATER OUTLET FITTING INSTALLATION
(1) Apply 3 mm diameter of Form-In-Place Gasket (FIPG)
to the location shown in the illustration.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
"
D
A
ENGINE COOLANT TEMPERATURE GAUGE UNIT
INSTALLATION
(1) Apply the specified sealant to the threads.
Specified sealant:
3M ATD Part No. 8660 or equivalent
"
E
A
ENGINE COOLANT TEMPERATURE SENSOR
INSTALLATION
(1) When reusing the sensor, apply the specified sealant
to the threads.
Specified sealant:
3M Nut Locking Part No. 4171 or equivalent
AddedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
9EN0092
