4G6 ENGINE (E-W) -
Water Pump and Intake Manifold
11A-6-1

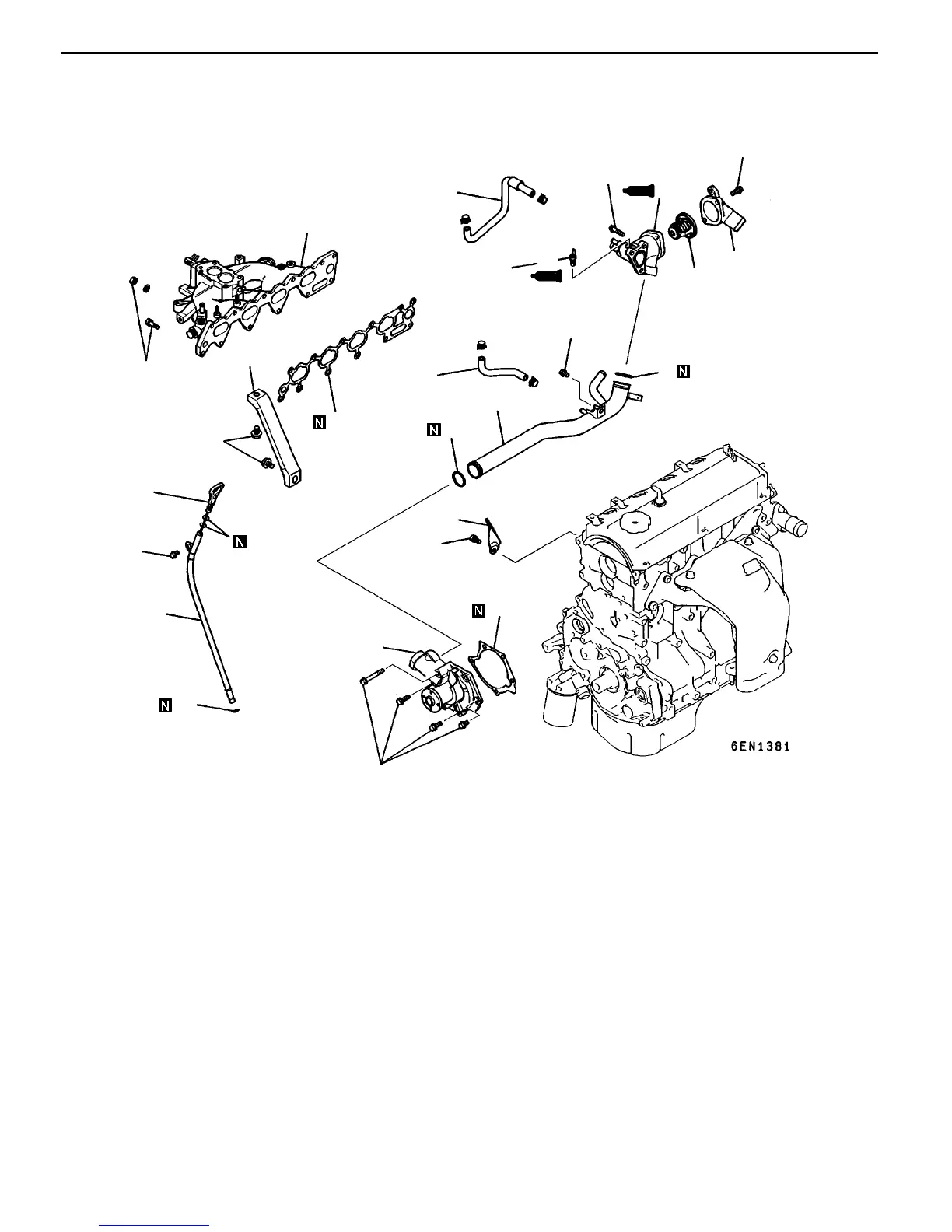

6. WATER PUMP AND INTAKE MANIFOLD
REMOVAL AND INSTALLATION <CARBURETOR>
1
2
17
10
12 Nm
11
12
13
14 Nm
14 Nm
8
13 Nm
11 Nm
5
16
20 Nm
15
31 Nm
4
6
7
8
9
24 Nm
13 Nm
3
14
Removal steps
1. Water hose
2. Water hose
"CA 3. Engine coolant temperature gauge
unit
4. Water inlet fitting
5. Thermostat
"BA 6. Thermostat housing
"AA 7. Water inlet pipe
"AA 8. O-ring
9. Water pump
10. Water pump gasket
11. Oil level gauge
12. Oil level gauge guide
13. O-ring
14. Intake manifold stay
15. Intake manifold
16. Intake manifold gasket
17. Engine hanger
PWEE9616
E
Dec. 1996Mitsubishi Motors Corporation
To Next Page
