4G6 ENGINE (E-W) -
Piston and Connecting Rod
11A-11-1
11. PISTON AND CONNECTING ROD
REMOVAL AND INSTALLATION
10
6
7
8
9
11
4
3
2
1
5
12
Apply engine oil to all
moving parts before
installation.

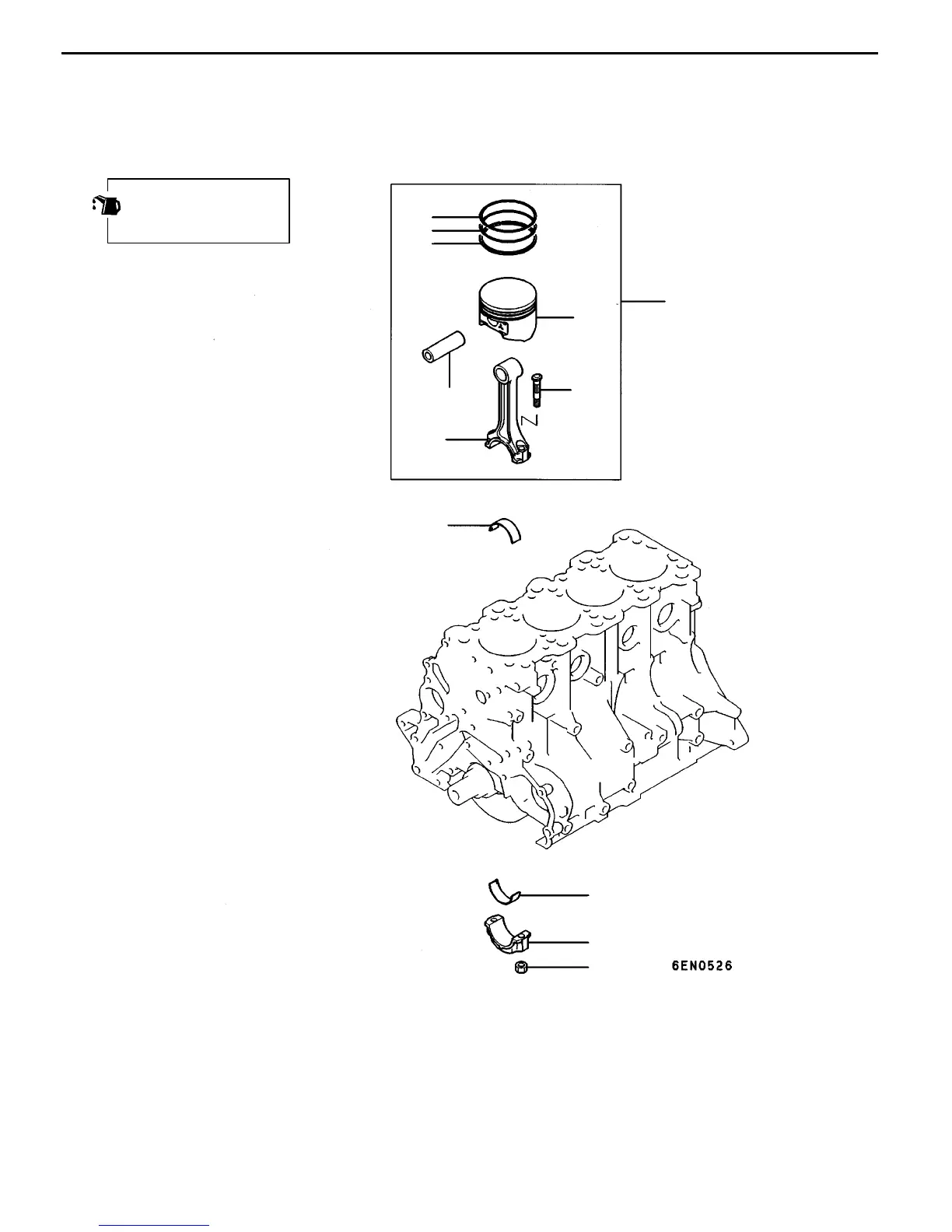

Removal steps
"GA 1. Nut
AA""FA 2. Connecting rod cap
"EA 3. Connecting rod bearing
"DA 4. Piston and connecting rod assem-
bly
"EA 5. Connecting rod bearing
"CA 6. Piston ring No. 1
"CA 7. Piston ring No. 2
"BA 8. Oil ring
AB""AA 9. Piston pin
10. Piston
11. Connecting rod
12. Bolt
PWEE9616
E
Dec. 1996Mitsubishi Motors Corporation
