4G6 ENGINE (E-W) -
Fuel and Emission Control Parts
11A-5-3
REMOVAL AND INSTALLATION
<MULTIPOINT FUEL INJECTION - SPACE WAGON>
1
10
13
12
7
9
18 Nm
2
11
8
9Nm
6
5
22 Nm
3
4
12 Nm
14
15

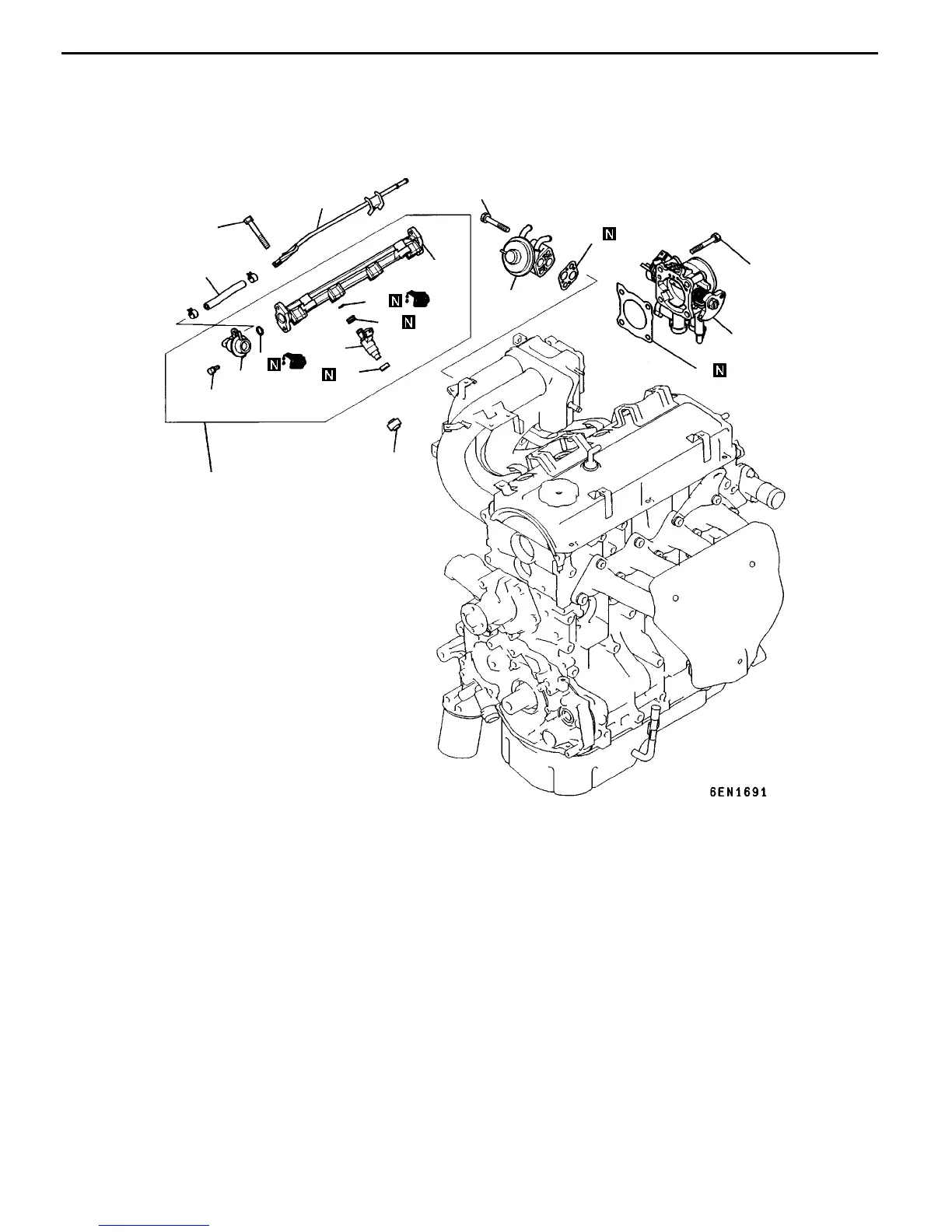

Removal steps
1. Throttle body
"
C
A
2. Throttle body gasket
3. EGR valve
4. EGR valve gasket
5. Fuel hose
6. Fuel return pipe
7. Injectors and delivery pipe
8. Insulator
"
B
A
9. Fuel pressure regulator
10. O-ring
11. Insulator
"
A
A
12. Injectors
13. O-ring
14. Grommet
15. Delivery pipe
RevisedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
