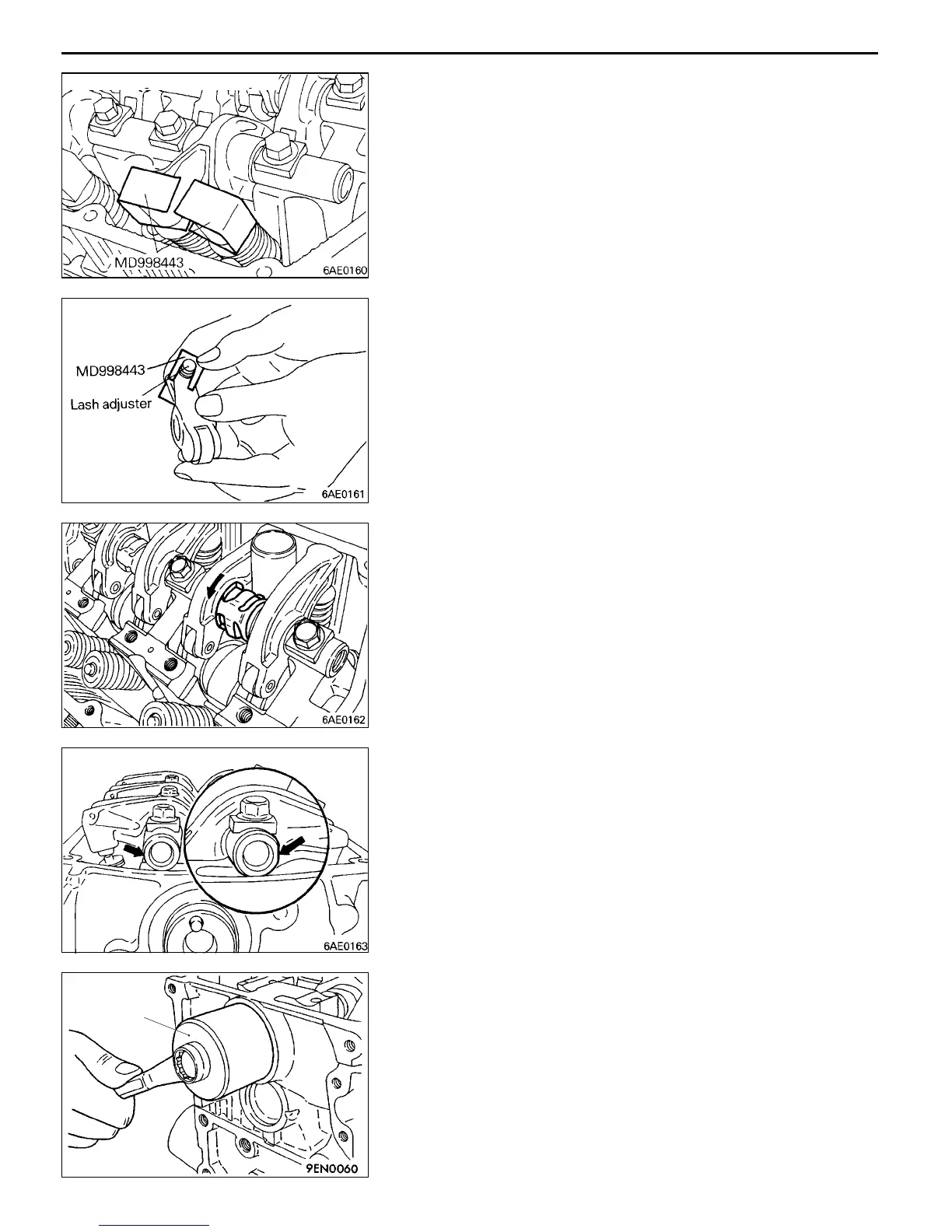

4G6 ENGINE (E-W) -
Rocker Arms and Camshaft
11A-8-2
REMOVAL SERVICE POINT
A
A
"
ROCKER ARMS AND ROCKER ARM SHAFTS
REMOVAL
Caution
D
If the lash adjuster is re-used, clean the lash
adjuster. (Refer to 11A-8-3.)
(1) Set special tool MD998443 to prevent the lash adjuster
from coming free and falling to the floor.
INSTALLATION SERVICE POINTS
"
A
A
LASH ADJUSTER INSTALLATION
(1) Insert the lash adjuster to rocker arm, being careful not
to spill the diesel fuel. Then use the special tool to prevent
adjuster from falling while installing it.
Caution
D
If the lash adjuster is re-used, clean the lash
adjuster. (Refer to 11A-8-3.)
"
B
A
ROCKER SHAFT SPRING / ROCKER ARMS AND
ROCKER ARM SHAFT INSTALLATION
(1) Temporarily tighten the rocker shaft with the bolt so that
all rocker arms on the inlet valve side do not push the
valves.
(2) Fit the rocker shaft spring from the above and position
it so that it is right angles to the plug guide.
NOTE
Install the rocker shaft spring before installing the exhaust
side rocker arms and rocker arm shaft.
(3) Remove the special tool for securing the lash adjuster.
(4) Make sure that the notch in the rocker arm shaft is in
the direction as illustrated.
"
C
A
CAMSHAFT OIL SEAL INSTALLATION
RevisedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
MD998713
