4G6 ENGINE (E-W) -
Intake Manifold (GDI)
11A-3a-2
REMOVAL AND INSTALLATION (GALANT)
23 Nm
8.8 Nm
8.8 Nm
11 Nm
2
1
3
19 Nm
4
15
16
19 Nm
5
6
7
8
9
11
10
14
12
13
23 Nm
8.8 Nm
30 Nm
11 Nm

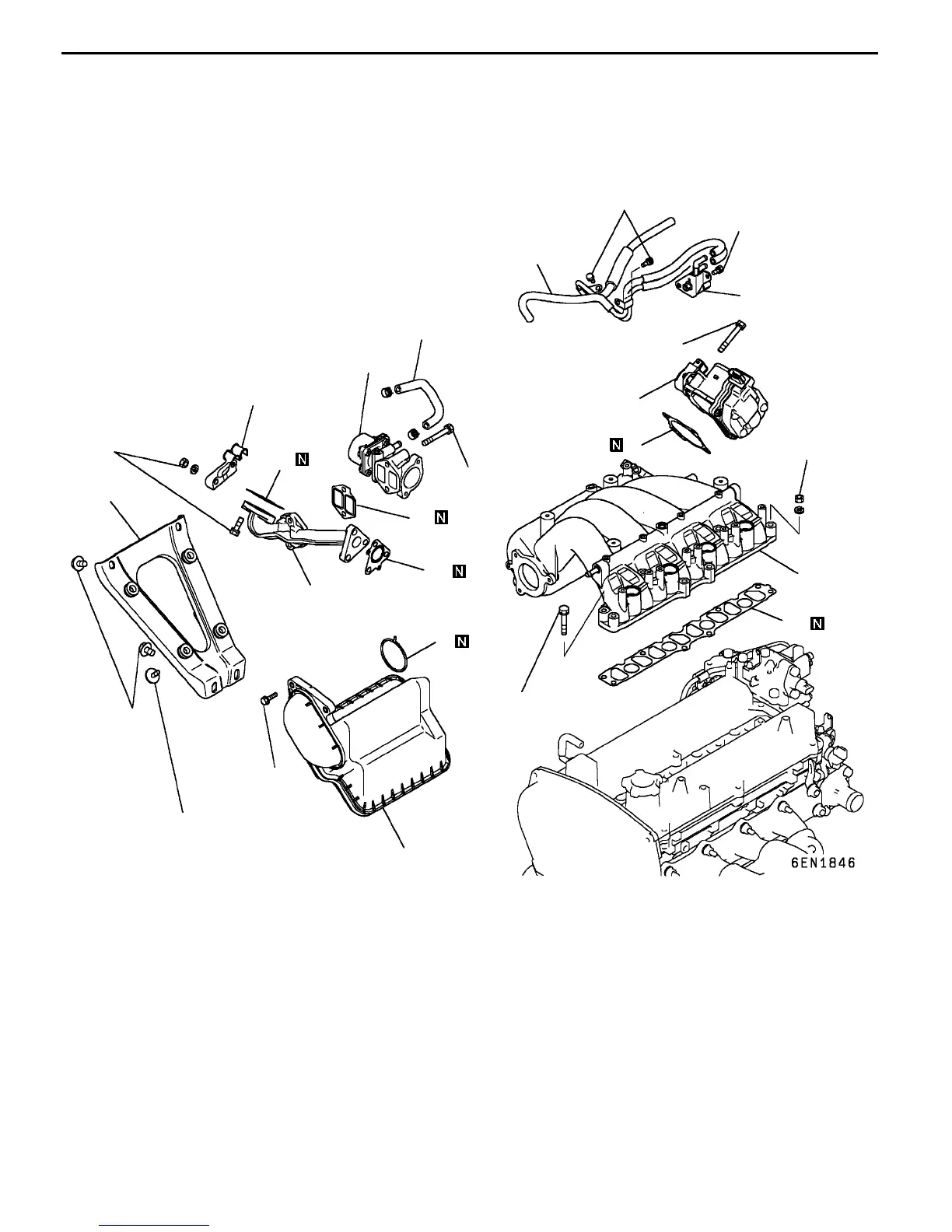

Removal steps
1. Vacuum pipe and hose
2. Solenoid valve
3. Throttle body
"DA 4. Throttle body gasket
"CA 5. Intake manifold stay
"BA 6. Air intake plenum resonator
7. Gasket
8. Water hose
9. EGR valve
10. Gasket
"AA 11. Hose clamp
"AA 12. EGR support
"AA 13. Gasket
14. Gasket
15. Intake manifold
16. Gasket
RevisedPWEE9616-B
E
Aug. 1999Mitsubishi Motors Corporation
