4G6 ENGINE (E-W) -
Intake Manifold (GDI)
11A-3a-3

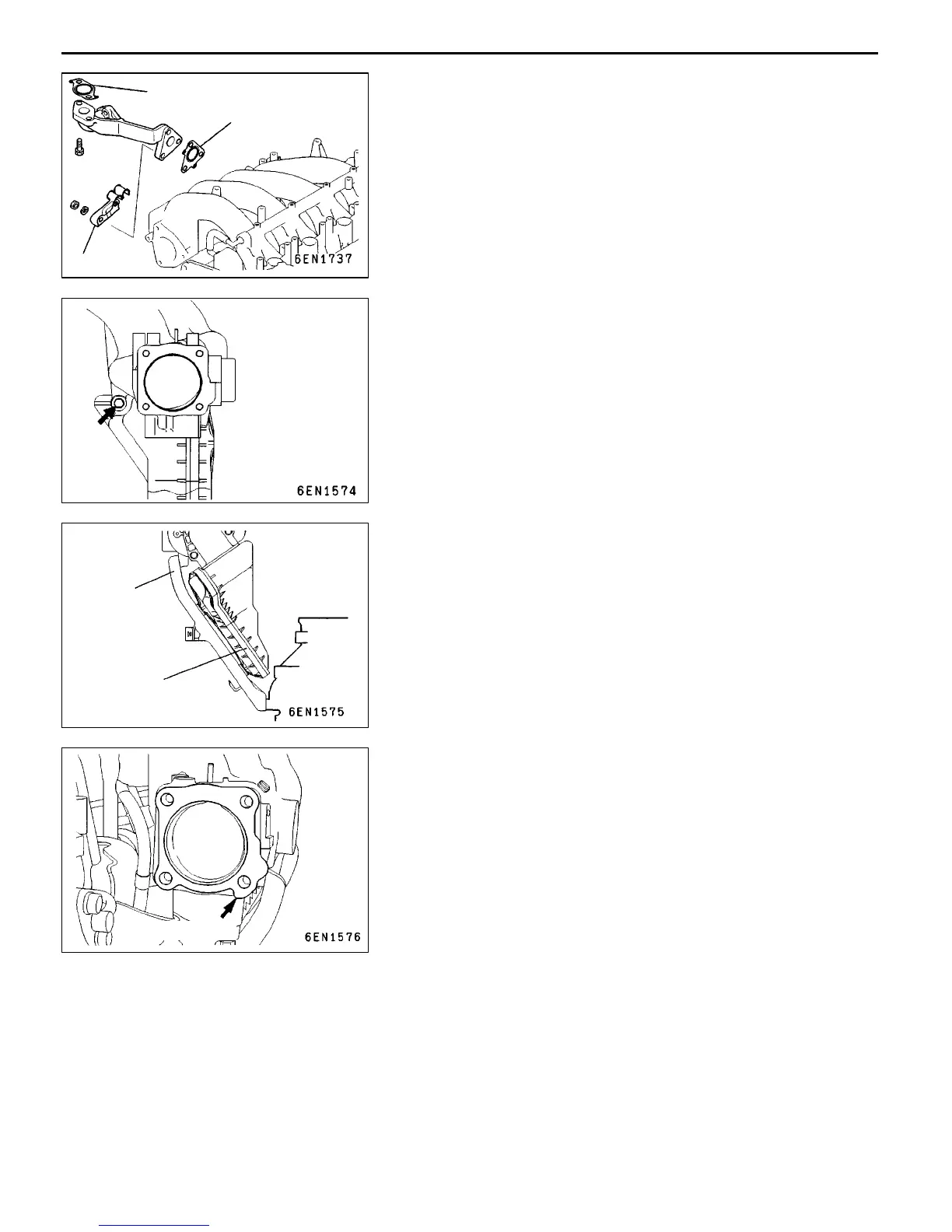

INSTALLATION SERVICE POINTS
"
A
A
EGR SUPPORT / HOSE CLAMP / GASKET
INSTALLATION
(1) Install the gasket, EGR support and hose clamp to the
cylinder head in that order and tighten the fasteners
temporarily.
(2) Install the EGR support assembly to the intake manifold
with the gasket attached on the mating surface, and tighten
the fasteners to the specified torque.
(3) Tighten the fasteners on the cylinder head side to the
specified torque.
"
B
A
AIR INTAKE PLENUM RESONATOR
INSTALLATION
(1) Install the mounting bolts on the throttle body side without
fail.
"
C
A
INTAKE MANIFOLD STAY INSTALLATION
(1) Tighten the fasteners to the specified torque after
confirming that the intake manifold stay is in close contact
with the air intake plenum resonator and the cylinder
block.
"
D
A
THROTTLE BODY GASKET INSTALLATION
(1) Position the projection as shown in the illustration.
AddedPWEE9616-B
E
Aug. 1999Mitsubishi Motors Corporation
Intake manifold side
Cylinder head side
Hose clamp
Intake
manifold
stay
Air intake
plenum
resonator
Projection
