4G6 ENGINE (E-W) -
Alternator and Ignition System
11A-3-3

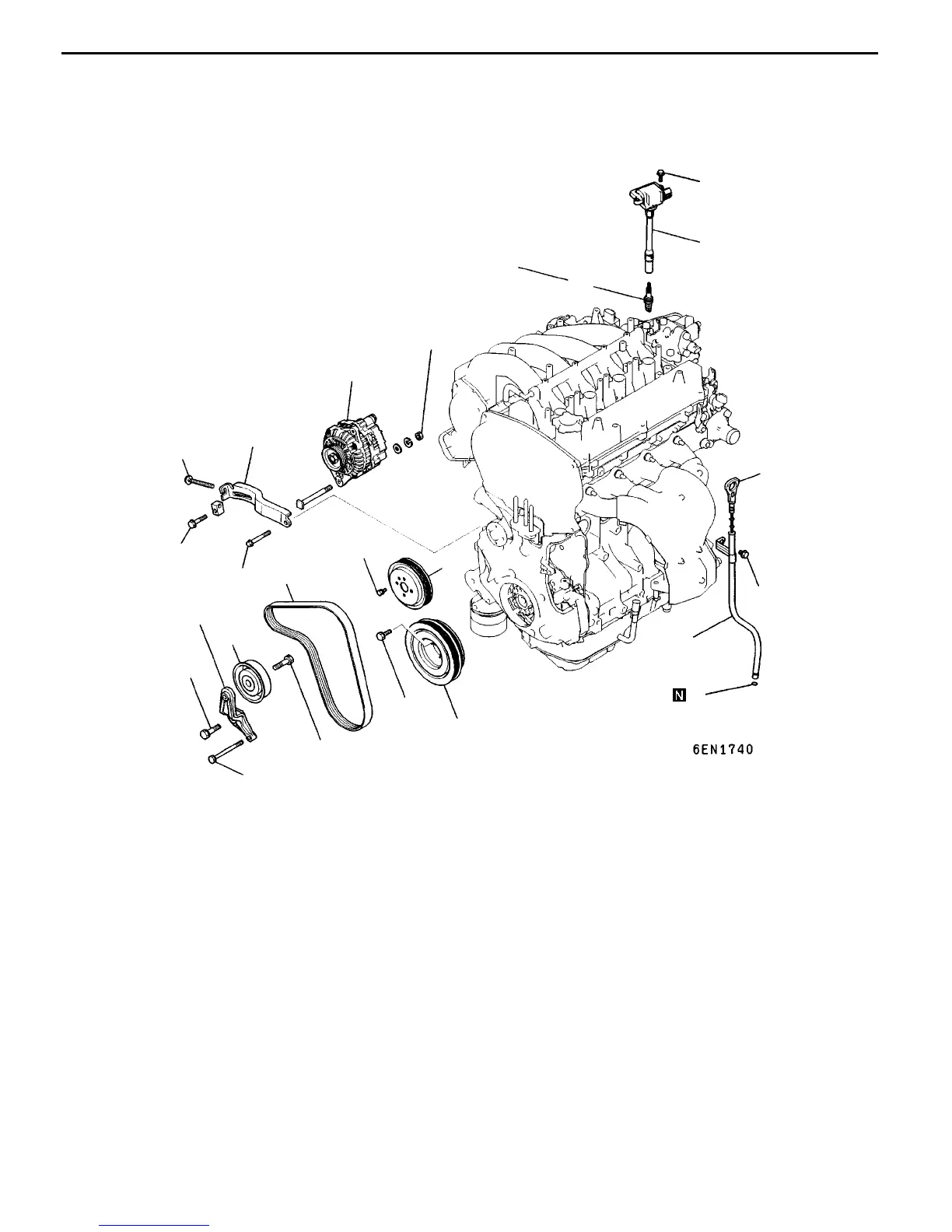

REMOVAL AND INSTALLATION (GDI)
11
10
4
5
2
3
1
7
9
22 Nm
13 Nm
25 Nm
22 Nm
49 Nm
23 Nm
49 Nm
25 Nm
6
49 Nm
9.8 Nm
8.8 Nm
8
12
9.8 Nm
Removal steps
1. Oil level gauge
2. Oil level gauge guide
3. O-ring
4. Drive belt
5. Water pump pulley
6. Alternator
7. Alternator brace
8. Idler pulley bracket
(Vehicle for Hong Kong)
9. Idler pulley
(Vehicle for Hong Kong)
10. Crankshaft pulley
11. Ignition coil
12. Spark plug
