4G6 ENGINE (E-W) -
Timing Belt
11A-4-8

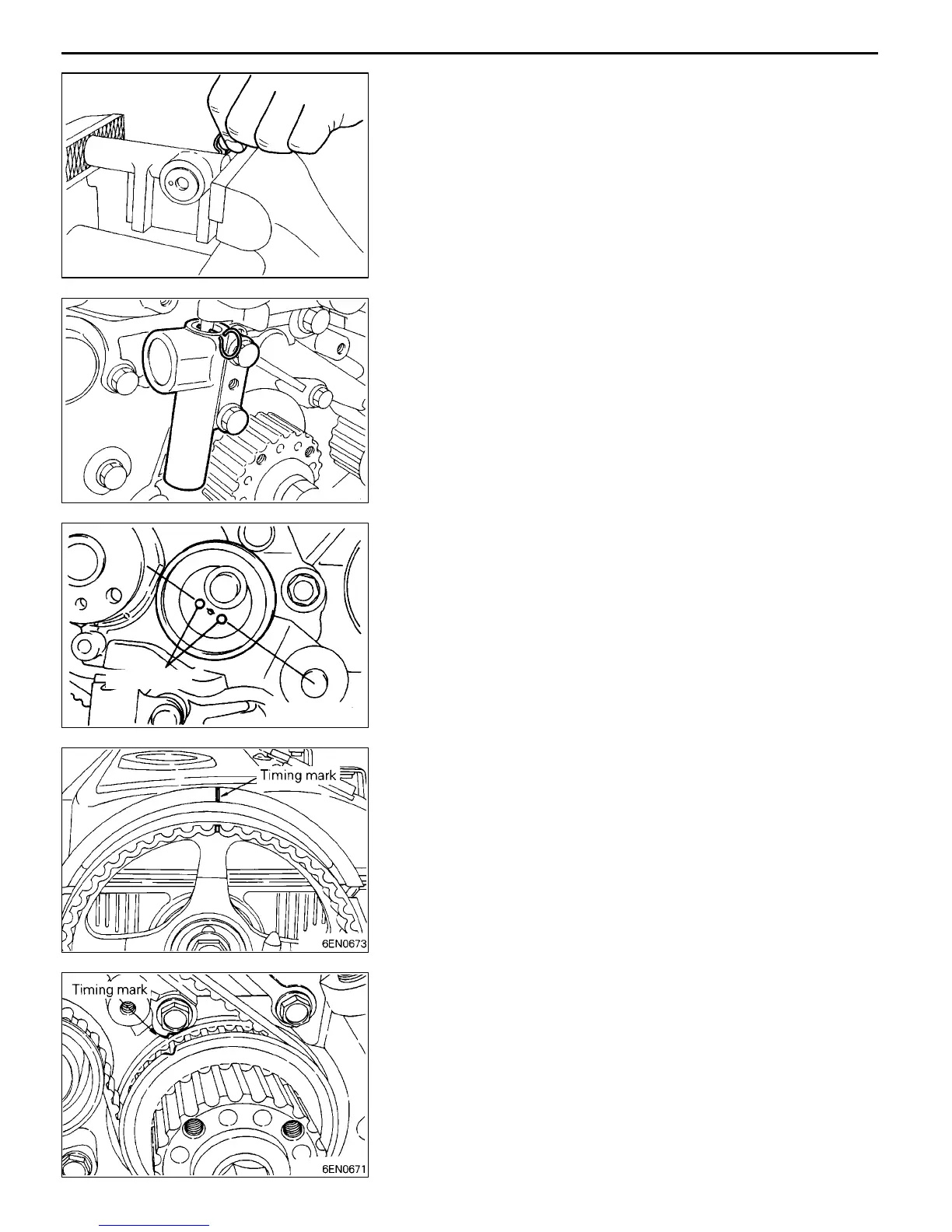

(4) Insert a wire (1.4 mm in diameter) into the set holes.
(5) Unclamp the auto tensioner from the vise.
(6) Install the auto tensioner to front case and tighten to
the specified torque.
Caution
D
Leave the wire installed in the auto tensioner.
"
J
A
TENSIONER PULLEY INSTALLATION
(1) Install the tensioner pulley in such direction that its two
small holes are arranged vertically.
"
K
A
TIMING BELT INSTALLATION
(1) Check that the timing belt tensioner and spring have been
installed in position. (See
"
J
A
)
(2) Align timing mark on camshaft sprocket with timing mark
on cylinder head.
(3) Align timing mark on crankshaft sprocket with timing mark
on front case.
RevisedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
6AE0050
6EN0350
6EN1323
Small holes
To Next Page
