4G6 ENGINE (E-W) -
Front Case, Counterbalance Shafts and Oil Pan
11A-10-9

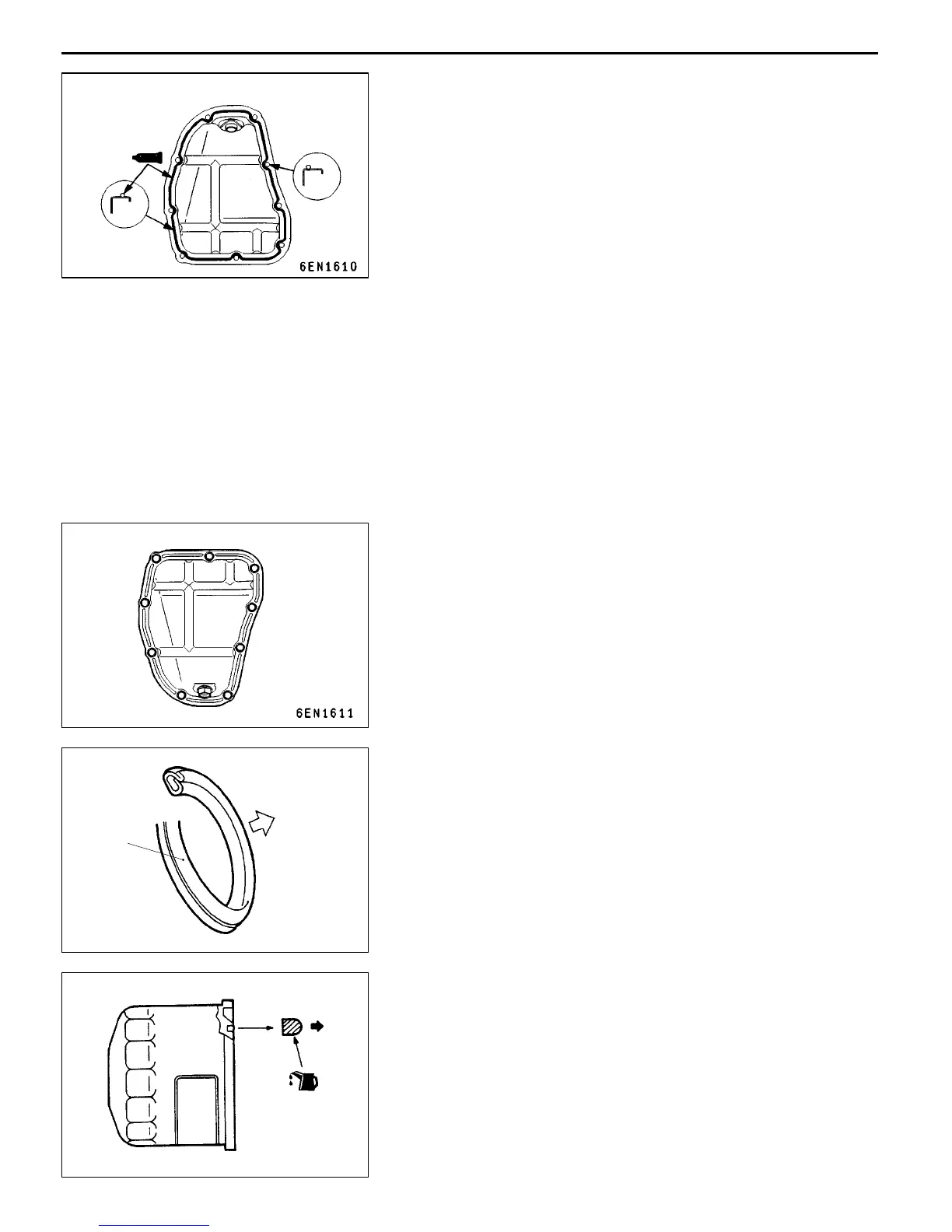

(4) Clean both mating surfaces of oil pan lower and oil pan
upper.
(5) Apply a 4 mm wide bead of sealant to the entire
circumference of the oil pan lower flange.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
NOTE
(1) Be sure to install the oil pan quickly while the sealant
is wet (within 15 minutes).
(2) After installation, keep the sealant area away from
the oil and coolant for approx. one hour.
(6) Tighten the oil pan lower mounting bolts in the sequence
shown in the illustration.
"
N
A
DRAIN PLUG GASKET INSTALLATION
(1) Install the drain plug gasket in the shown direction.
"
O
A
OIL FILTER INSTALLATION
(1) Clean the installation surface of the filter bracket.
(2) Apply engine oil to the O-ring of the oil filter.
(3) Screw the oil filter in until the O-ring contacts the bracket.
Then tighten 3/4 turn (tightening torque: 16 Nm).
NOTE
For the oil filter MD135737, tighten one turn (Tightening
torque: 14 Nm) after the O-ring contacts the bracket.
AddedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
Bolt hole
portion
Oil pan lower
Groove
portion
2
5
3
4
6
7
8
9
1
7EN0307
Oil pan side
Drain plug
gasket
6EN0591
Bracket side
