Mitsubishi 4G6 series

4G6 ENGINE (E-W) -
Rocker Arms and Camshafts (GDI)
11A-8a-1

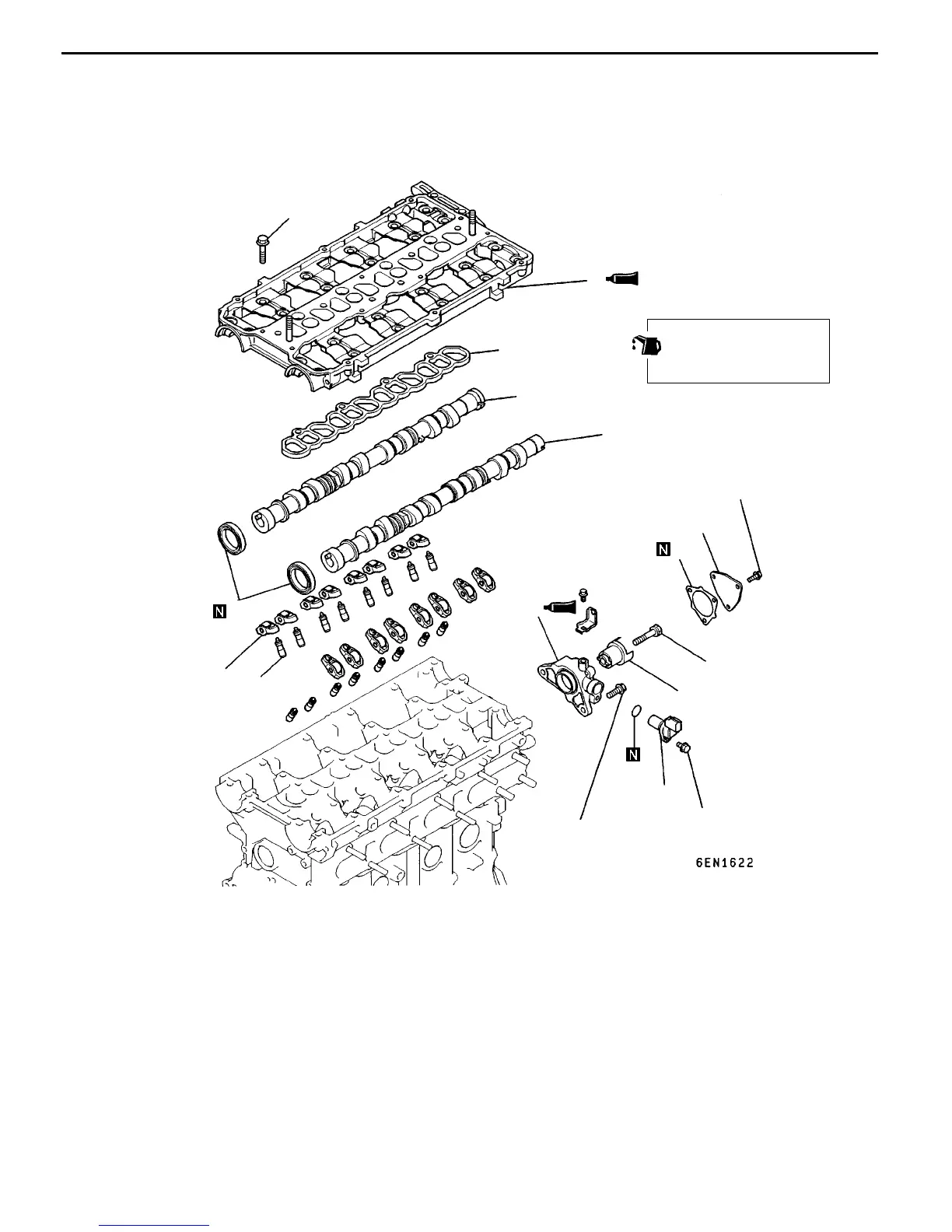

8a. ROCKER ARMS AND CAMSHAFTS (GDI)
REMOVAL AND INSTALLATION
9
10
5
3
1
7
6
8
2
11
12
21 Nm
8.8 Nm
9.8 Nm
20 Nm
13 Nm
Apply engine oil to all
moving parts before
installation.
4
Removal steps
1. Camshaft position sensor
2. Cover
3. Gasket
"DA 4. Camshaft position sensing cylinder
"CA 5. Camshaft position sensing cylinder
support
"BA 6. Oil seal
"BA 7. Beam camshaft cap
"BA 8. Beam camshaft cap gasket
"BA 9. Intake camshaft
"BA 10. Exhaust camshaft
11. Rocker arm
AA""AA 12. Lash adjuster
AddedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
