4G6 ENGINE (E-W) -
Fuel and Emission Control Parts
11A-5-4
INSTALLATION SERVICE POINTS
"
A
A

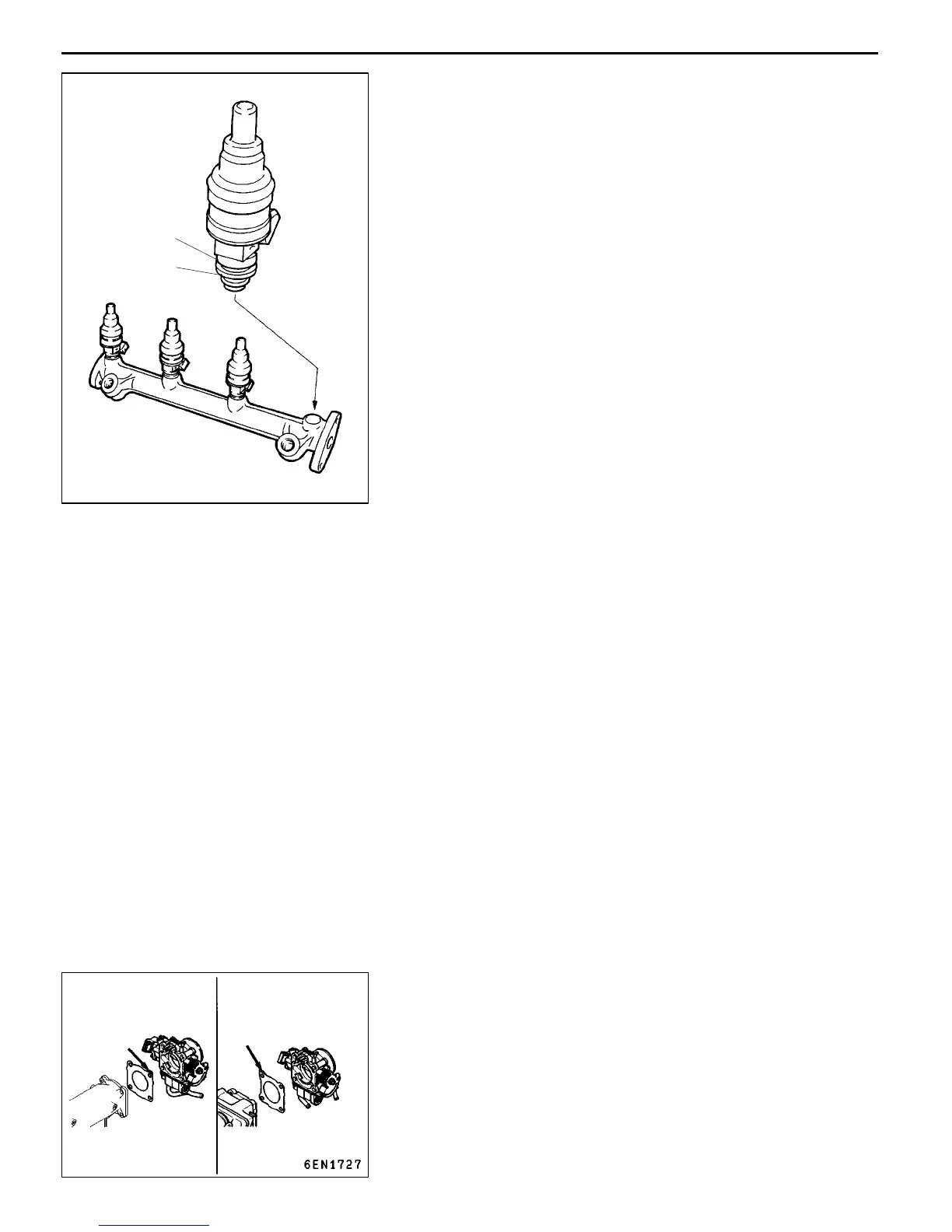

INJECTORS INSTALLATION
(1) Before installing an injector, the rubber O-ring must be
lubricated with a drop of clean engine oil to aid in
installation.
(2) Install injector top end. Be careful not to damage O-ring
during installation.
"
B
A
FUEL PRESSURE REGULATOR INSTALLATION
(1) Apply a small amount of new engine oil to the O-ring.
Insert the fuel pressure regulator into the delivery pipe
being careful not to damage the O-ring.
Caution
D
Be sure not to let engine oil get into the delivery
pipe.
(2) Check that the fuel pressure regulator turns smoothly.
If it does not turn smoothly, the O-ring may be trapped.
Remove the fuel pressure regulator and check the O-ring
for damage, and then re-insert it into the delivery pipe
and check once again.
"
C
A
GASKET INSTALLATION
(1) Position the projection as shown in the illustration.
AddedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
1EN0388
Grommet
O-ring
Projection
Projection
GALANT SPACE WAGON
