4G6 ENGINE (E-W) -
Front Case, Counterbalance Shafts and Oil Pan
11A-10-6
"
E
A

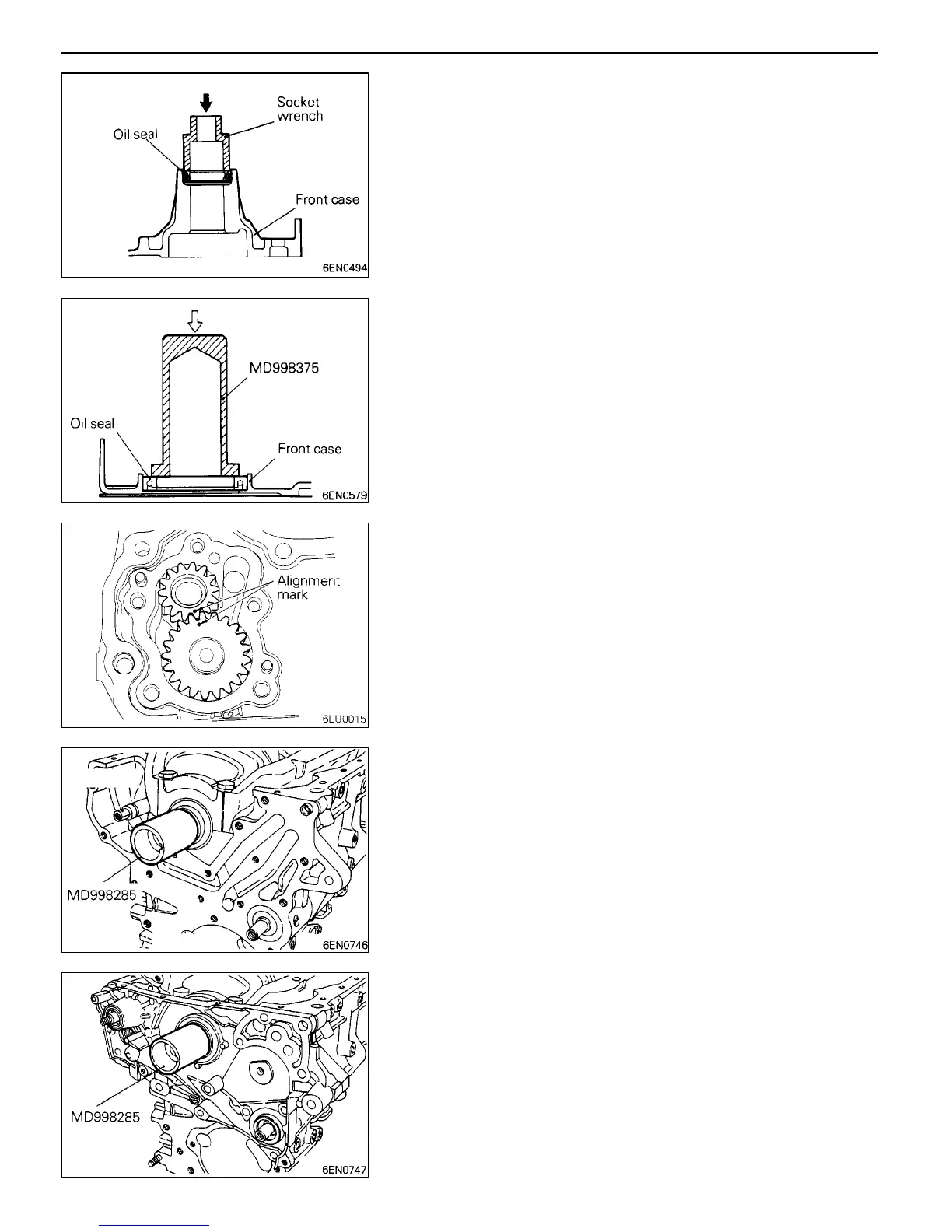

OIL PUMP OIL SEAL INSTALLATION
"
F
A
CRANKSHAFT FRONT OIL SEAL INSTALLATION
(1) Using the special tool, install the crankshaft front oil seal
into the front case.
"
G
A
OIL PUMP DRIVEN GEAR / OIL PUMP DRIVE
GEAR INSTALLATION
(1) Apply engine oil amply to the gears and line up the
alignment marks.
"
H
A
FRONT CASE ASSEMBLY INSTALLATION
(1) Set the special tool on the front end of crankshaft and
apply a thin coat of engine oil to the outer circumference
of the special tool to install the front case.
(2) Install the front case assembly through a new front case
gasket and temporarily tighten the flange bolts (other
than those for tightening the filter bracket).
