4G6 ENGINE (E-W) -
Timing Belt
11A-4-6
"
C
A

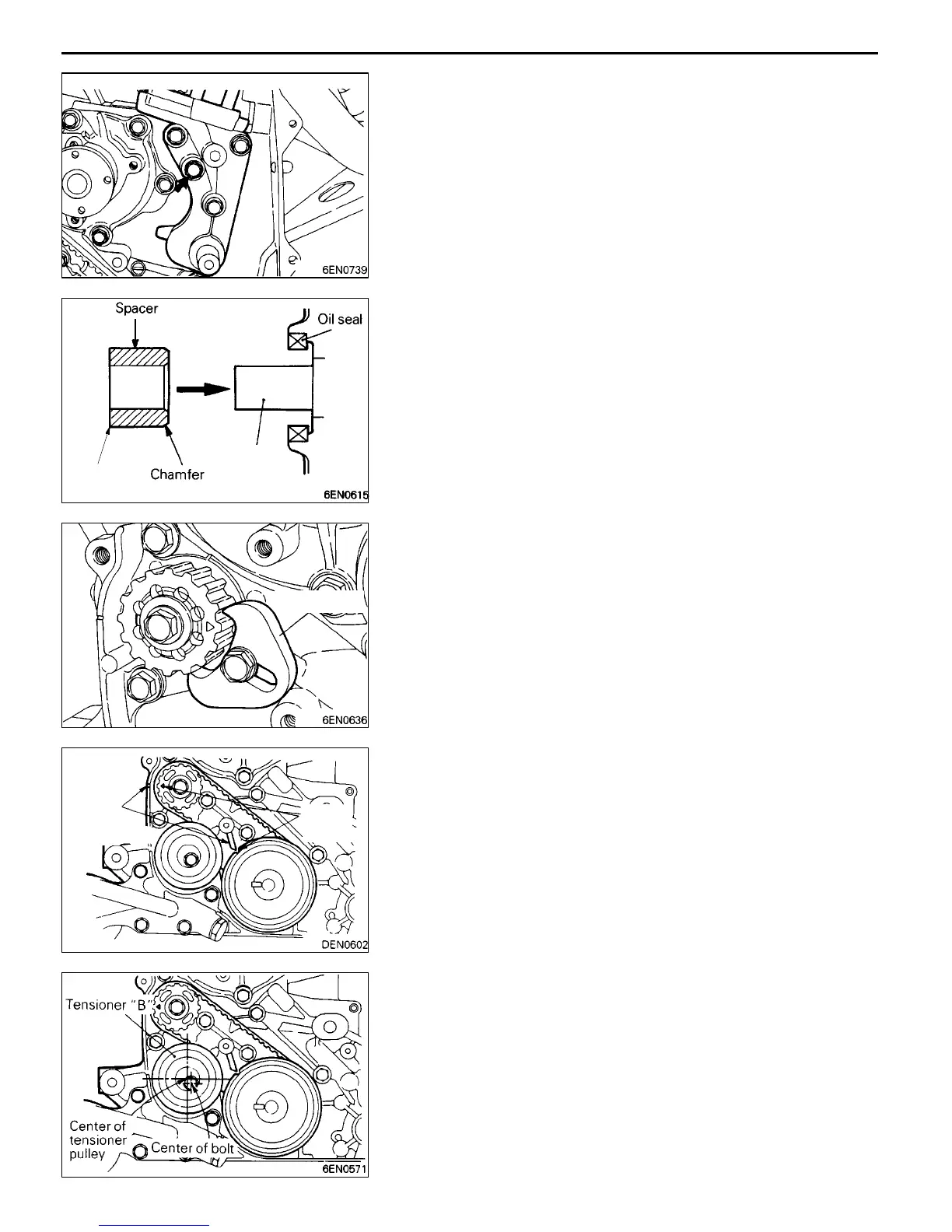

ENGINE SUPPORT BRACKET INSTALLATION
(1) Coat the bolts illustrated with sealant before tightening.
Specified sealant: 3M ATD Part No. 8660 or equivalent
"
D
A
SPACER INSTALLATION
(1) Install the spacer with the chamfered end toward the
oil seal.
"
E
A
COUNTERBALANCE SHAFT SPROCKET
INSTALLATION
(1) Install the counterbalance shaft sprocket and screw the
bolt.
(2) Install special tool MD998785 as shown in the illustration
to lock the counterbalance shaft.
(3) Tighten the bolt, and then remove the special tool.
"
F
A
TIMING BELT “B” INSTALLATION
(1) Align timing marks on the crankshaft sprocket “B” and
counterbalance shaft sprocket with the marks on the front
case respectively.
(2) Install the timing belt “B” on the crankshaft sprocket “B”
and counterbalance shaft sprocket. There should be no
slack on the tension side.
(3) Make sure that the relationship between the tensioner
pulley center and the bolt center is as shown in the
illustration.
RevisedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
Counter-
balance
shaft
Sharp
edge
MD998785
Timing
marks
Timing
marks
(onfront
case)
