Mitsubishi 4G6 series User Manual

4G6 ENGINE (E-W) -
Timing Belt
11A-4-2

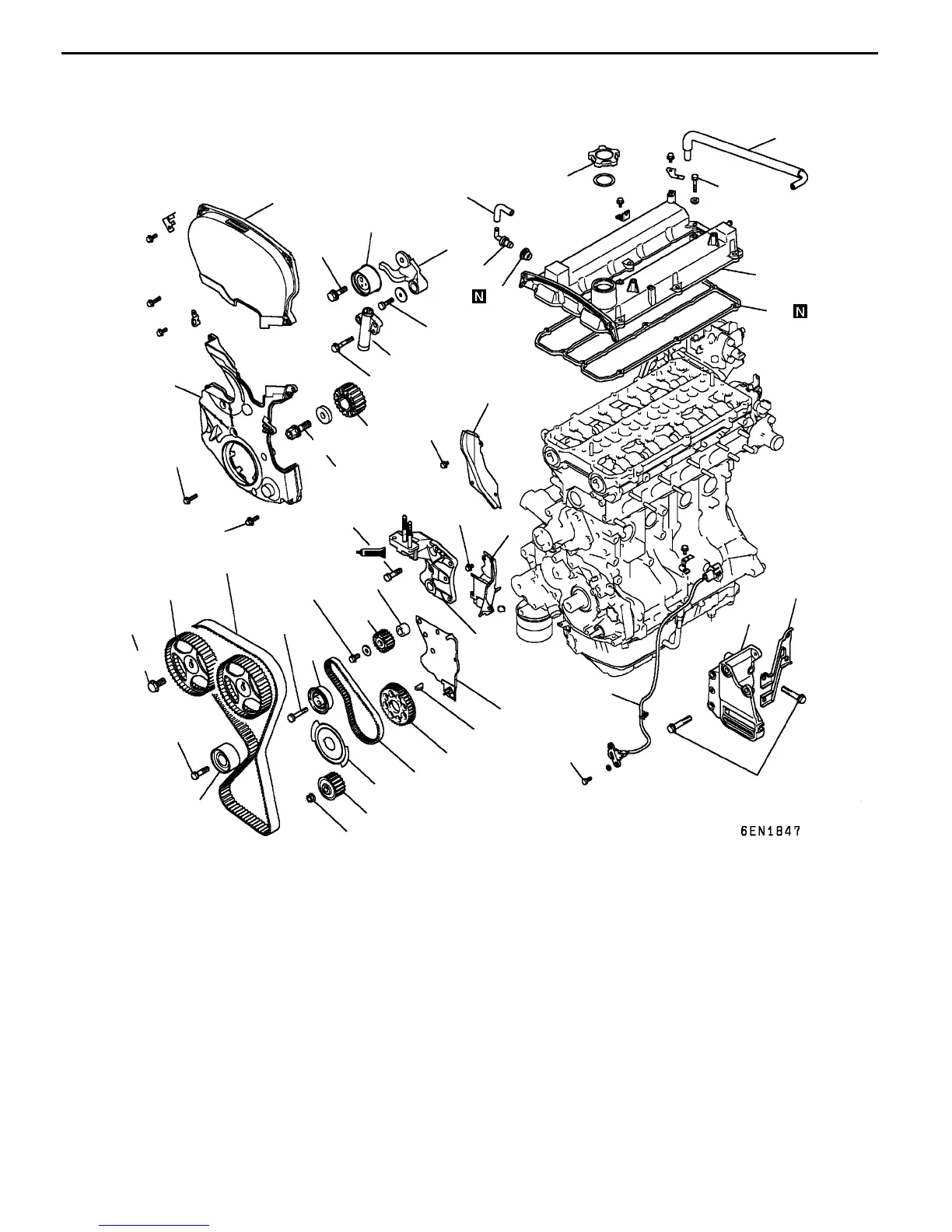

REMOVAL AND INSTALLATION (GDI)
1
2
11
5
24
23
10
12
7
21
15
9
14
16
22
8
18
19
54 Nm
11 Nm
48 Nm
48 Nm
49 Nm
11 Nm
23 Nm
8.8 Nm
49 Nm
17
3.4 Nm
88 Nm
20
11 Nm
23 Nm
6
13
4
18 Nm
25
26
27
28
29
30
31
32
33
118 Nm
9Nm
45 Nm
3
Removal steps
1. Front upper cover
2. Front lower cover
3. Power steering pump bracket stay
4. Power steering bracket
AB""LA 5. Timing belt
"JA 6. Tensioner pulley
7. Tensioner arm
"IA 8. Auto tensioner
9. Idle pulley
10. Crankshaft position sensor
AC""HA 11. Oil pump sprocket
AD""GA 12. Crankshaft bolt
AE" 13. Crankshaft sprocket
14. Flange
15. Tensioner B
AF""FA 16. Timing belt B
AG""EA 17. Counterbalance shaft sprocket
"DA 18. Spacer
AH" 19. Crankshaft sprocket B
20. Crankshaft key
21. Breather hose
22. PCV hose
23. PCV valve
24. PCV valve gasket
25. Oil filler cap
26. Rocker cover
27. Rocker cover gasket
"CA 28. Engine support bracket
AJ""BA 29. Camshaft sprocket bolt
30. Camshaft sprocket
31. Timing belt rear right cover
32. Timing belt rear left upper cover
33. Timing belt rear left lower cover
RevisedPWEE9616-B
E
Aug. 1999Mitsubishi Motors Corporation
