Mitsubishi 4G6 series

4G6 ENGINE (E-W) -
Exhaust Manifold
6EN1170
3 mm diameter
bead sealant
11A-7-2

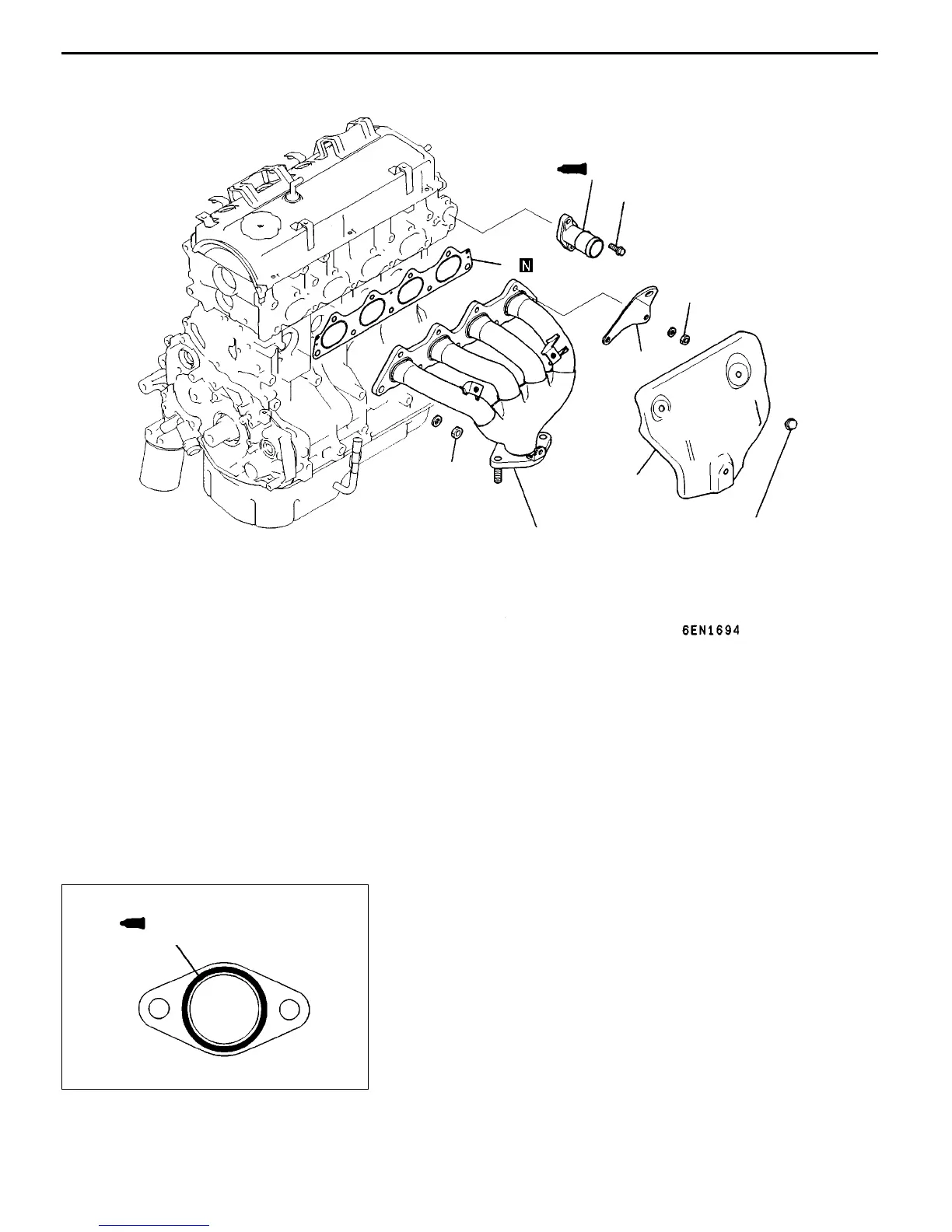

REMOVAL AND INSTALLATION (SPACE WAGON)
1
2
13 Nm
5
4
49 Nm
29 Nm
3
13 Nm
Removal steps
"AA 1. Water outlet fitting
2. Exhaust manifold cover
3. Engine hanger
4. Exhaust manifold
5. Exhaust manifold gasket
INSTALLATION SERVICE POINTS
"
A
A
SEALANT APPLICATION TO WATER OUTLET
FITTING
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
NOTE
(1) Be sure to install the water outlet fitting quickly while
the sealant is wet (within 15 minutes).
(2) After installation, keep the sealed area away from
the oil and coolant for approx. 1 hour.
RevisedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
