FX-20P-E Handy programming panel Others Function 10
10-24
HPP
→
ROM: If the EPROM is attached to the ROM writer, write is enabled only when the contents
saved in the EPROM are completely erased. If the EEPROM is attached to the ROM
writer, its write-protect switch should be set to OFF.
When write is finished, the "COMPLETED" message is displayed.
HPP
←
ROM: The read program can be modify. Press the [RD/WR] or [INS/DEL] key to modify or add a
program. If the EPROM is erased or the entry code does not agree, read is disabled.
HPP:ROM: If a mismatch is detected, the "VERIFY ERROR" message is displayed.
ERASE CHECK: Check whether nothing is written in a memory cassette to be used.
If the memory cassette has not been erased, the "ERASE ERROR" message is displayed.
If the EEPROM cassette is checked, the "ROM MISCONNECTED" message is displayed
and the check is not performed.

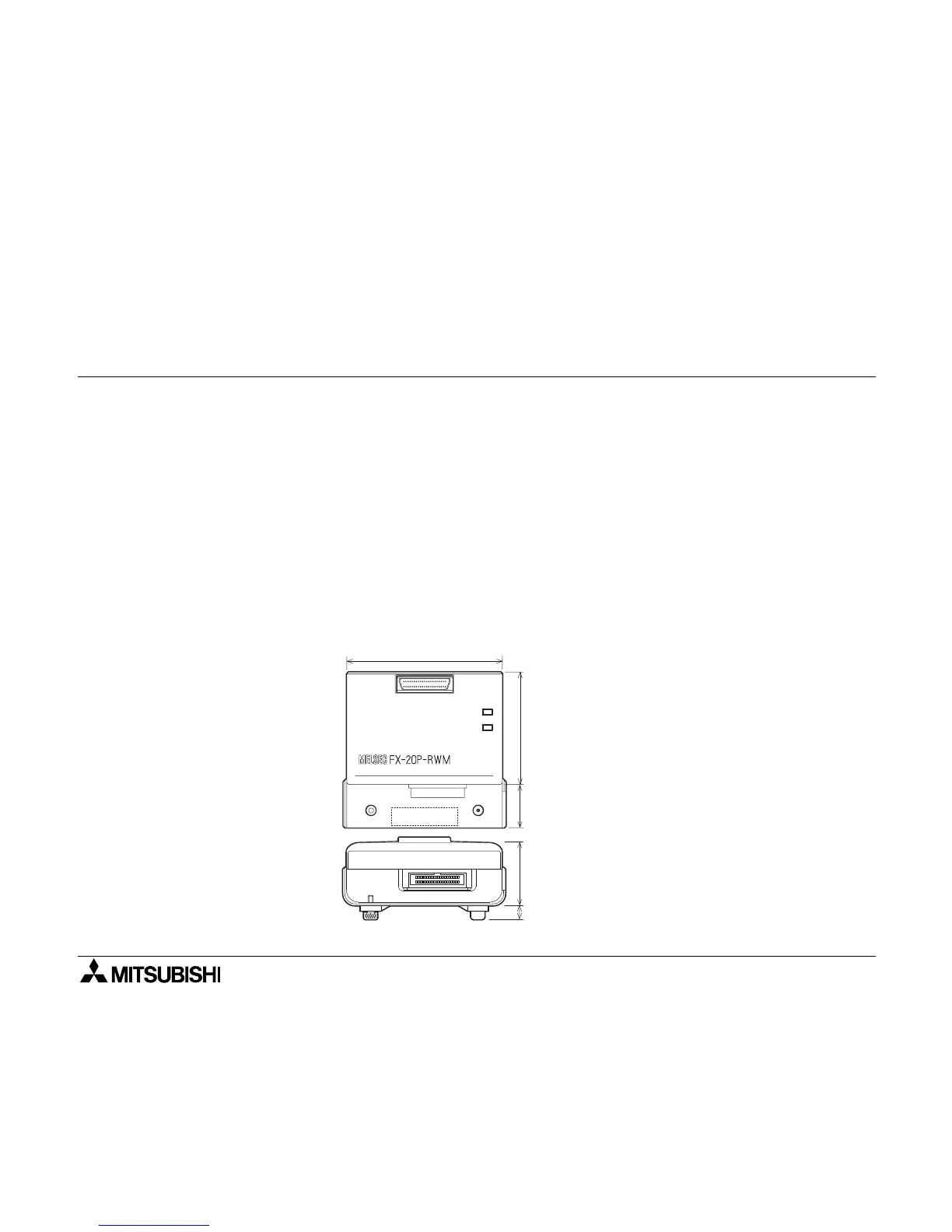

FX-20P-RWM external dimensions diagram
P O W E R
W R I T E
9 0 ( 3 . 5 4 " )
6 5 ( 2 . 5 6 " )
2 5
( 0 . 9 8 " )
3 0 ( 1 . 1 8 " )
1 0
( 0 . 3 9 " )
U n i t : m m ( i n c h )
