FX-20P-E Handy programming panel Write 5
5-3

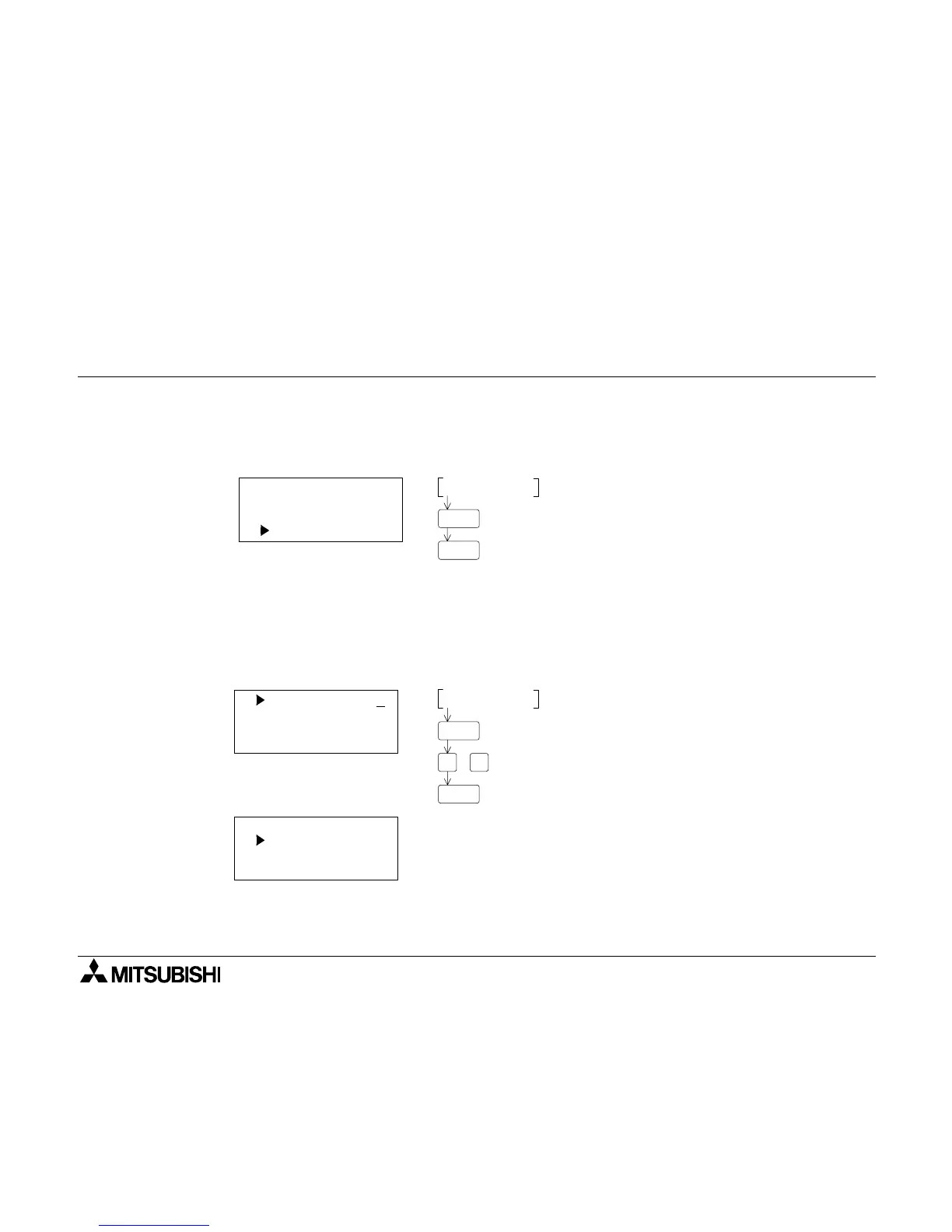

Example: Entering the ORB instruction
Example: Entering "LD X0"
• While the HPP is waiting for input of a device symbol or device No., the prompt is displayed
at the end of the input position.
ORB
Write function
GO
W 4
5
6
7
LDI
AND
ORB
NOP
X 004
X 005
In the step 3)
Display example
1)
2)
3)
Key operation
Instruction words are entered individually:
ANB, ORB, MPS, MRD, MPP, RET, END and NOP
W 0
1
2
3
LD
NOP
NOP
NOP
X 000
In the step 3)
W 0
1
2
3
LD
NOP
NOP
NOP
X 000
X 0
GO
LD
1)
2)
3)
4)
Display example (before determined)
In the step 4)
Display example
(after determined)
Key operation
Write function
Instruction words which are entered together with
a device:
LD, LDI, AND, ANI, OR, ORI, SET, PLS, PLF,
MCR, STL and OUT (excluding T and C)
- When the MCR instruction is entered, the
nesting level symbol "N" is automatically
displayed.
