2-7Operation panel (O/P) functions
2Explanation of functions
(2) Description of the STATUS NUMBER

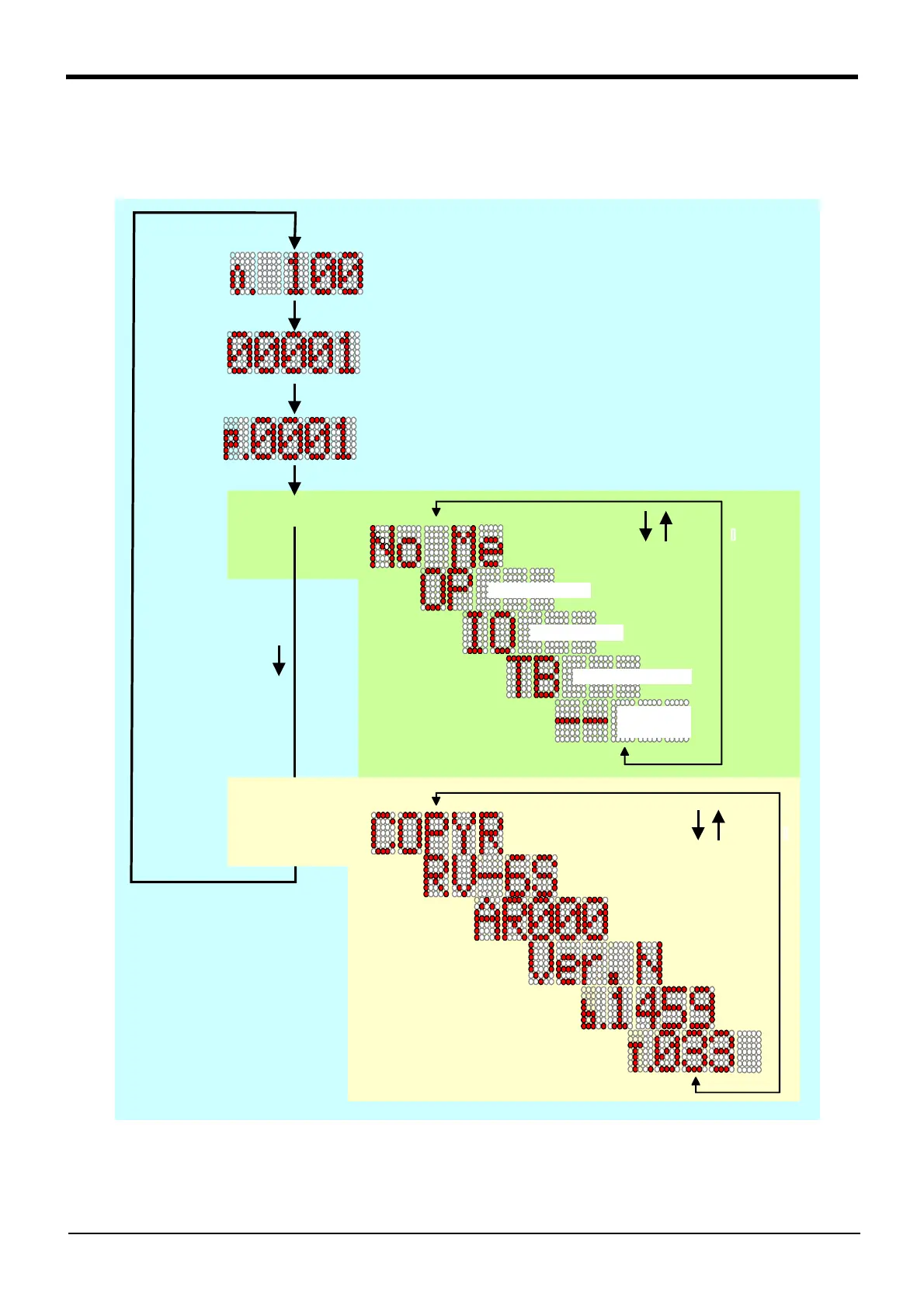

1) Display change of STATUS NUMBER
The display of the display panel can be changed by [CHNG DISP], [ ↑ UP], and [ ↓ DOWN] key.
Override
Program name
Step number
User information
[CHNG DISP]
User
message
right of
operation
Opeertion panel
External signal
Teaching pendant
No right of
operation
[DOWN]
[UP]
Maker information
Mecha
name
Serial number
S/W version
Battery
remaining time
Temperature
Maker
message
[DOWN]
[UP]
*1)
*1)
The user message displays the character string
(alphanumeric character of a maximum of the 32 characters)
set as USERMEG. It can be used as the name and version
name of the application program of the customer.
right of
operation
right of
operation
right of
operation
