3-17 Operation of the teaching pendant menu screens
3Explanation of operation methods
Move the cursor to character"B", and input "M" and "Y" after pressing and deleting the [CLEAR] key.
If the long pushing [CLEAR] key, all the data in the parenthesis can be deleted.
(3) Selecting a menu
A menu can be selected with either of the following two methods.
*Press the number key for the item to be selected.
*Move the cursor to the item to be selected, and press the [EXE] key.

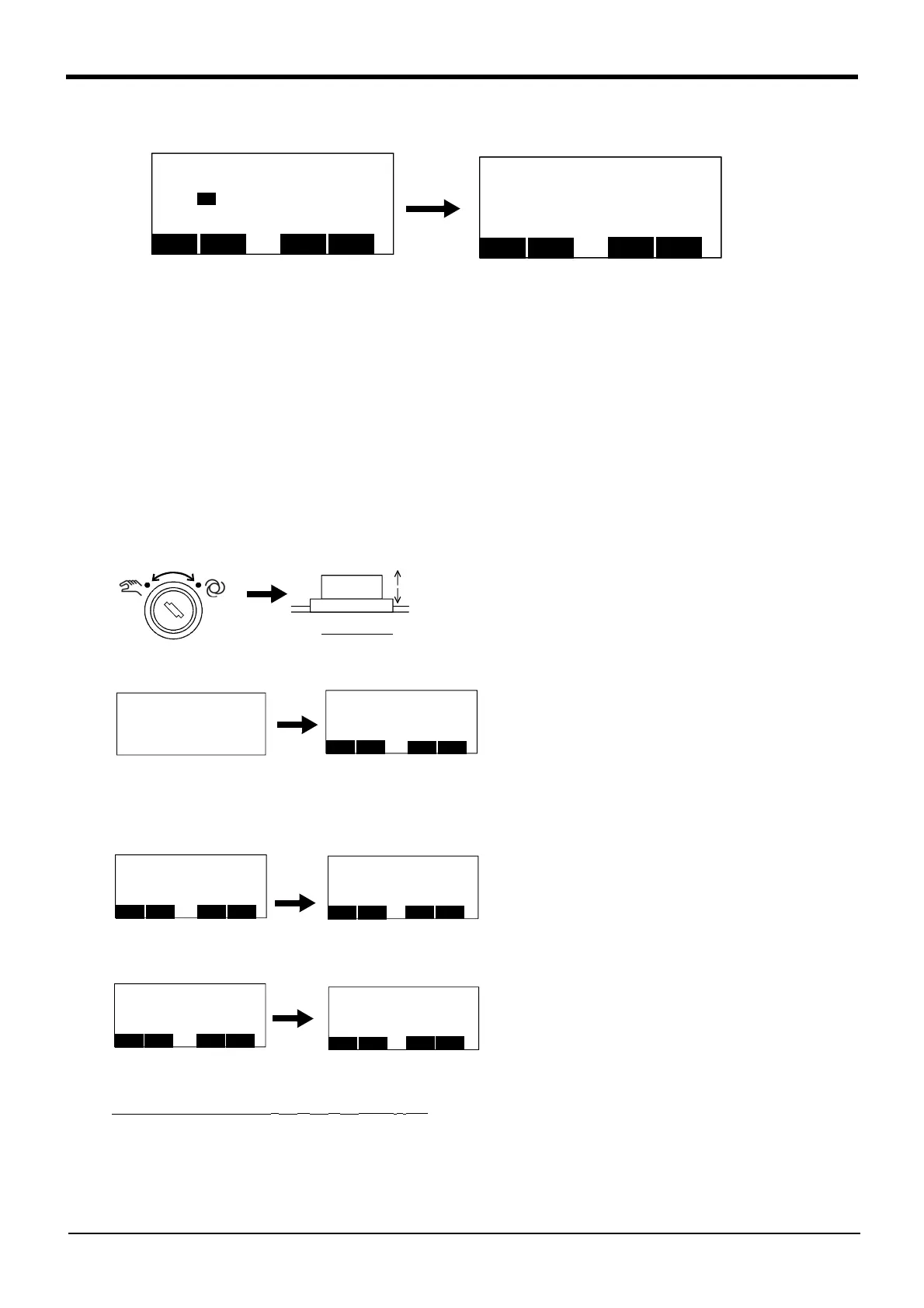

How to select the Management/edit screen ("1. Management/edit") from the menu screen with each method
is shown below.
1) Set the controller [MODE] switch to "MAN-
UAL".
2) Set the T/B to "ENABLE".
3) Press one of the keys (example, [EXE] key)
while the <TITLE> screen is displayed.
The <MENU> screen will appear.
*Press the number key method
1) Press the [1] key. The <Management/edit>
screen will appear.
*Use the arrow key method
1) Press the arrow keys and move the cursor to
"1. Management/edit", and then press the
[EXE] key. The <Management/edit> screen
will appear.
The same operations can be used on the other menu screens.
<NEW PROGRAM>
PROGRAM NAME
( )
CLOSE
ABC
Correction of the input character [ ← ] [CLEAR] [MNO] [WXYZ] [WXYZ] [WXYZ]
<NEW PROGRAM>
PROGRAM NAME
(
ABY )
CLOSE
ABC
Display the MENU screen from the title screen.
MODE
MANUAL AUTOMATIC
Down：
ENABLE
*Lighting
Up ：
DISABLE
Rear of T/B
O/P T/B
MELFA CRnD-7xx Ver. P2T
RV-6SDL
COPYRIGHT (C) 2008 MITSUBISHI ELEC
TRIC CORPORATION ALL RIGHTS RESE
RVED
<MENU>
1.FILE/EDIT 2.RUN
3.PARAM. 4.ORIGIN/BRK
5.SET/INIT.
CLOSE
123
<FILE/EDIT> 1/20 Rem 136320
1 08-04-24 17:20:32 22490
2 08-04-24 14:56:08 694
A1 08-04-24 13:05:54 2208
B1 08-04-24 13:05:54 1851
COPY
123
POSI.
EDIT
NEW
⇒
<MENU>
1.FILE/EDIT 2.RUN
3.PARAM. 4.ORIGIN/BRK
5.SET/INIT.
CLOSE
123
Move the cursor - set [ ↑ ] [ ↓ ] [ ← ] [ → ] + EXE
<MENU>
1.FILE/EDIT 2.RUN
3.PARAM. 4.ORIGIN/BRK
5.SET/INIT.
CLOSE
123
<FILE/EDIT> 1/20 Rem 136320
1 08-04-24 17:20:32 22490
2 08-04-24 14:56:08 694
A1 08-04-24 13:05:54 2208
B1 08-04-24 13:05:54 1851
COPY
123
POSI.
EDIT
NEW
⇒
