3-21 Jog Feed (Overview)
3Explanation of operation methods

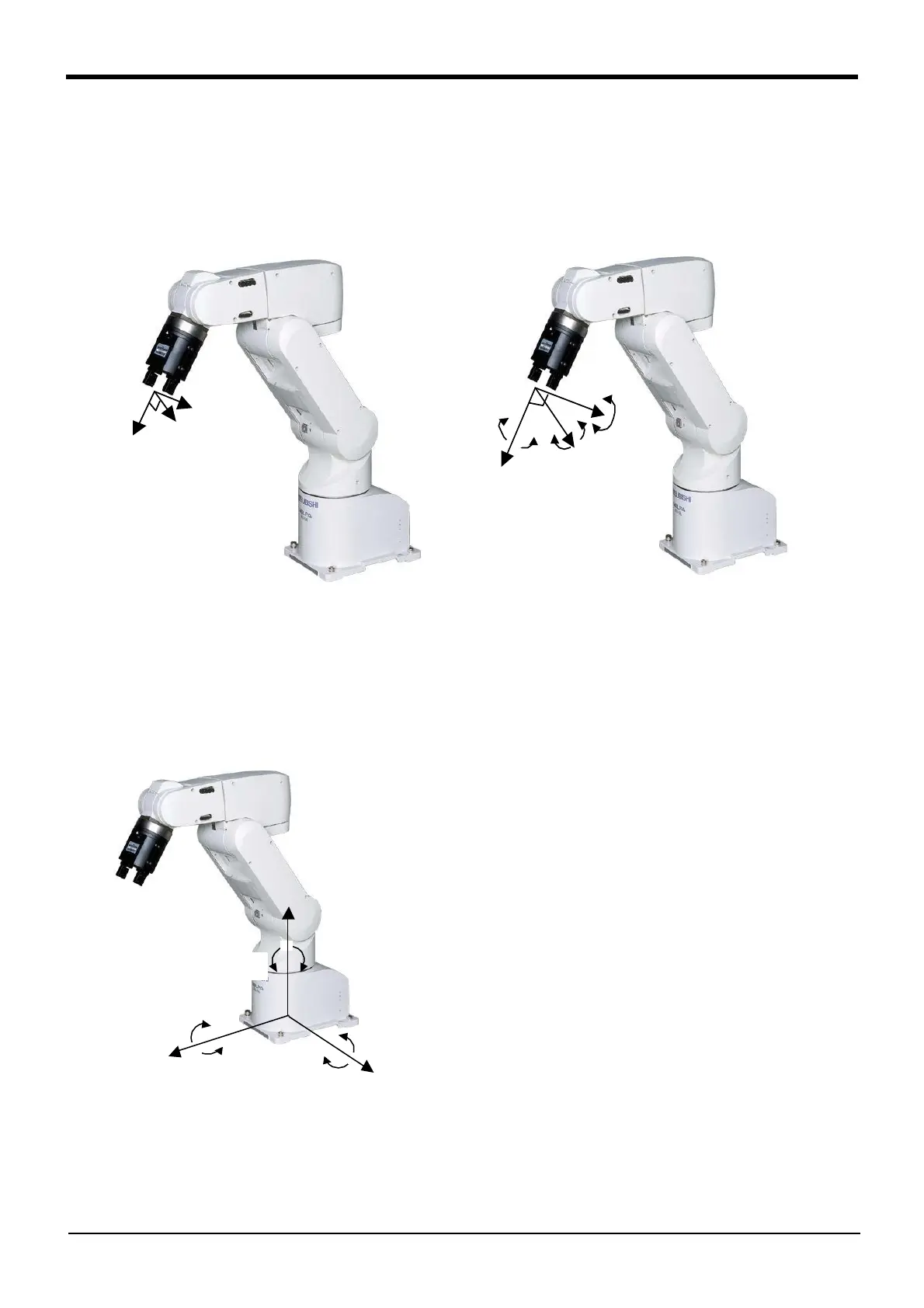

3.2.4 TOOL jog
Adjusts the coordinates of each axes along the direction of the hand tip.
The X, Y, and Z axis coordinates are adjusted in mm units. The A, B, and C axis coordinates are adjusted in
angle units.
3.2.5 XYZ jog
Adjusts the axis coordinates along the direction of the robot coordinate system.
The X, Y, and Z axis coordinates are adjusted in mm units. The A, B, and C axis coordinates are adjusted in
angle units.
+Z
+Y
+X
＋Ａ
＋Ｃ
＋Ｂ
－Ｃ
－Ｂ
－Ａ
＋Ｚ
＋Ｙ
＋Ｘ
＋Ａ
－Ａ
＋Ｂ
－Ｂ
＋Ｃ
－Ｃ
