5-381 About ROM operation/high-speed RAM operation function
5Functions set with parameters

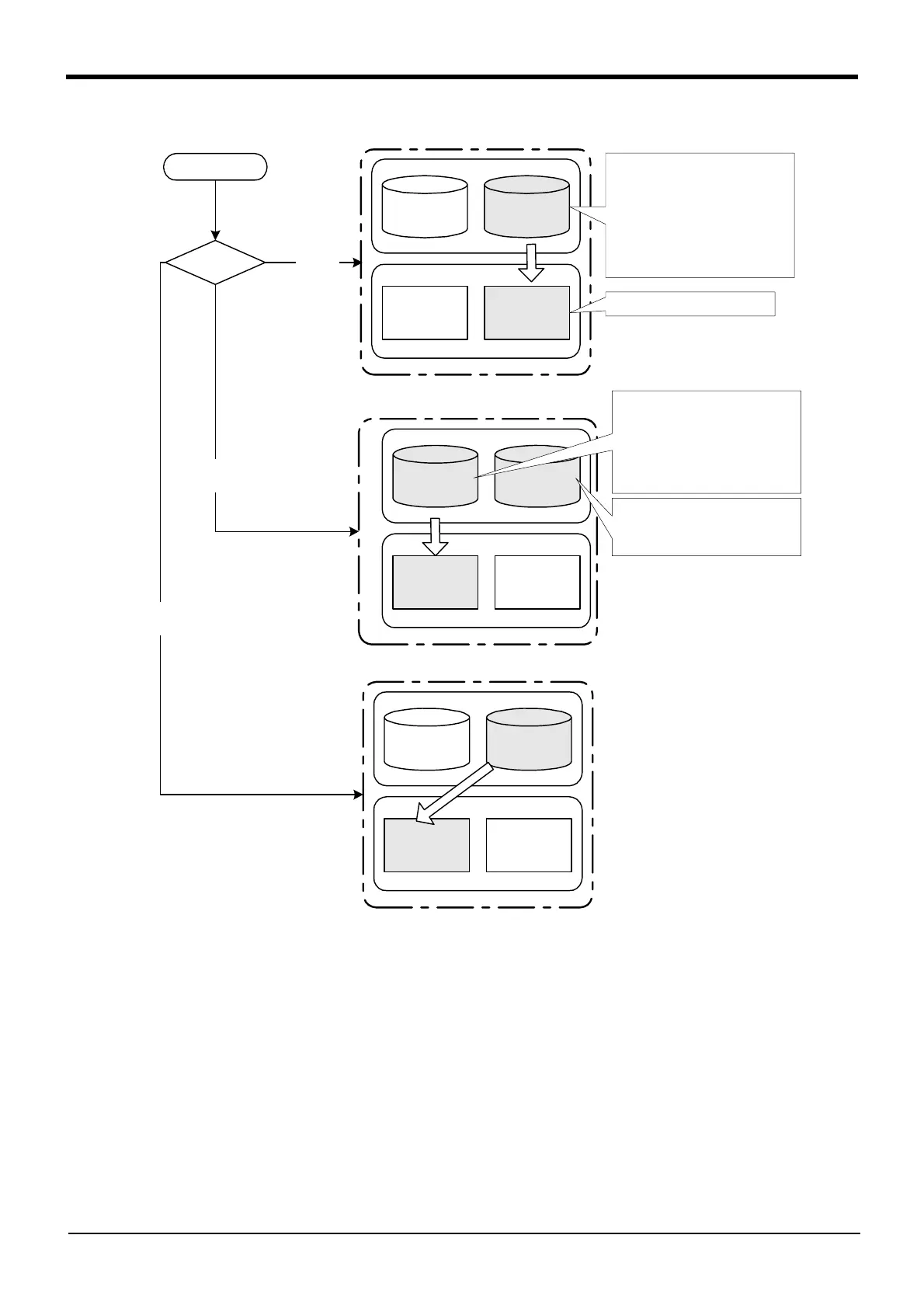

Table 5-13:ROM operation/high-speed RAM operation function image
DRAM is used as execution memory during ROM operation/high-speed RAM operation; it can perform lan-
guage processing at a maximum speed of about 1.2 times faster than that of SRAM memory used for nor-
mal RAM operation. (The speed varies depending on the contents of each program.)
Note that the operations of the robot, such as program execution and step operation, can be performed sim-
ilar to RAM operations (when starting in the RAM mode); however, there are restrictions on some opera-
tions. Please refer to the following precautions.
parameter
ROMDRV
Power ON
ROM
mode (1)
RAM
mode(0)
high-speed RAM
mode (2)
File System
ROM Area
SRAM Area
Exection Area
DRAM Aerea
(high-speed
Execution)
SRAM Area
(Save enabled)
･Target of executable programs.
･Programs to be backed up.
･Changing parameters.
･Saving error logs.
･Reading programs.
･Editing (writing) programs.
･Copying, moving and renaming programs.
･Files to be access by the OPEN instruction.
・Program Exection Area.
・Save the execution result.
・Save the execution result.
File System
ROM Area
SRAM Area
Exection Area
DRAM Aerea
(high-speed
Execution)
SRAM Area
(Save enabled)
File System
ROM Area
SRAM Area
Exection Area
DRAM Aerea
(high-speed
Execution)
SRAM Area
(Save enabled)
･Target of executable programs.
･Programs to be backed up.
･Reading programs.
→ Enble
･Editing (writing) programs.
･Copying, moving and renaming programs.
・rename → Error
･Changing parameters.
･Saving error logs.
･Files to be accessed by the OPEN
instruction.
