3Explanation of operation methods
Operating the monitor screen
3-66
3) The compulsive output of the output signal.
In the following, the operation method in the case of turning off the output signal No. 8 compulsorily is
shown.
Press the function key corresponding to "Number".
Set "8" as the start number.
"番号"に対応するファンクションキー[F1]を押します。
開始番号と 出力値を設定する画面を表示し ますので、 開始番号に "8" を設定 し ます。 （[8]、 [EXE]
キーを押し ます）
4) Move the cursor to the position of "8" of the output value by the arrow key.
Since the output signal 8 number is turned on now, value"1" is displayed.
If the value is changed into "0" which shows OFF and the function key ([F1]) corresponding to the
"Output" is pressed, this output signal will actually be off.
5) Press the function key corresponding to "Close", and return to the output monitor screen.
6) Press the function key corresponding to "Close", and return to the monitor menu screen.

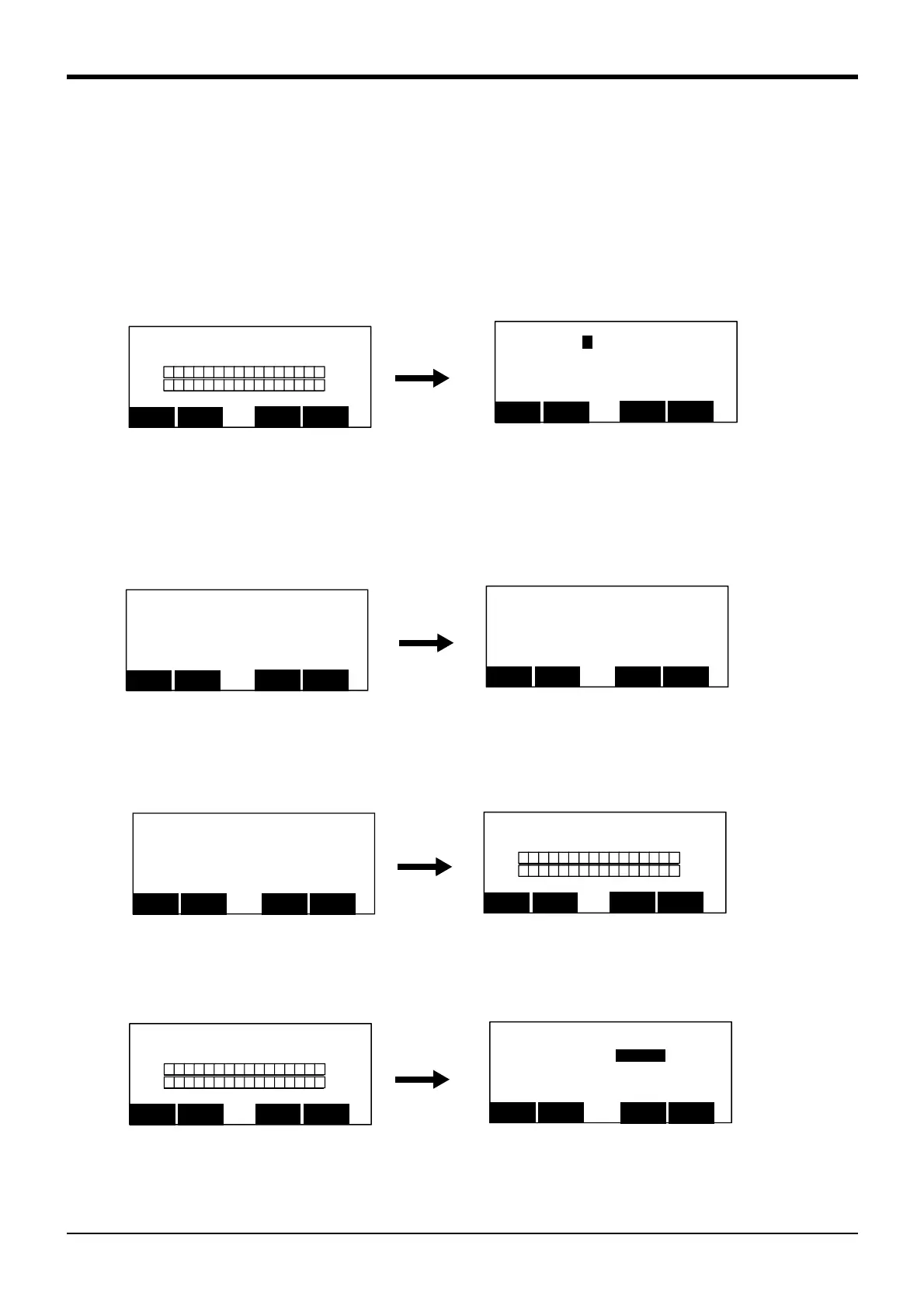

<OUTPUT>
