6
PRE-OPERATIONAL PROCEDURES AND SETTINGS
6.2 Pre-Operational Procedures and Settings
6 - 2
1
OVERVIEW
2
SYSTEM
CONFIGURATION
3
SPECIFICATIONS
4
MODBUS(R) STANDARD
FUNCTIONS
5
FUNCTION
6
PRE-OPERATIONAL
PROCEDURES AND
SETTINGS
7
PARAMETER SETTING
8
UTILITY PACKAGE
(GX Configurator-MB)
6.2 Pre-Operational Procedures and Settings
A rough procedure for operation is shown below.

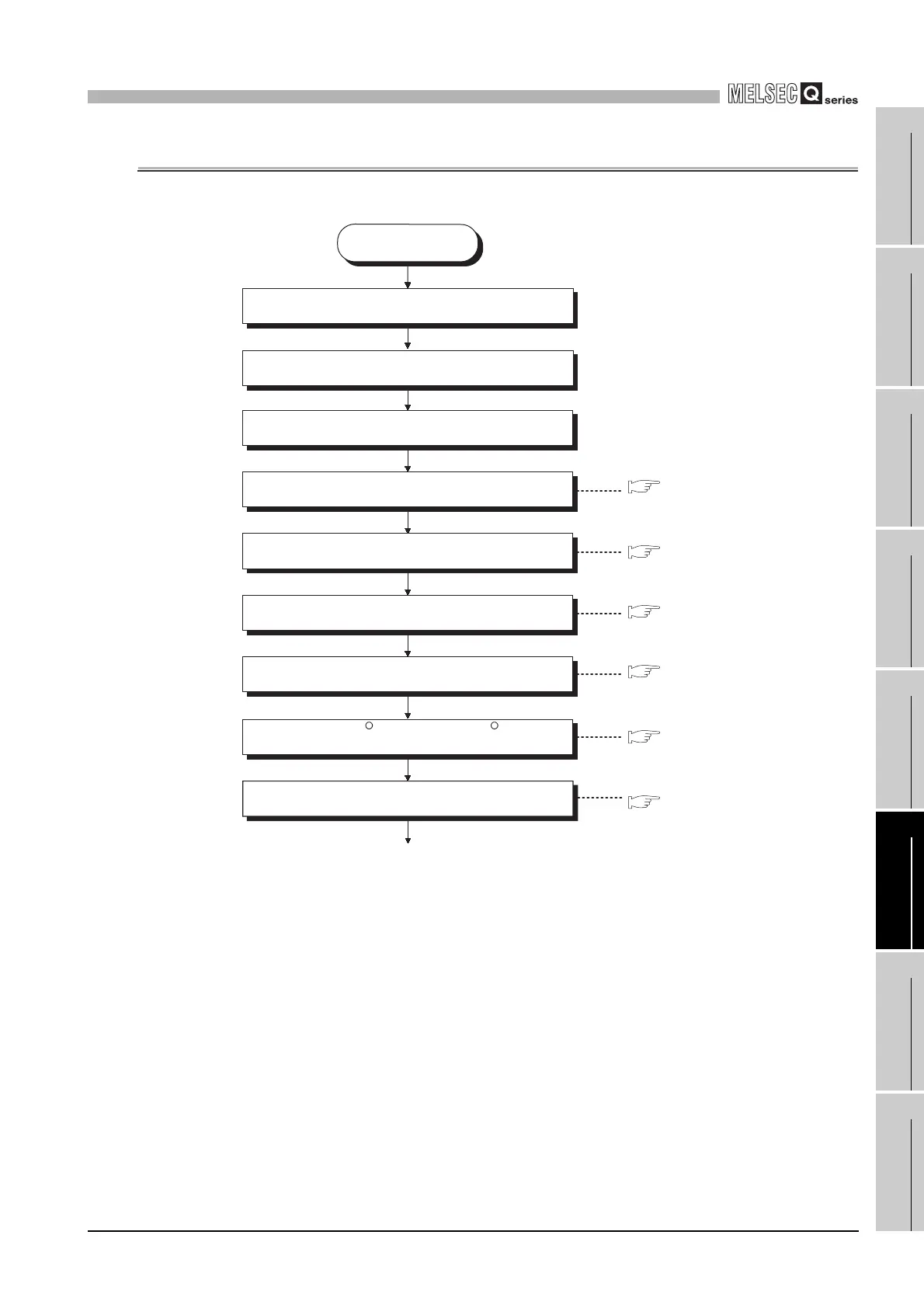

Figure 6.1 Pre-operational procedures and settings
Procedure for operation
Confirm the devices to be used and specifications.
Mount the QJ71MB91 on the base unit.
Connect GX Developer and programmable controller
CPU via a cable.
Perform the hardware test.
Perform the self-loopback test.
Set the I/O assignment with GX Developer.
Set the intelligent function module switches with GX
Developer.
Connect the MODBUS master device/MODBUS slave device
to the QJ71MB91 with a cable.
R
Confirm the function parameters to be used.
(To next page)
R
Section 6.4.1
Section 6.4.2
Section 6.6
Section 6.6
Section 6.4
CHAPTER 7
