8.3 Utility Package Operation
8.3.3 Starting the Intelligent function module utility
8
UTILITY PACKAGE (GX Configurator-MB)
8.3.3 Starting the Intelligent function module utility
[Operating procedure]
Intelligent function module utility is started from GX Developer.
[Tools] [Intelligent function utility] [Start]
[Setting Screen]
[Explanation of items]
(1) Activation of other screens
Following screens can be displayed from the intelligent function module utility screen.
(a) Initial setting screen
"Start I/O No.
*1
" "Module type" "Module model name"
(b) Auto refresh setting screen
"Start I/O No.
*1
" "Module type" "Module model name"
(c) Select monitor/test module screen
[Online] [Monitor/Test]
* 1 Enter the start I/O No. in hexadecimal.
(2) Command buttons

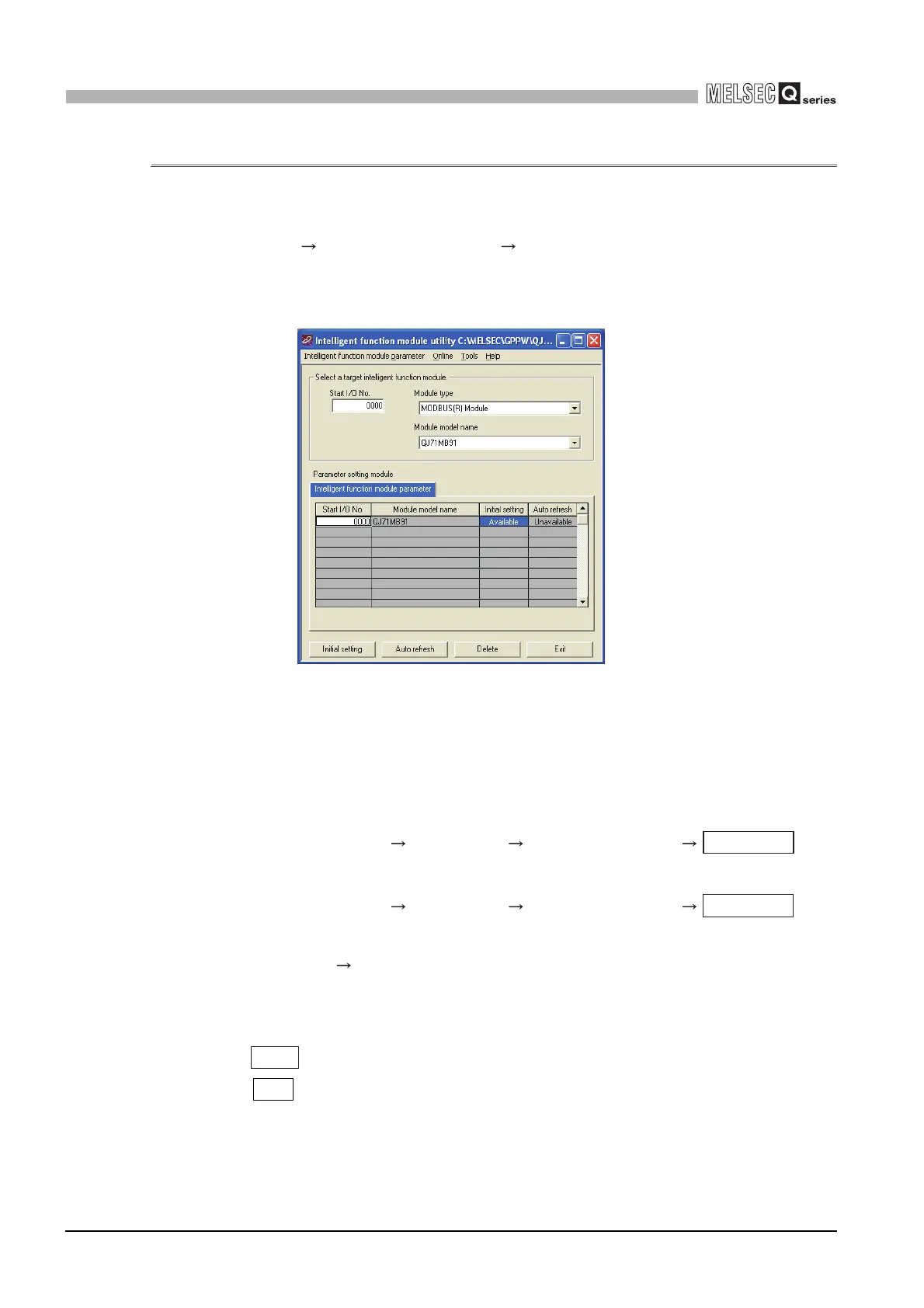

Figure 8.6 Intelligent function module utility
Deletes the initial setting and auto refresh setting of the selected module.
Closes this screen.
Initial setting
Auto refresh
Delete
Exit
