8.6.4 Error log
[Monitor Purpose]
Display the errors that occurred in the QJ71MB91.
Error logs are displayed in reverse chronological order (the latest error is displayed as
No.1).
[Operating procedure]
Monitor/test Screen
[Monitor Screen]
[Monitor Items]

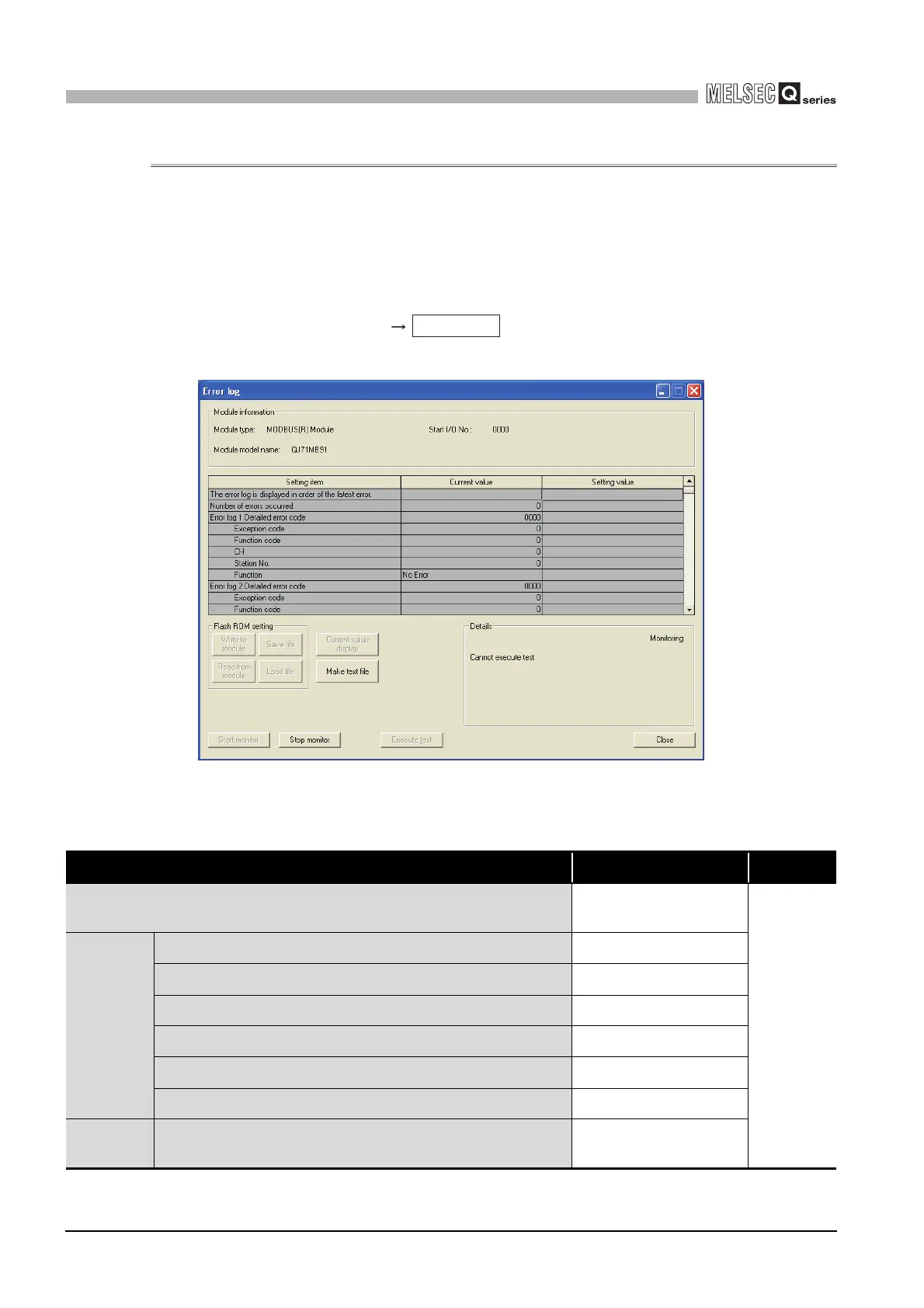

Figure 8.16 Error log screen
Table8.15 Setting items on the Error log screen
Monitor item Buffer memory address Reference
Number of errors occurred
0CFE
H
(3326)
Section 11.4.1
No. 1
Detailed error code 0D00H(3328)
Exception code 0D01H(3329)
Function code 0D02H(3330)
CH 0D03H(3331)
Station No. 0D04H(3332)
Function 0D07H(3335)
No.2 to 32 (Same as in No. 1)
0D08
H to 0DFFH
(3336 to 3583)
Error log
