11.5 Turning Off the ERR. LED
11.5.1 Turning off the ERR. LED by GX Configurator-MB
11
TROUBLESHOOTING
11.5 Turning Off the ERR. LED
This section explains how to turn off the ERR.LED of the QJ71MB91 when it is lit.
POINT
1. Remove possible error cause before turning off the ERR. LED.
( Section 11.1, Section 11.4)
If not, the following operation will not turn off the ERR. LED.
2. The ERR. LED turns on when an error occurs.
Once the ERR. LED has turned on, it does not turn off automatically even if
the status returns to normal.
Perform the following to turn off the ERR. LED.
11.5.1 Turning off the ERR. LED by GX Configurator-MB
This section explains how to turn off the ERR. LED from GX Configurator-MB.
(1) Making the Monitor/test screen active
Make the Monitor/test screen active.( Section 8.6)
Table11.17 List of methods for turning off the ERR. LED
Method Reference
Turning off by GX Configurator-MB Section 11.5.1
Turning off by sequence program Section 11.5.2
Turning off by request message from master
(when the QJ71MB91 is a slave)
Section 11.5.3

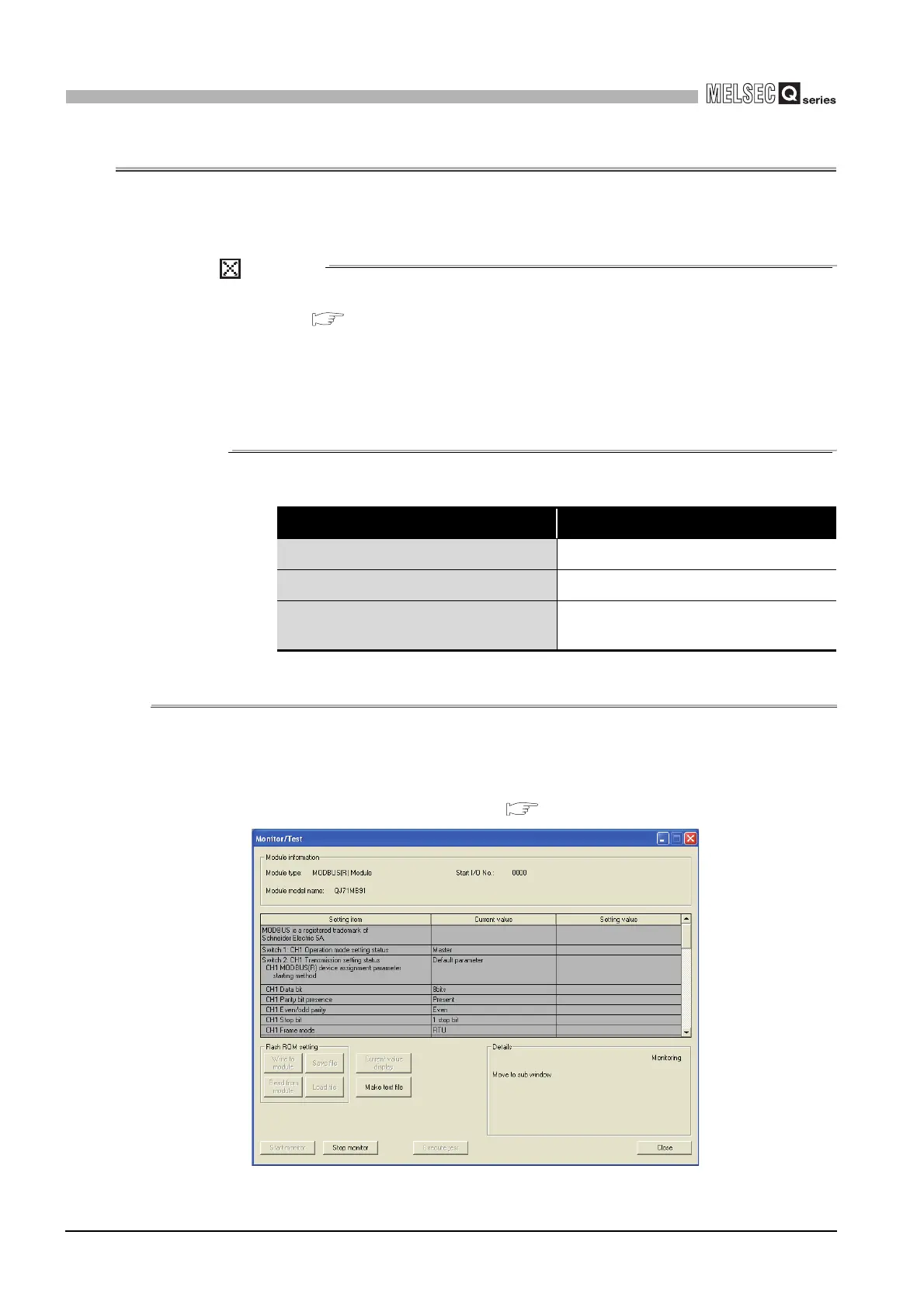

Figure 11.8 Monitor/test screen
