UTILITY PACKAGE (GX Configurator-MB)
8.6.2 MODBUS(R) device assignment parameter status
[Monitor Purpose]
Monitor the setting status of the MODBUS device assignment parameters.
[Operating procedure]
Monitor/test screen
[Monitor Screen]
[Monitor Items]

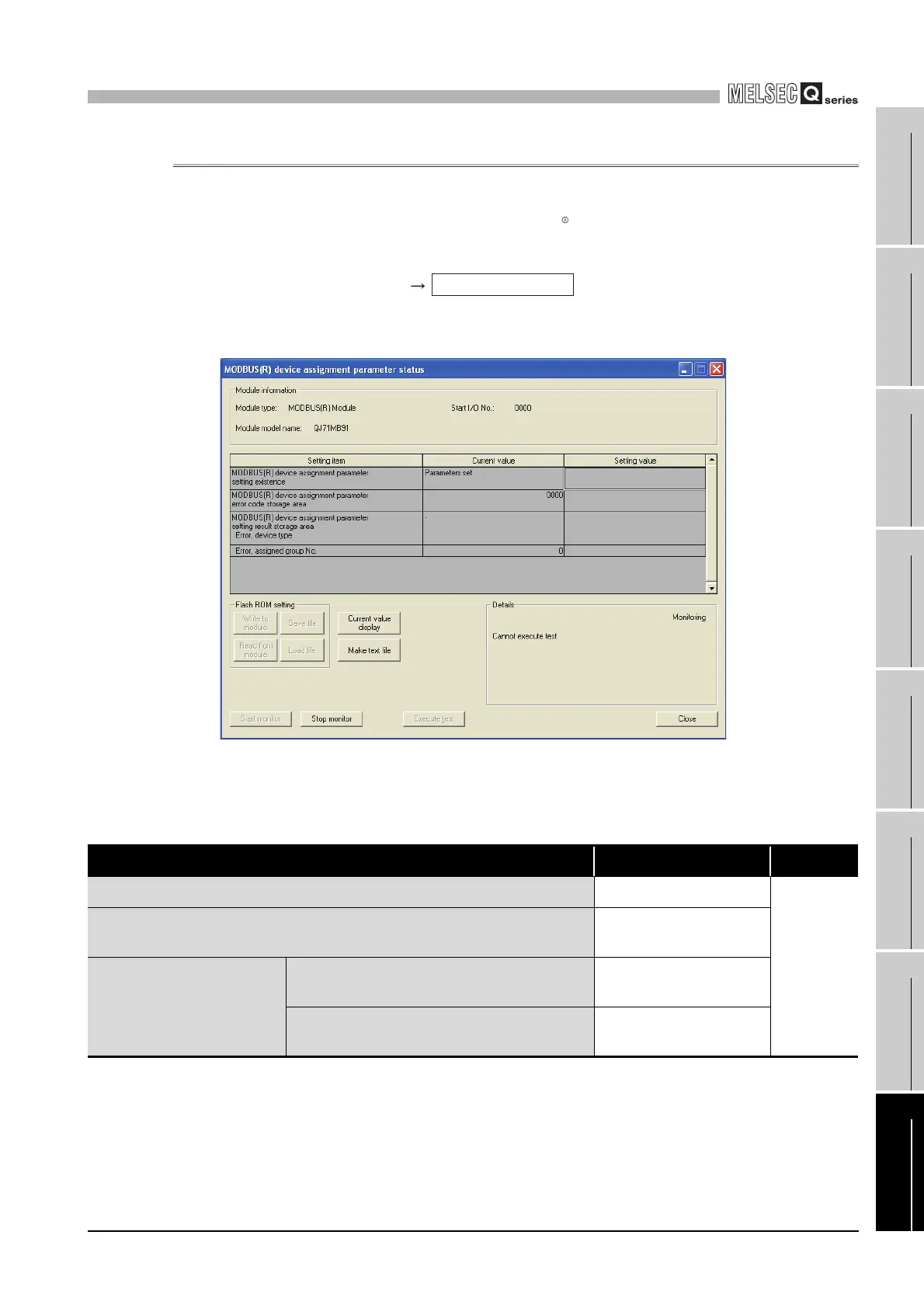

Figure 8.14 MODBUS(R) device assignment parameter status screen
Table8.13 Setting items on the MODBUS(R) device assignment parameter status screen
Monitor item Buffer memory address Reference
MODBUS(R) device assignment parameter setting existence -
Section 11.4.1
MODBUS(R) device assignment parameter error code storage area
0C13
H
(3091)
MODBUS(R) device assignment
parameter setting result storage
area
Error, device type
0C14
H
(3092)
Error, assigned group No.
0C15
H
(3093)
MODBUS(R) device
