UTILITY PACKAGE (GX Configurator-MB)
8.4 Initial Setting
[Purpose]
Set parameters on the initial setting screen.
This setting eliminates the need for parameter setting by sequence programs.
The initial setting are as follows:
• Automatic communication parameter
• MODBUS device assignment parameter
[Operating procedure]
"Start I/O No. " "Module type" "Module model name"
[Setting Screen]
[Explanation of items]
(1) Parameter settings
Select a button under the Setting value, and set parameters on the corresponding
screen.
• Automatic communication parameter ( Section 8.4.1)
• MODBUS device assignment parameter ( Section 8.4.2)
(2) Command buttons

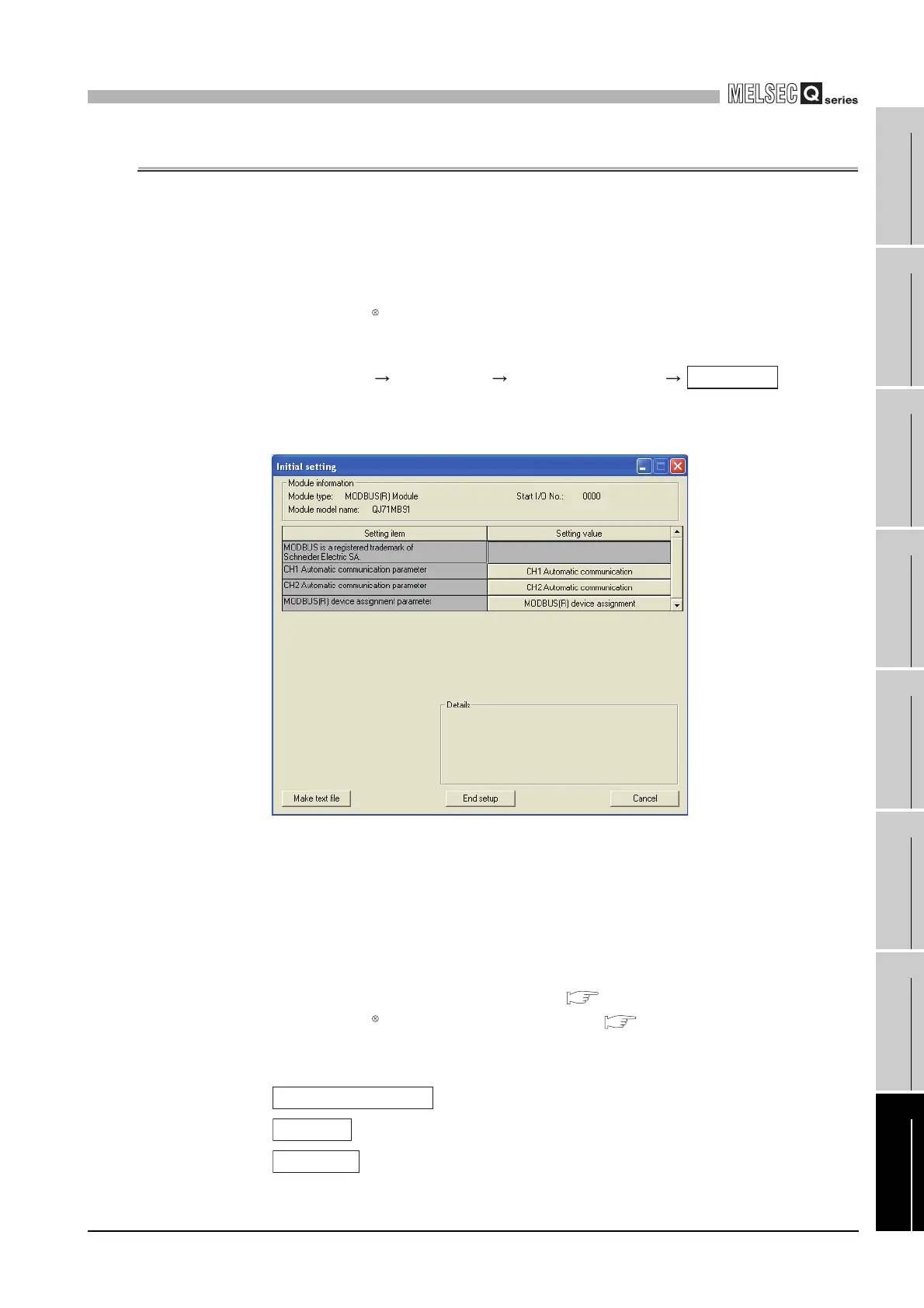

Figure 8.7 Initial setting screen
Creates a file containing the screen data in text file format.
Saves the set data and ends the operation.
Cancels the setting and ends the operation.
Initial setting
Make text file
End setup
Cancel
