Mitsubishi QJ71MB91 User Manual

2
SYSTEM CONFIGURATION
2.3 Precautions for System Configuration
2 - 8
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
MODBUS(R) STANDARD FUNCTIONS
5
FUNCTION
6
PRE-OPERATIONAL PROCEDURES AND SETTINGS
7
PARAMETER SETTING
8
UTILITY PACKAGE (GX Configurator-MB)
2.3 Precautions for System Configuration
(1) For Use with Redundant CPU
(a) About dedicated instructions
Dedicated instructions cannot be used.
Instead of the MBRW instruction, use the automatic communication function.
( Section 9.2.1, Section 9.3.1)
The MBREQ instruction cannot be used.
The UINI instruction cannot be used.
(b) GX Configurator-MB
GX Configurator-MB cannot be used when accessing the redundant CPU via an
intelligent function module on an extension base unit from GX Developer.
Connect a personal computer with a communication path indicated below.

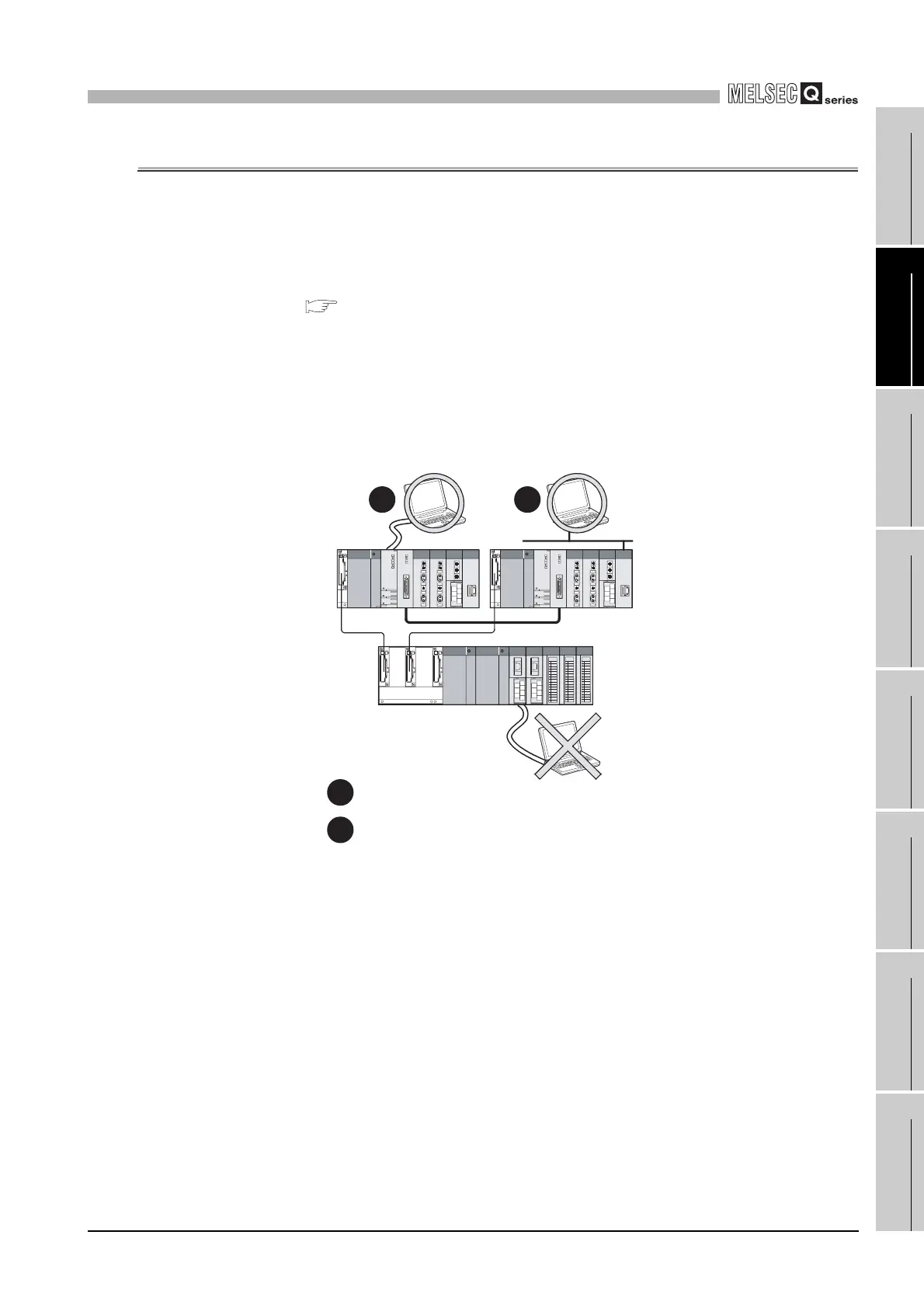

Figure 2.12 Communication paths available for GX Configurator-MB
Main base unit
Extension base unit
1 2
Direct connection to the CPU
Connection through an intelligent function module on the main base unit
(Through Ethernet module, MELSECNET/H module, or CC-Link module)
(GX Configurator-MB cannot be used.)
1
2
