8.6 Monitor/Test
8
UTILITY PACKAGE (GX Configurator-MB)
8.6 Monitor/Test
[Monitor/Test Purpose]
From this screen, start the monitoring or test of the QJ71MB91 operating status, I/O
signals, parameter setting status, automatic communication status, error log or
communication status.
[Operating procedure]
"Select monitor/test module" screen "Start I/O No.
*1
" "Module type" "Module
model name"
* 1 Enter the start I/O No. in hexadecimal.
The screen can also be started from System monitor of GX Developer Version 6 or
later.
( GX Developer Operating Manual)

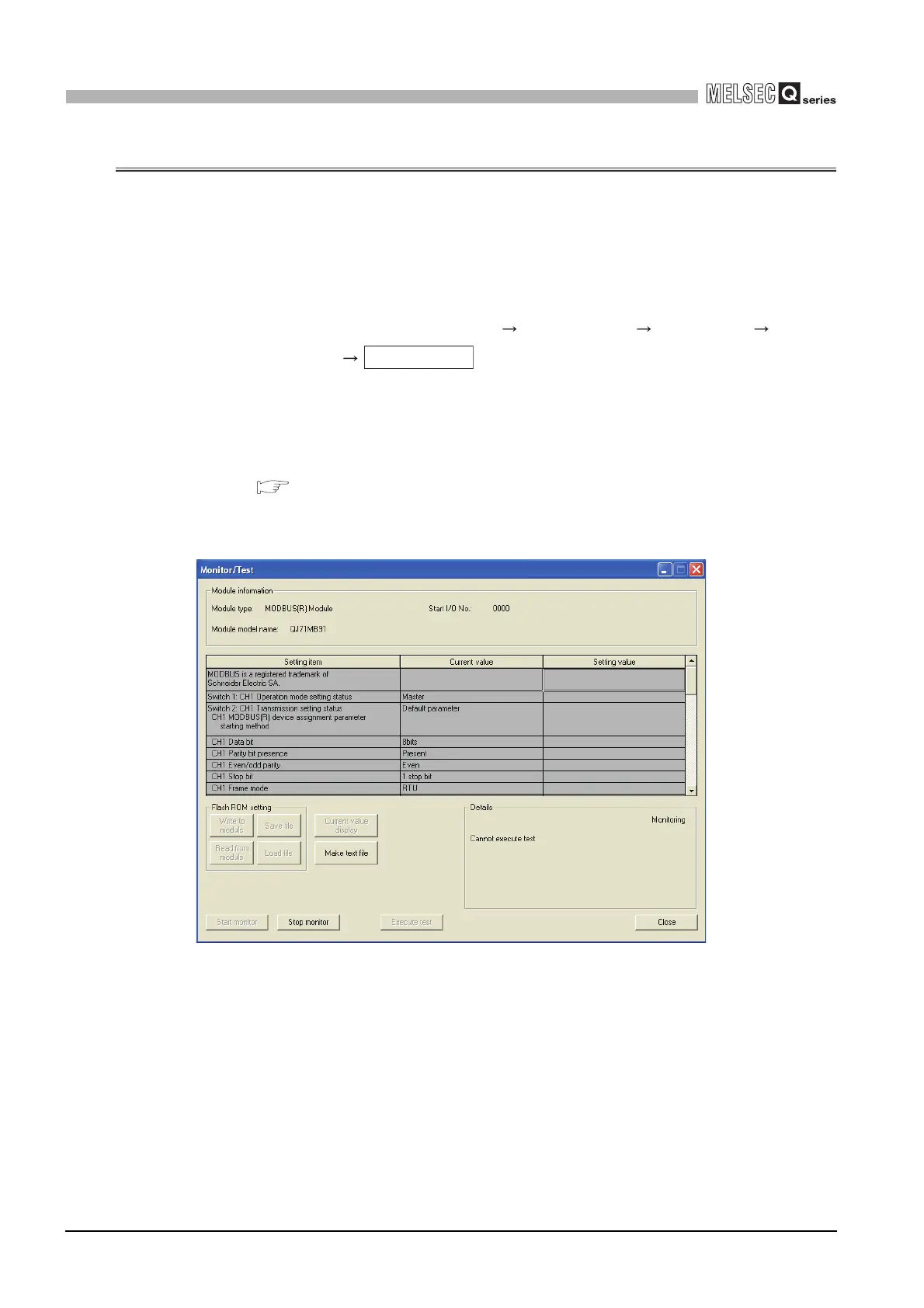

[Monitor/Test Screen]
Figure 8.11 Monitor/Test screen
Monitor/Test
