6.6 Intelligent Function Module Switch Setting
6
PRE-OPERATIONAL PROCEDURES AND SETTINGS
6.6 Intelligent Function Module Switch Setting
Set the operation mode, transmission speeds, transmission settings and station numbers.
(1) Setting procedures
1. Start the GX Developer.
2. Double-click "PLC parameter" in the project
window of GX Developer.
3. Click the "I/O assignment" tab to display the I/O
assignment setting screen.
Set the following to the slot where the
QJ71MB91 is mounted.
Type : Select "Intelli".
Model name : Enter the model name of the
module.
Points : Select 32 points.
Start XY : Enter the QJ71MB91 head
input/output numbers.
Detailed setting : Specify the control CPU of the
QJ71MB91 in a multiple CPU
system.
4. Click the I/O assignment settings screen
button to display the screen on
the left.
Referring to steps (2) and later in this section,
make switch settings.
Entering the values in hexadecimal makes the
setting easy.
Change the input format into HEX before enter-
ing the values.

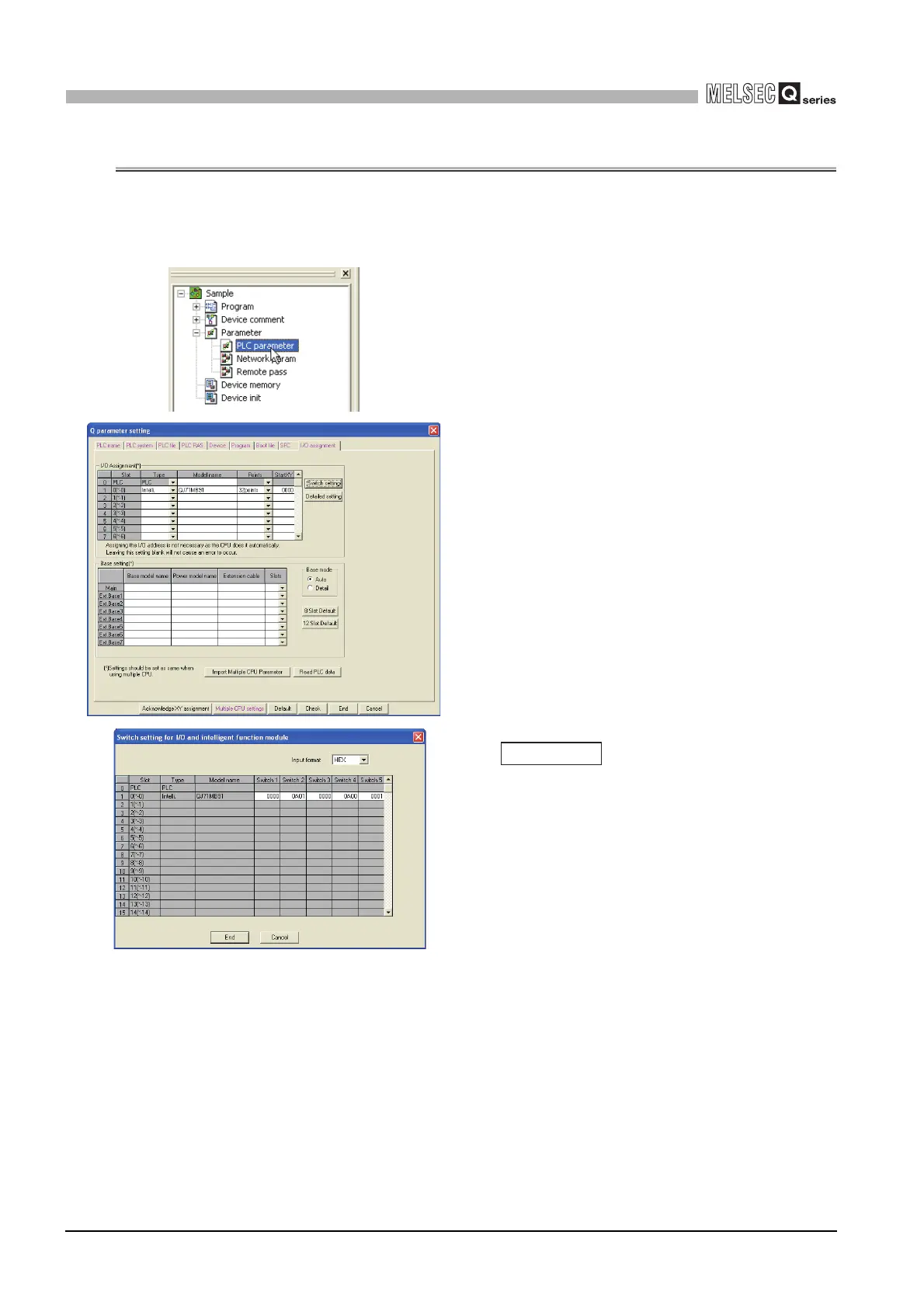

Figure 6.20 Intelligent function module switch setting procedure
5. After setting, write the data to the programmable
controller, and power the programmable
controller OFF, then ON or reset the
programmable controller CPU.
Switch setting
