Mitsubishi QJ71MB91 User Manual

9
PROGRAMMING
9.2 Program Example for Normal System Configuration
9.2.3 When using the automatic communication function and the communication by dedicated instructions on the same channel
9 - 24
9
PROGRAMMING
10
DEDICATED INSTRUCTIONS
11
TROUBLESHOOTINGAPPENDICESINDEX
POINT
When using the automatic communication function and dedicated instructions on
the same channel, add the above section to the sequence program.
(Perform the same in the case of the MBREQ instruction)

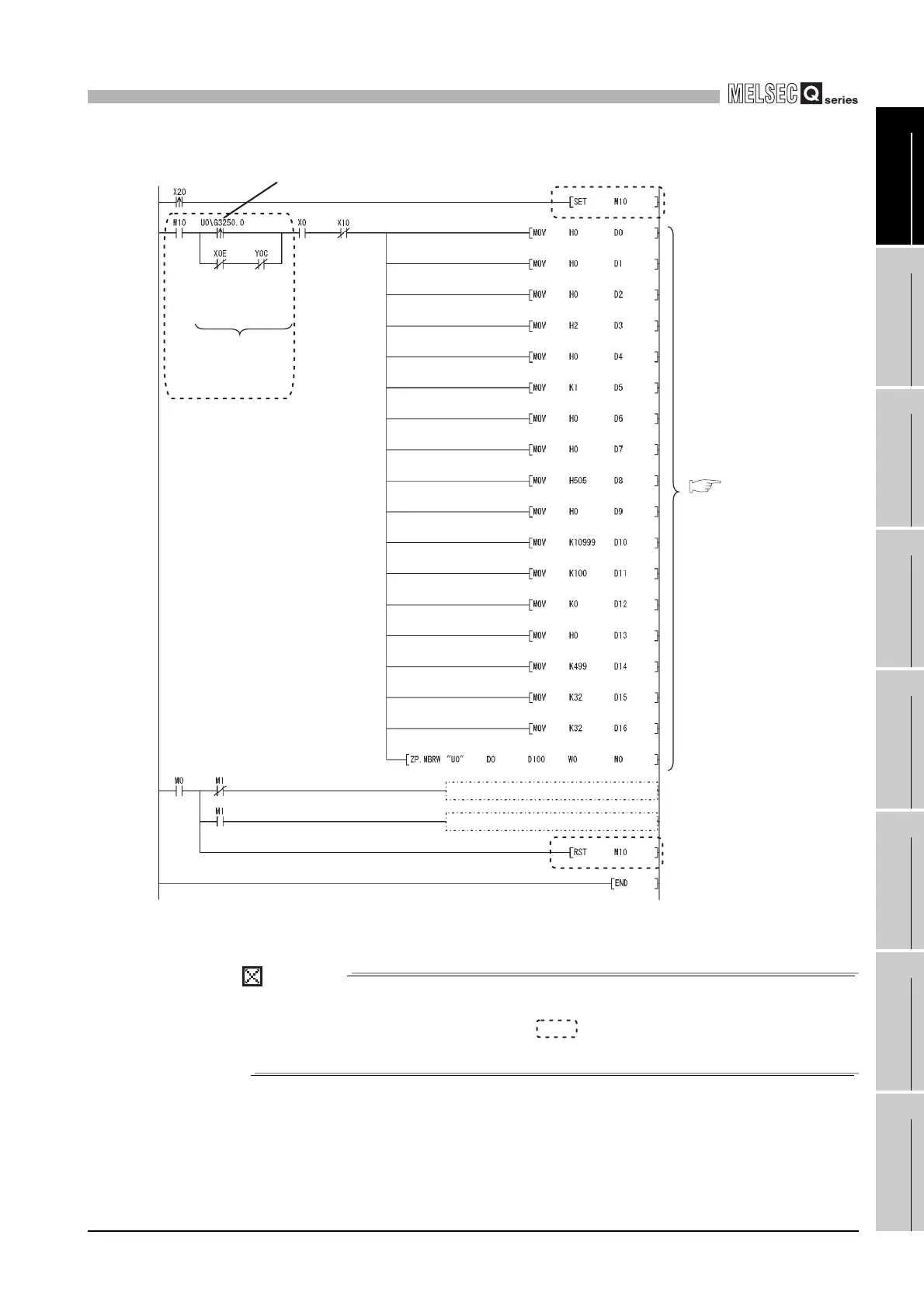

Figure 9.24 Program example for executing dedicated instruction during ready status of automatic communication
parameter 1 on channel 2
Latch this when the start
command is a rise command.
Processing for error completion
CH2 Automatic
communication
operation status
Processing for normal completion
CH2 Automatic communication ready status storage area
(Automatic communication parameter 1)
CH2 Automatic
communication
parameter setting
request/Automatic
communication
start request
Add X0E and Y0C to execute
dedicated instructions even if
automatic communication is
stopped.
When the dedicated instruction
completes, reset the latched
start command.
Intelligent function
module switch
setting change
status
Section 10.2,
Section 10.3
