9
PROGRAMMING
9.3 Program Examples for Use in MELSECNET/H Remote I/O Network
9.3.1 Automatic communication parameters
9 - 30
9
PROGRAMMING
10
DEDICATED INSTRUCTIONS
11
TROUBLESHOOTINGAPPENDICESINDEX
(3) Parameter settings
The following setting is required to perform the communication shown in (2).

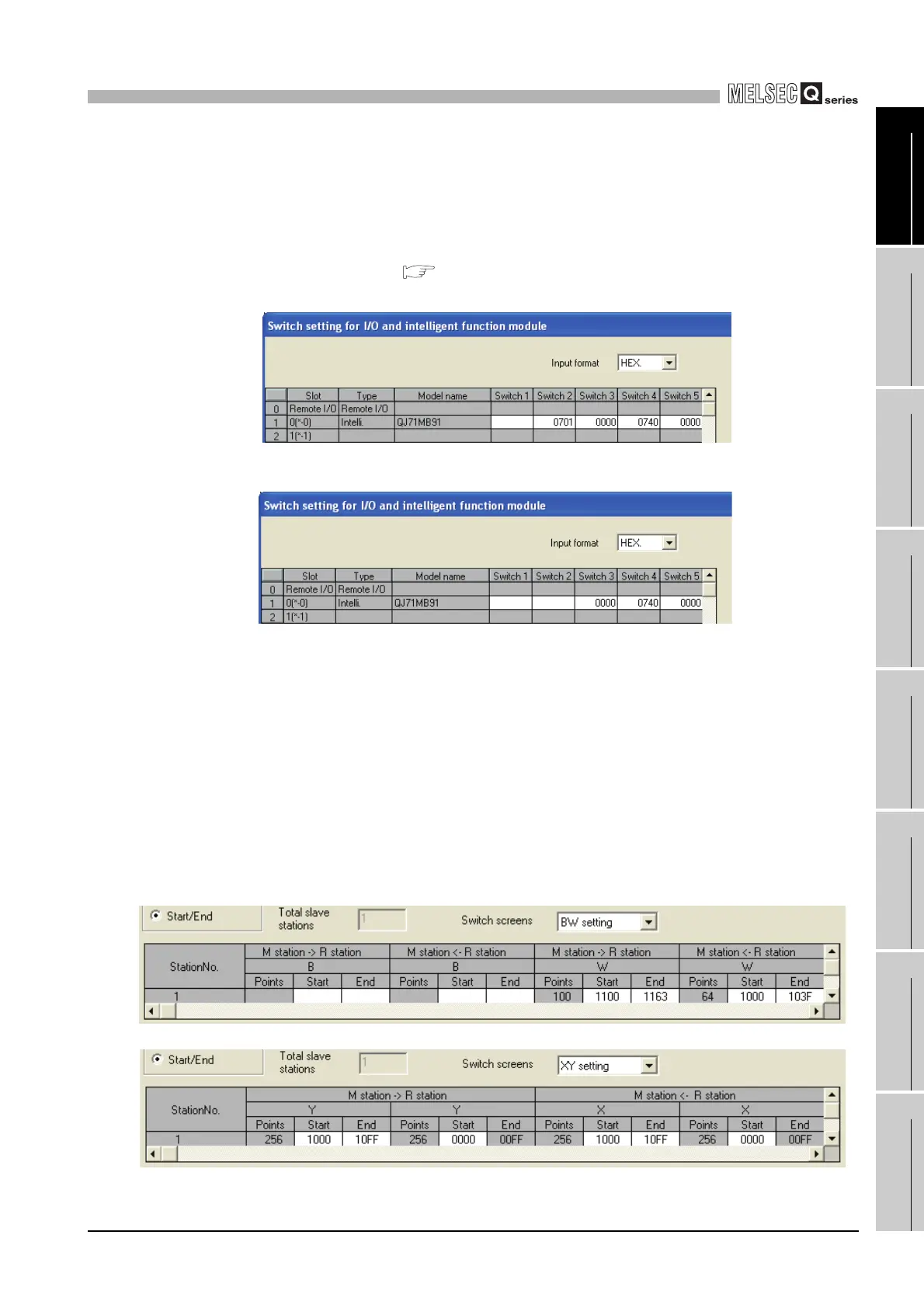

(a) Intelligent function module switch setting
Set the intelligent function module switches for the setting target, QJ71MB91, as
shown below. ( Section 6.6)
1) When using GX Configurator-MB
Figure 9.28 Intelligent function module switch setting (When using GX Configurator-MB)
2) When not using GX Configurator-MB
Figure 9.29 Intelligent function module switch setting (When not using GX Configurator-MB)
(b) Network parameter
Set the following network parameters for the MELSECNET/H remote master
station by GX Developer.
1) Network type : MNET/H (Remote master)
2) Starting I/O No. : 0000
H
3) Network No. : 1
4) Total stations : 1
5) Mode : On line
6) Network range assignment
• When using GX Configurator-MB
Figure 9.30 Network range assignment (When using GX Configurator-MB)
