Sec 1: 10-2
Exploded Views and Parts Lists
: APX 5000/ APX 6000/ APX 6000Li Dual Display (Full Keypad) Exploded View
10.1
APX 5000/ APX 6000/ APX
6000Li Dual Display (Ful
l Keypad) Exploded V
iew

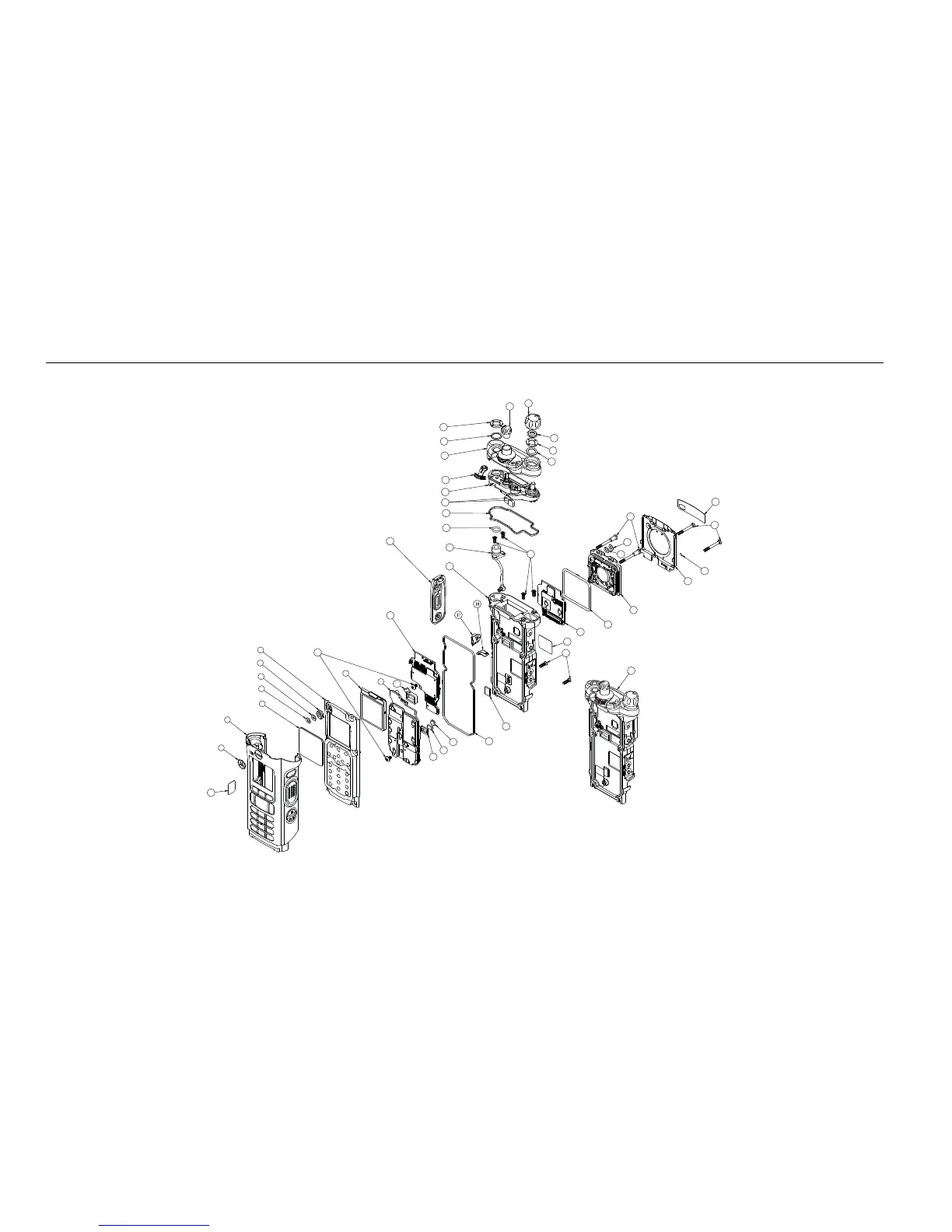

Figure 10-1. APX 5000/ APX 6000/ APX 6000Li Dual Display (Full Keypad) Exploded View
47
2
1
7
6
5
4
3
45
8
9
13
14
46
15
20
16
22
23
21
25
24
26
27
28
29
30
31
32
44
42
50
36
37
39
41
40
38
34
35
33
48
43
19
49
12
11
10
NOTE:
Kit NHN7015_ includes Items #15, 21, 22, 24–32
and 43. When purchasing this kit, need to
purchase item 23 (qty
. 2) together
.
149
151
