Disassembly/Reassembly Procedures: Radio Reassembly Sec 2: 8-35
8.9.1.5 Assemble Back Chassis Assembly (B, N)
Dual Display versions:
1. Inspect the Back Chassis Assembly Seal for any debris or foreign material.
2. Connect the Back Chassis Flex to the VOCON board (D).
3. Place the Main Seal (54) onto the main chassis groove. Gently seat the seal around the
perimeter of the groove, ensuring the key feature is oriented as shown in Figure 8-47.
4. Set the Back Chassis Assembly (B) onto the Main Chassis Assembly (E).

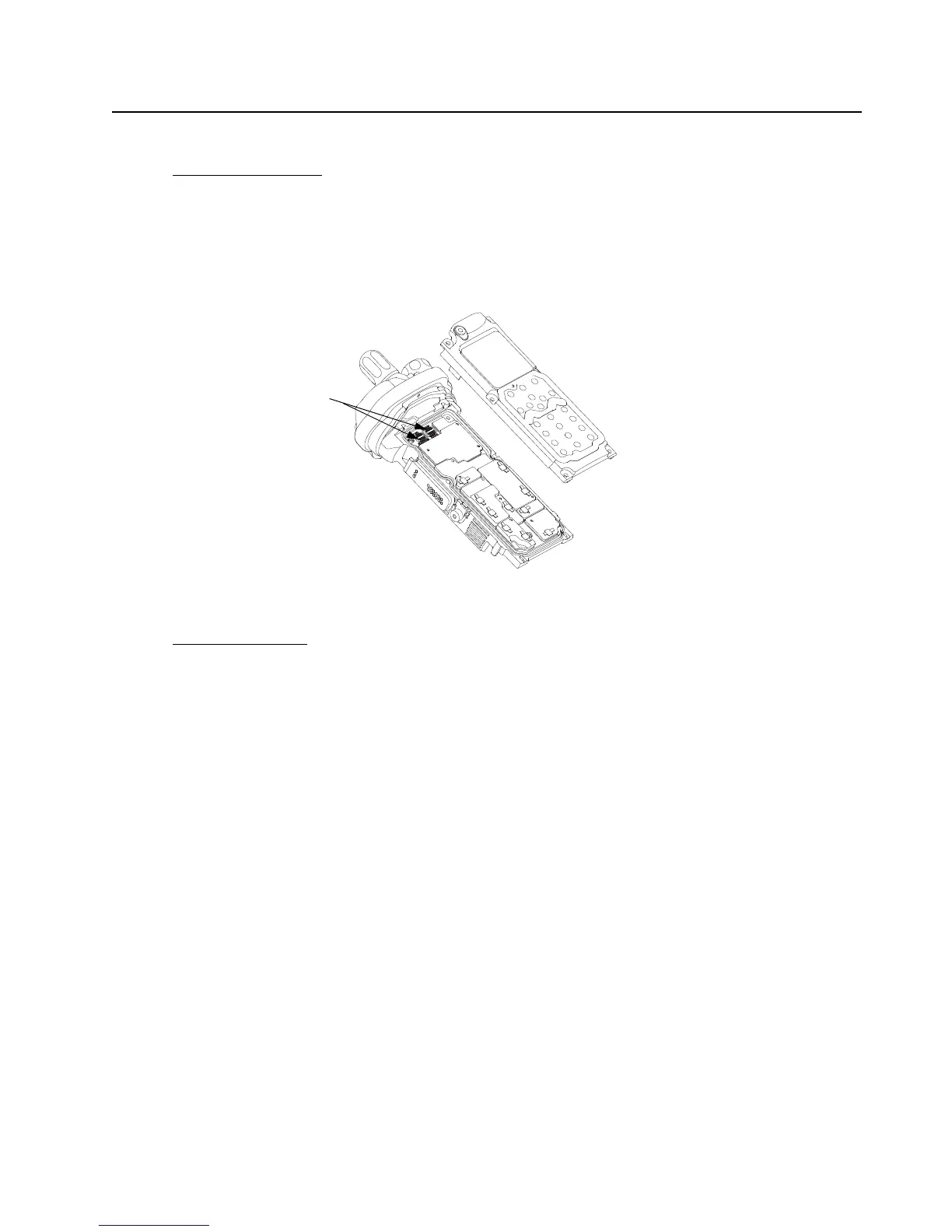

Figure 8-47. Place Back Chassis
Top Display version
:
1. Inspect the Back Chassis Assembly (N) seal for any debris or foreign material.
2. Place the Main Seal (54) onto the main chassis groove. Gently seat the seal around the
perimeter of the groove, ensuring the key feature is oriented as shown in Figure 8-47.
3. Set the Back Chassis Assembly onto the Main Chassis Assembly (E).
Connectors
