Disassembly/Reassembly Procedures: Serviceable Components of the Main Sub-Assemblies Sec 2: 8-23
8.8.2 Servicing Control Top Assembly (F)

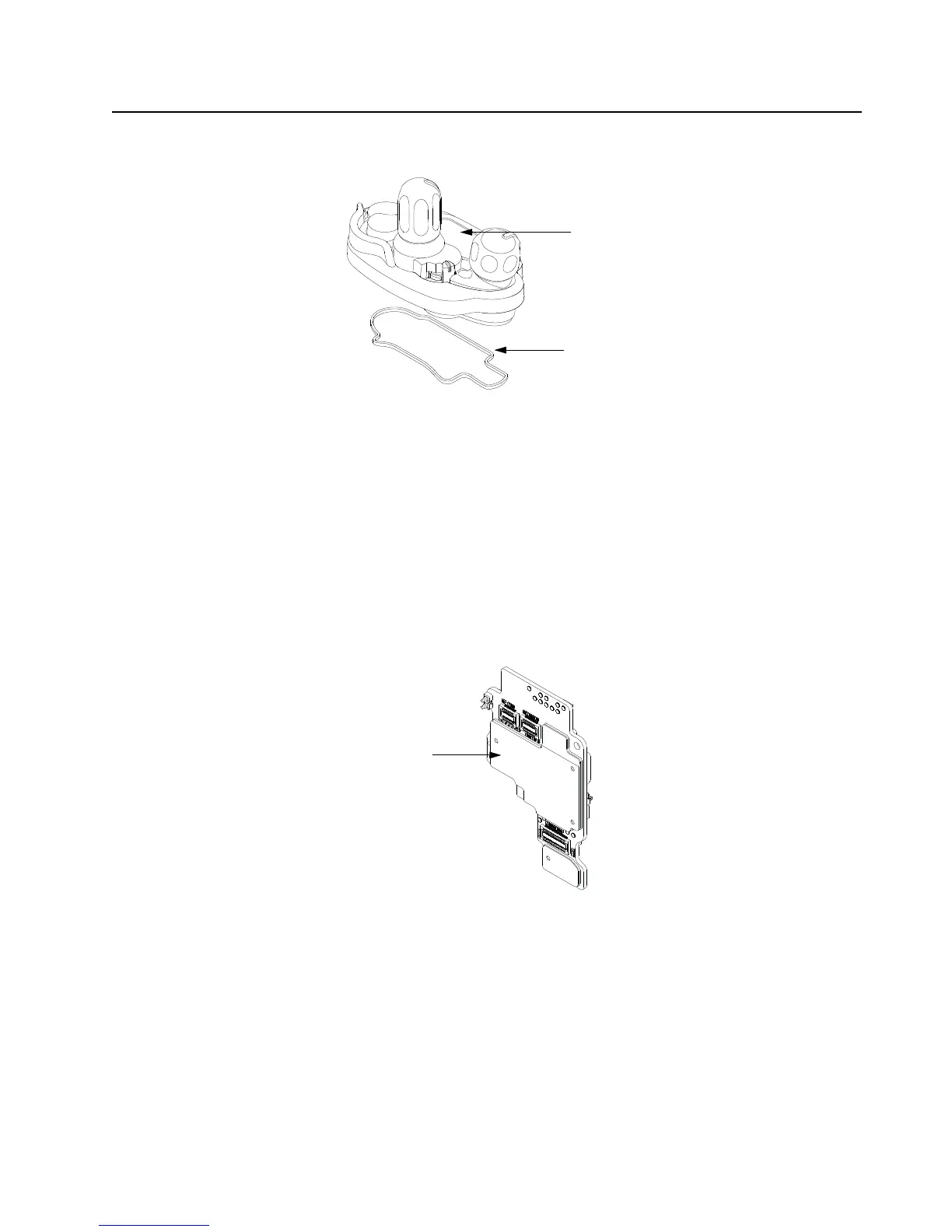

Figure 8-32. Control Top Assembly and Control Top Seal
8.8.2.1 Control Top Main Seal
1. Complete steps from Section 8.7.1. through Section 8.7.9. of section 8.7 on page 2:8-13.
2. Remove the Control Top Seal (22) with the Black Stick.
3. Replace the new seal into the groove provided in the Control Top Assembly's casting.
4. Ensure that seal is set properly and not stretched.
NOTE: There are no other serviceable components on the Control Top Assembly (F).
8.8.3 Servicing VOCON Board Assembly (D)
Figure 8-33. VOCON Board Assembly
NOTE: There are no serviceable components on the VOCON Board Assembly.
Control Top Seal (22)
Control Top Assembly (58)
