Sec 2: 8-32 Disassembly/Reassembly Procedures: Radio Reassembly
8.9 Radio Reassembly
This section contains instructions for reassembling the radio.
8.9.1 Reassemble the Main Sub Assemblies
8.9.1.1 Assemble Control Top Assembly (F) to Main Chassis Assembly (E)
.

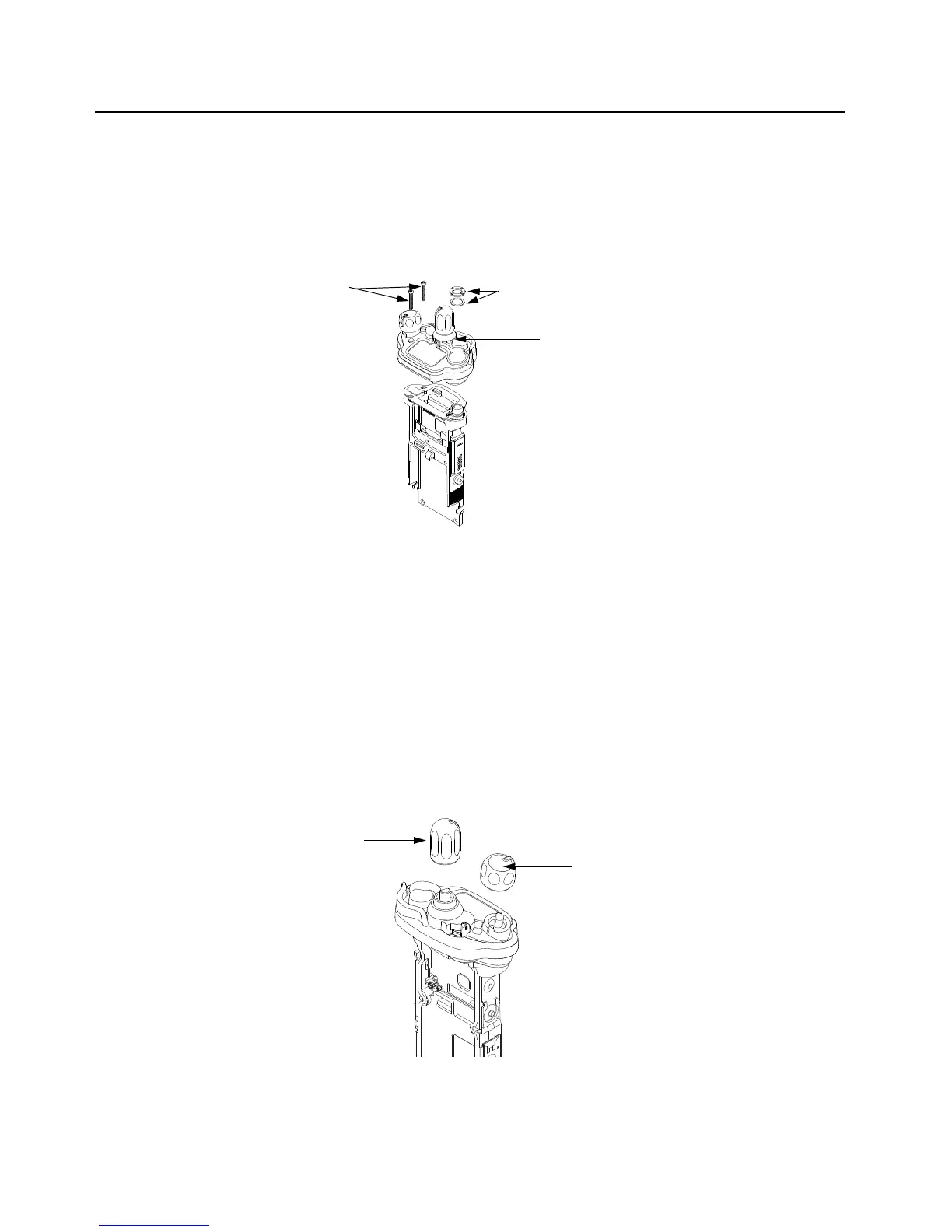

Figure 8-43. Control Top Bezel Assembly
1. Verify there are no surface irregularities such as scratches or indentations on both the Control
Top Main Seal Grove and the Seal's mating surface on the Main Chassis Assembly (15). Also
ensure that the Control Top Main Seal (22) and surrounding surfaces are free of debris and
other foreign material.
2. Verify Control Top Main Seal is properly seated into its groove and place Control Top
Assembly onto Main Chassis Assembly as shown in Figure 8-43.
3. Torque both screws with a Torx IP8 Bit and a torque Driver to 7 in-lbs.
4. Place Antenna Washer (26) over the antenna nut then torque Antenna Spanner Nut (27) with
the Antenna Spanner Bit to 16 in-lbs.
8.9.1.2 Assemble Knobs (G)
Figure 8-44. Knobs Assembly
Control Top Assembly (58)
Control Top Screws (57) Antenna Nut and Washer (26, 27)
Volume Knob (55)
Frequency Knob (56)
