Motorola APX 5000 - Figure 6-29. Bit Error Rate Screen (UHF2); Figure 6-30. Bit Error Rate Screen (700;800 Mhz)

Radio Alignment Procedures: Performance Testing Sec 1: 6-23

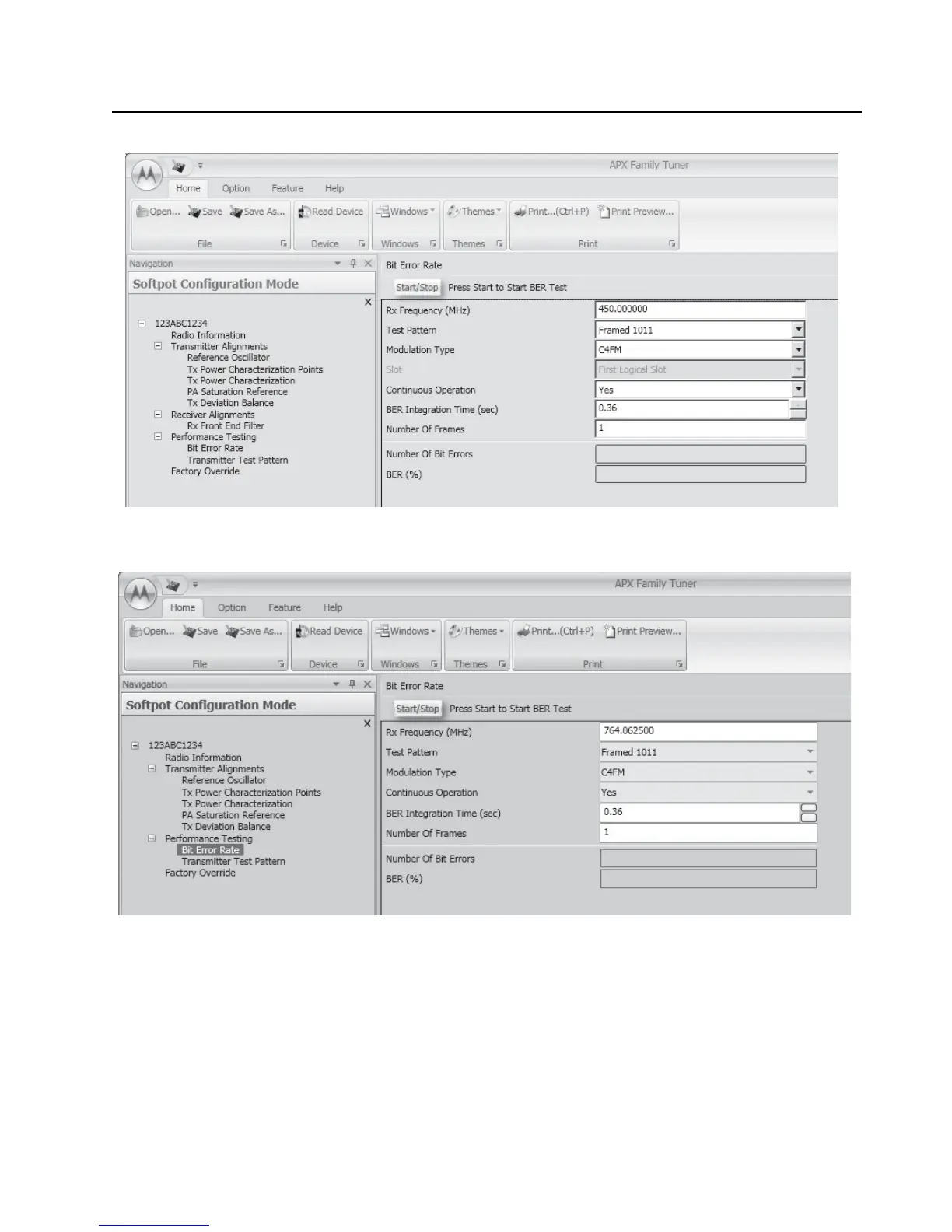

Figure 6-29. Bit Error Rate Screen (UHF2)
Figure 6-30. Bit Error Rate Screen (700/800 MHz)
3. Press Start/Stop button to begin or end BER testing.
