Disassembly/Reassembly Procedures: Radio Disassembly Sec 1: 8-19
8.7.8 Removal of the Knobs & Top Bezel Assembly (G)
A. Remove the Frequency Knob
To remove the Frequency Knob (28):
1. Hold the radio in one hand so that the top of the radio faces upward, and the front of the radio
faces you.
2. With the other hand, grasp the Frequency Knob and pull it upward, until it is free from its
shaft.
B. Remove the Volume Knob
To remove the Volume Knob (29):
1. Hold the radio in one hand so that the top of the radio faces upward and the front of the radio
faces you.
2. With the other hand, grasp the Volume Knob and pull it upward.
i. Remove the Torque Adder (30) with the Black Stick.
ii. Unscrew the Volume Spanner Nut (31) using the Volume Spanner Bit with a driver.
Remove the Volume Washer (32) below the nut.
iii. Unscrew the Antenna Spanner Nut (27) with the Antenna Spanner Bit and a driver.
Remove the Antenna Washer (26) below the nut as shown in Figure 8-26.

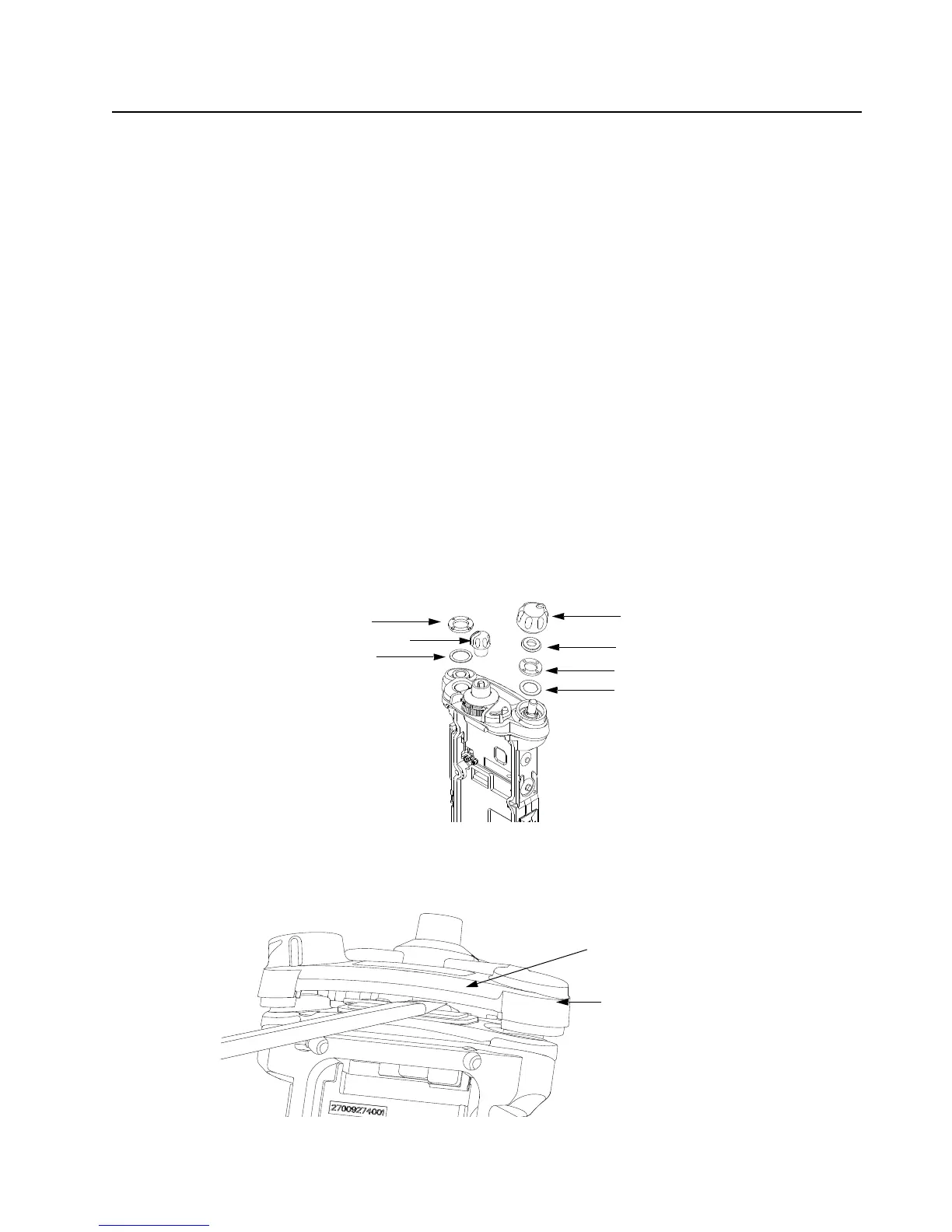

Figure 8-26. Remove Knobs and Fastener Hardware
iv. Gently lift the Control Top Bezel (24) and with the aid of the Black Stick, pop the
Secure Lever (25) off the Frequency shaft as shown in Figure 8-27.
Figure 8-27. Remove Control Top Bezel Assembly
Volume Knob (29)
Torque Adder (30)
Volume Spanner Nut (31)
Frequency Knob (28)
Antenna Spanner Nut (27)
Antenna Washer (26)
Volume Washer (32)
Secure Lever (25)
Control Top Bezel Assembly (24)
