Sec 2: 8-30 Disassembly/Reassembly Procedures: Serviceable Components of the Main Sub-Assemblies
8.8.9 Servicing Main Housing (M) – Top Display Version

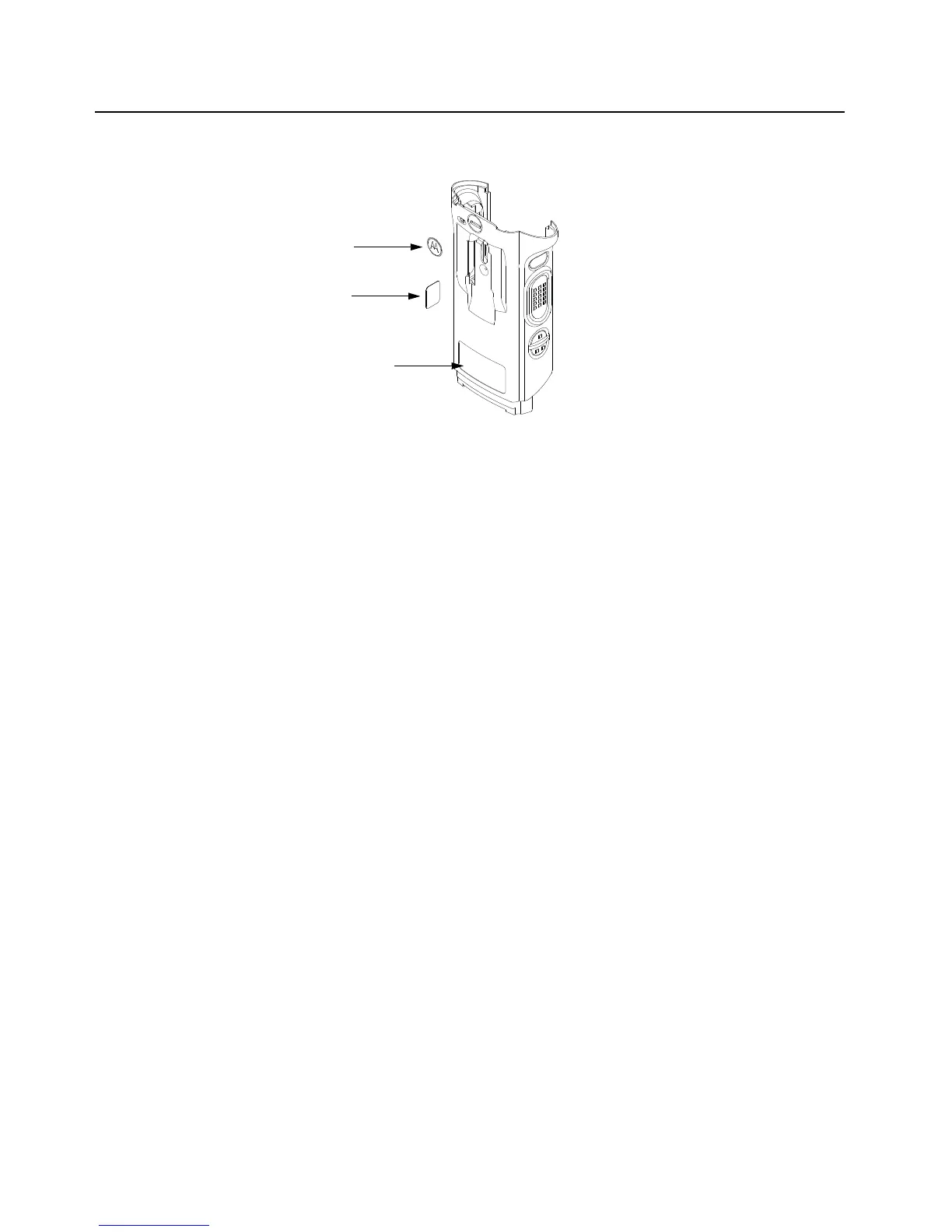

Figure 8-40. Main Housing Assembly (Top Display Version)
8.8.9.1 Medallion
NOTE: There is no need to remove any components in order to service the Medallion (2).
1. Scrape off the Medallion (2) with the Black Stick.
2. Clean the area once the Medallion is completely removed to ensure it is free of adhesive and
debris.
3. Remove the adhersive liner and place the Medallion in the recess.
4. Press the Medallion.
8.8.9.2 FM Label
NOTE: There is no need to remove any components in order to service the
FM Label.
1. Scrape off the FM Label (47) with the Black Stick.
2. Clean the area once the FM Label is completely removed to ensure it is free of adhesive and
debris.
3. Remove the adhesive liner and place the Label in the recess.
4. Press the Label.
NOTE: There are No Other serviceable components on the Main Housing Assembly (M).
Medallion (2)
Front Housing Assembly (1)
FM Label (47)
