Sec 1: 8-32 Disassembly/Reassembly Procedures: Radio Reassembly
8.8.12.1 Servicing Grille Label
NOTE: There is no need to remove any components in order to service the
Speaker Grille Label (39).
NOTE: Grille Label will be damaged during disassembly.
1. Remove the Grille Label by using the Black Stick to lift it. Be careful not to damage the
Speaker Grille Assembly's (38) surface.
2. Clean the area once the Grille Label is removed to ensure it is free of adhesive and debris.
3. Remove the backer of the new Grille Label and place in the appropriate location using a flat
tip tweezer.
NOTE: There are No Other serviceable components on the Speaker Grille Assembly (K).
8.9 Radio Reassembly
This section contains instructions for reassembling the radio.
8.9.1 Reassemble the Main Sub Assemblies
8.9.1.1 Assemble Control Top Assembly (F) to Main Chassis Assembly (E)
.

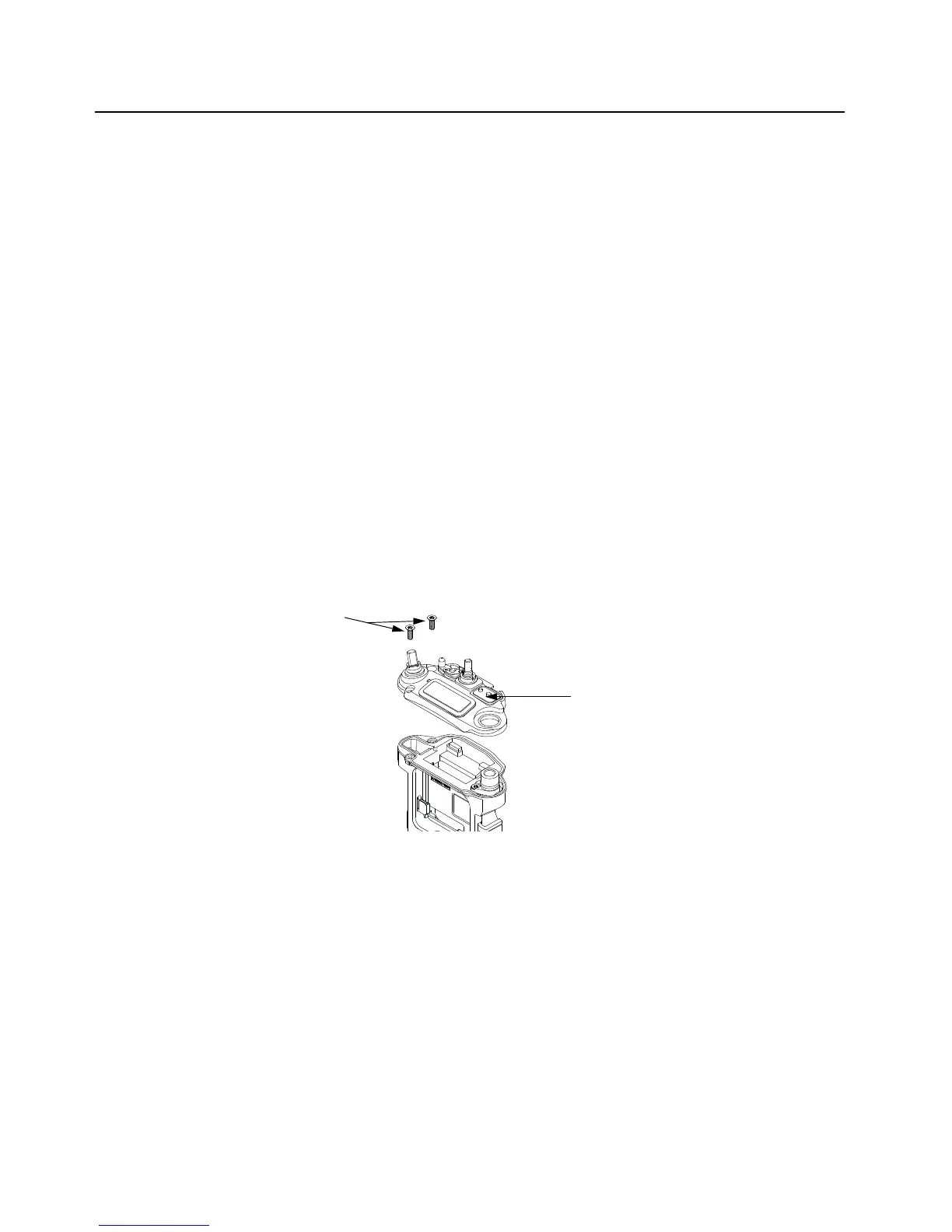

Figure 8-43. Control Top Bezel Assembly
1. Verify there are no surface irregularities such as scratches or indentations on both the Control
Top Main Seal Grove and the Seal's mating surface on the Main Chassis Assembly (15). Also
ensure that the Control Top Main Seal (22) and surrounding surfaces are free of debris and
other foreign material.
2. Verify Control Top Main Seal is properly seated into its groove and place Control Top
Assembly onto Main Chassis Assembly as shown in Figure 8-43.
3. Torque both screws with a Torx IP8 Bit and a torque Driver to 8 in-lbs.
Control Top Assembly (21)
Control Top Screws (44)
