7-18 Maintenance – EP350 (Limited Keypad Model): Torque List
7.6 Torque List
Table 7-16 lists the various screws by part number and description, followed by the torque values in
different units of measure. Torque all screws to the recommended value when assembling the radio.
7.7 Mechanical View and Parts List
7.7.1 EP350 (Limited Keypad without Channel Knob) Exploded View and Parts List

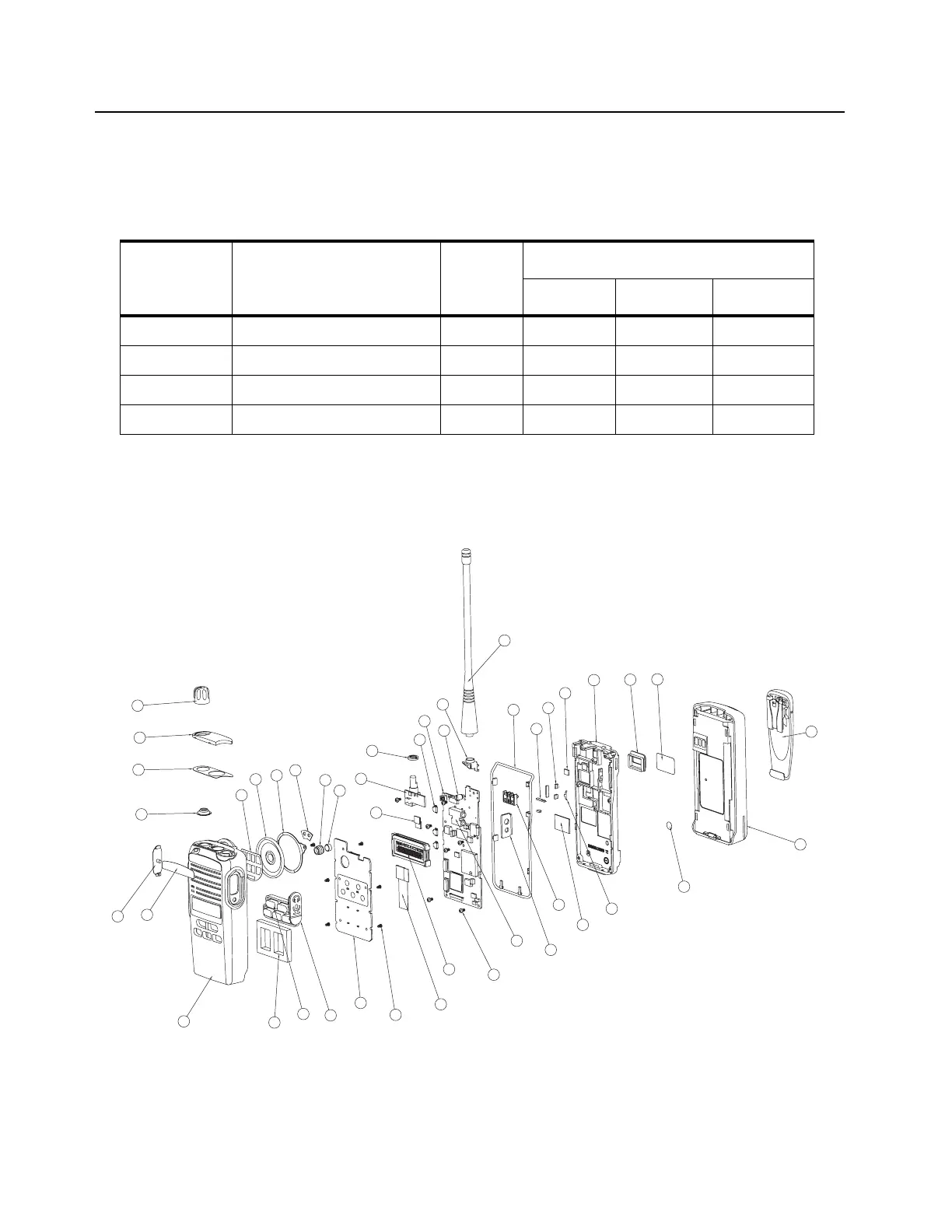

Figure 7-57. EP350 (Limited Keypad without Channel Knob) – Exploded View
Table 7-16. Torque Chart
Part Number Description Quantity
Torque
N-mIb-in kgf-cm
PMDN4099_R Retainer, Speaker, with screw 1 0.11±0.01 0.95±0.09 1.10±0.10
PMDN4119_R Screw, Tapping 5 0.13±0.01 1.17±0.13 1.35±0.15
PMDN4107_R Screw, Machine 7 0.23±0.01 2.04±0.13 2.35±0.15
PMDN4114_R Screw, RF Support 1 0.23±0.01 2.04±0.13 2.35±0.15
7
6
5
4
3
2
1
8
9
10
11
12
13
14
15
16
17
18
20
19
21
22
43
23
24
25
26 27
28
29
30
44
31
32
33
34
35
36
37
38
39
40
41
42
