Maintenance – EP350 (Full Keypad Model): Disassembling and Reassembling the Radio 6-9
d. Remove the speaker wire connector connecting the main circuit board and the internal
speaker on the front housing with the tweezers. (Refer Figure 6-21)
e. Lay the front housing down. Rotate the chassis sideways from the Front Housing
Assembly (1) and lay it down.
f. Push the latches on the Front Circuit Board (39) sideways to the right to release the
flexible cable from the connector. (Refer Figure 6-22).
Note:
The speaker wire and flexible cable connector connecting the Front Housing Assembly (1)
and the Chassis (25) prevent the two units from being completely separated

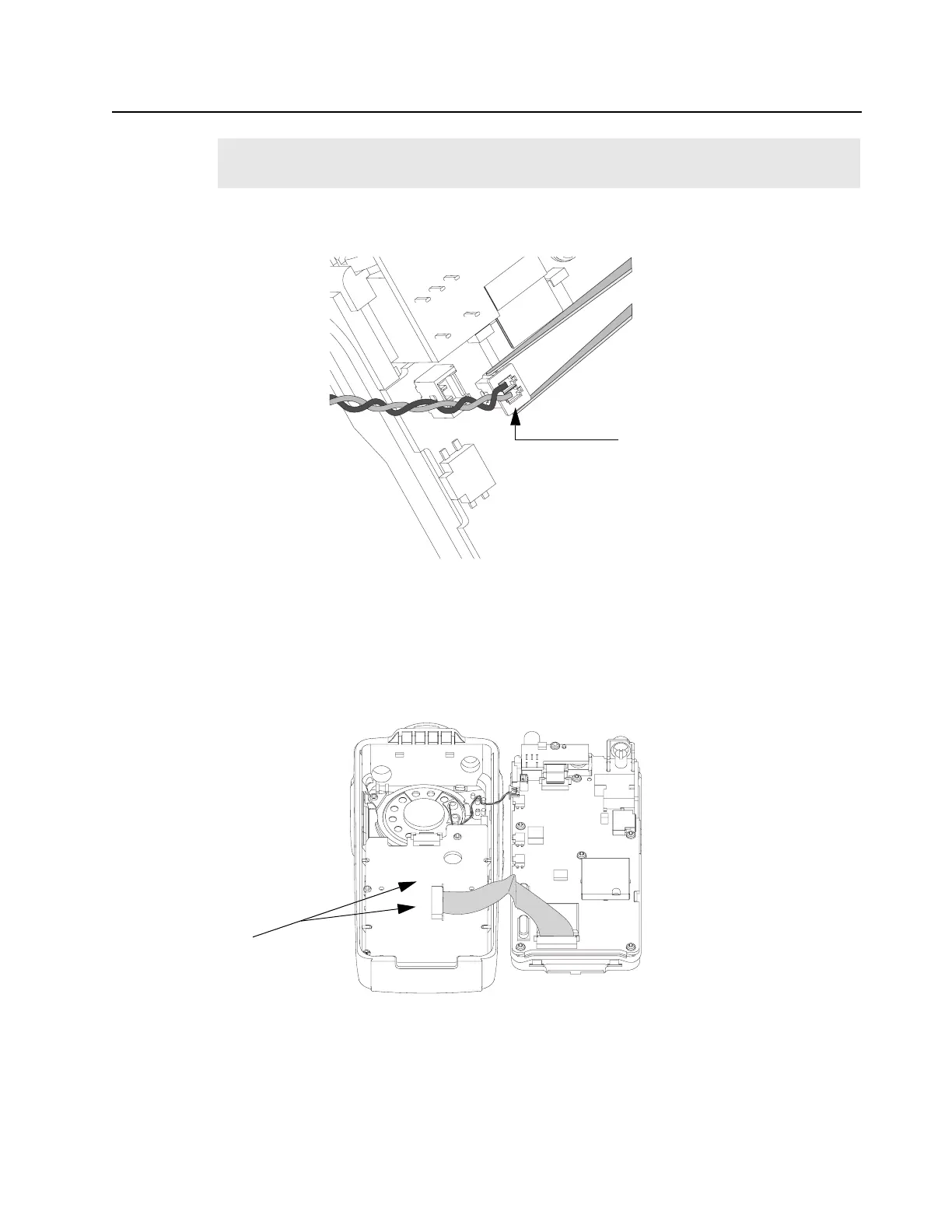

Figure 6-21. Speaker Wire Removal
Figure 6-22. Unlatch the Flexible Cable
Speaker Connector
Latches

Motorola EP350 Specifications

General

Channel Capacity	16 channels
IP Rating	IP54
Drop Resistance	1.2 meters
Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
Battery Life	Up to 11 hours
Power Supply	7.5 V (Nominal)
Waterproof	Splashproof
Dimensions	127.6 x 62 x 42 mm (with standard battery)
