Motorola EP350 Basic Service Manual

7-10 Maintenance – EP350 (Limited Keypad Model): Disassembling and Reassembling the Radio
f. Push the latches on the Front Circuit Board (39) sideways to the right to release the
flexible cable from the connector. (Refer Figure 7-43).
7.5.1.2 Chassis Assembly Disassembly
1. Remove the Accessory Bracket (33).
2. Remove the nut (16) on the On Off Volume Knob Shaft with the Crab Eye Nut Opener.
3. Remove the screw holding the Sub Circuit Board (15) to the Chassis (25) with a Phillips
screwdriver.
4. Push the latches on the Main Circuit Board (18) to release the Flexible Cable (37) from the
connector.
5. Remove the Sub Circuit Board from the Chassis. (Refer Figure 7-44).
6. Remove the six screws (35) holding the Main Circuit Board to the Chassis with a Phillips
screwdriver. Remove the RF Support Screw (19) with a flat head screwdriver.

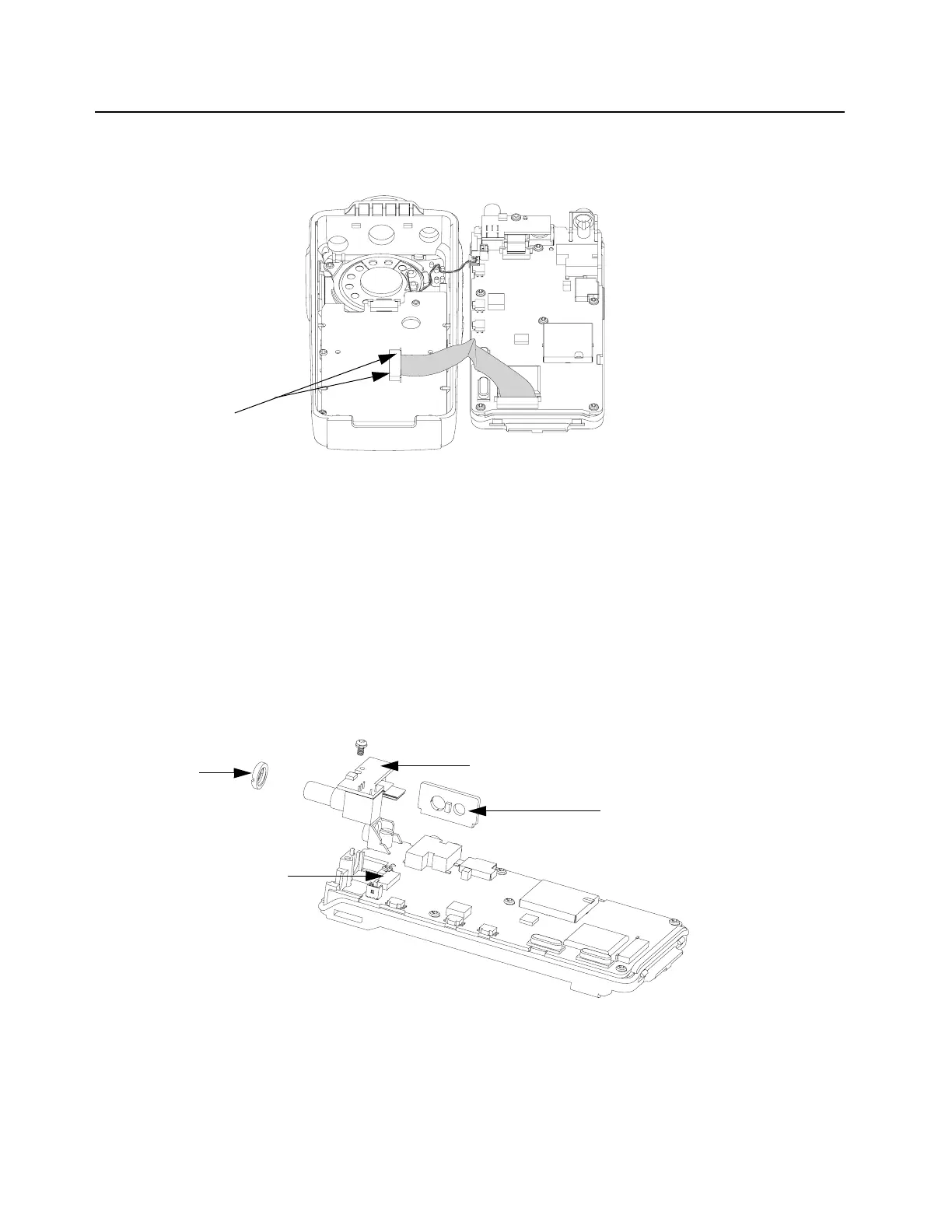

Figure 7-43. Unlatch the Flexible Cable
Figure 7-44. Sub-Circuit Board and Accessory Bracket Removal
Latches
Nut
Accessory Bracket
Sub Circuit Board
Latch

Motorola EP350 Specifications

General

Channel Capacity	16 channels
IP Rating	IP54
Drop Resistance	1.2 meters
Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
Battery Life	Up to 11 hours
Power Supply	7.5 V (Nominal)
Waterproof	Splashproof
Dimensions	127.6 x 62 x 42 mm (with standard battery)
